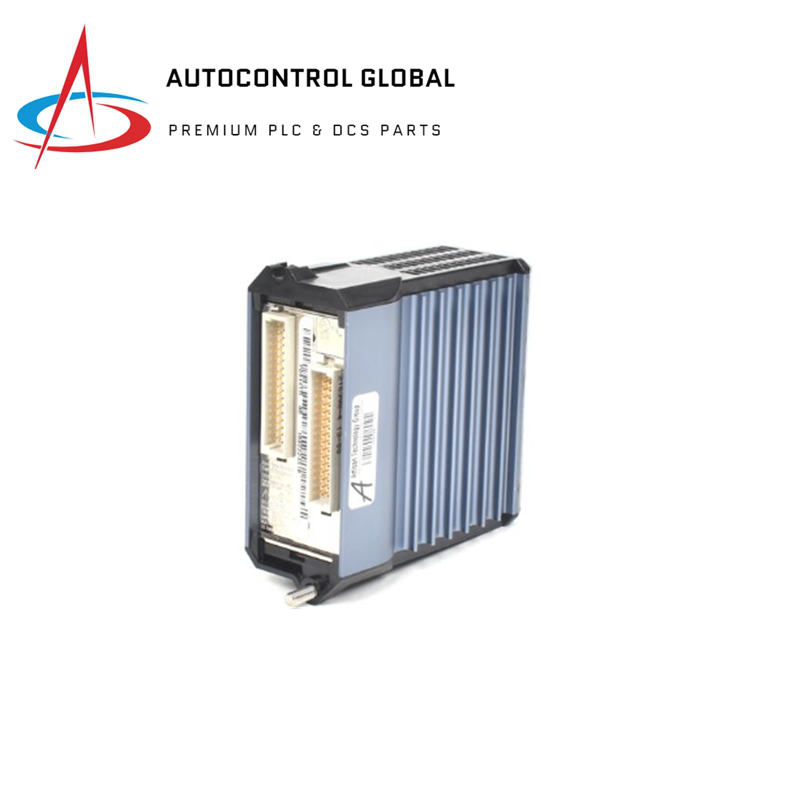

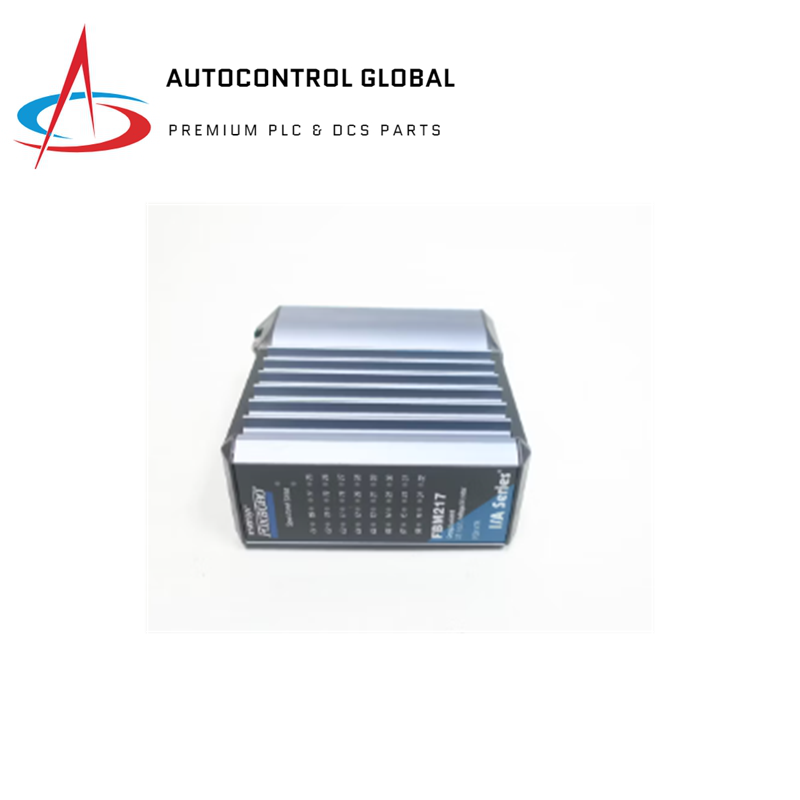

Foxboro FBM217 P0914TR Group Isolated Input Module

Description

The FBM217 P0914TR provides 32 input channels, each accepting a 2-wire input from a DC voltage source. It utilizes associated termination assemblies (TAs) to handle discrete inputs of under 60 V AC, 120 V AC / 125 V DC, or 240 V AC. The module performs necessary signal conversion to interface electrical input signals from field sensors to the Module Fieldbus.

Features

• 32 discrete input channels
• Supports discrete input signals at voltages of:
  • 15 to 60 V DC
  • 120 V AC / 125 V DC
  • 240 V AC
• Single or redundant modules
• Rugged design suitable for enclosure in Class G3 (harsh) environments
• Executes Discrete Input or Ladder Logic programs

Technical Specifications

• Input Voltage: 24V DC
• Output Voltage: 4 - 20 mA
• Communication Interface: RS485
• Dimensions: 100 mm × 50 mm × 30 mm
• Weight: 2 kg
