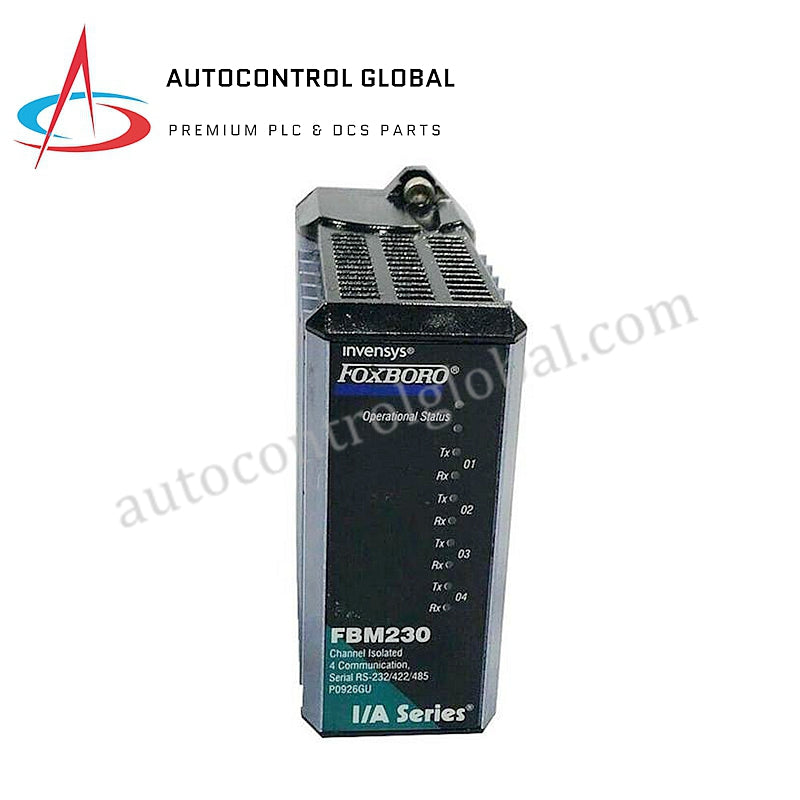

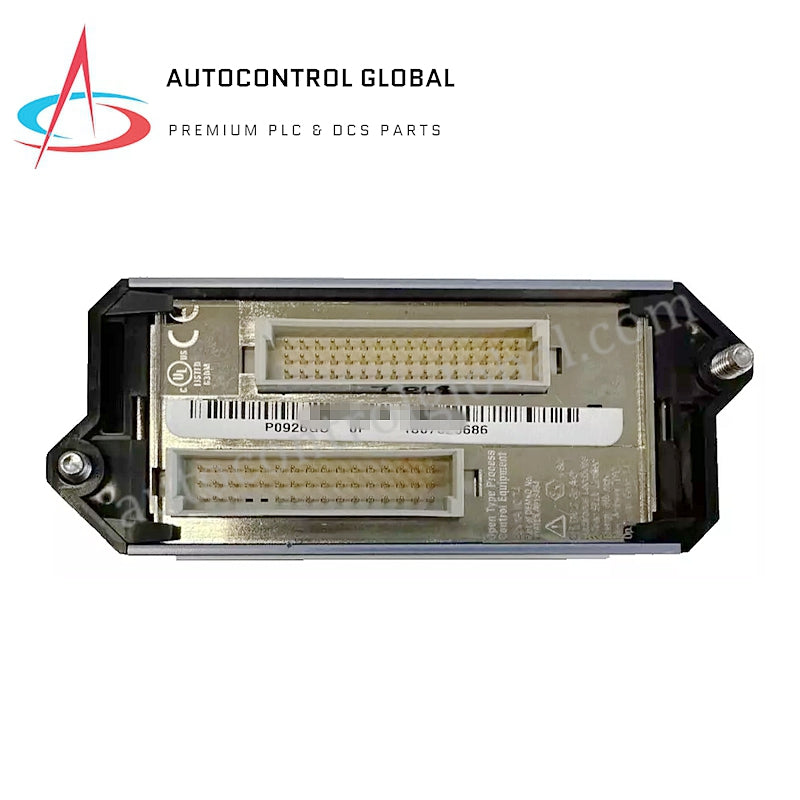

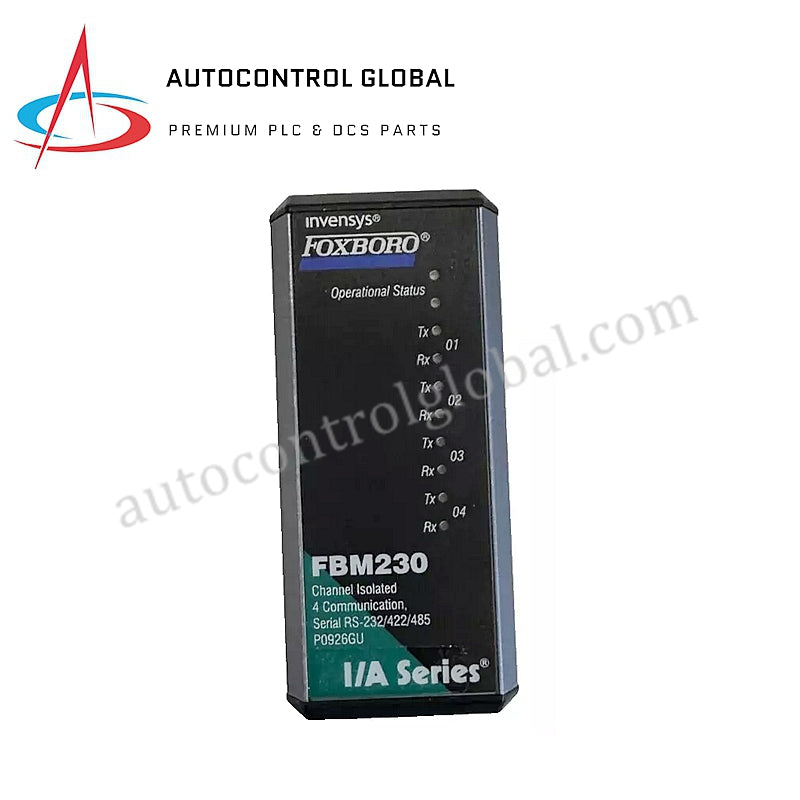

Foxboro FBM230 Field Device System Integrator Module
Manufacturer: Foxboro
-
Part Number: FBM230
Condition：New with Original Package
Product Type: Field Device System Integrator Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
Foxboro FBM230
Field Device System Integrator Module
General Information
-
Module Fieldbus Communication:
Communicates via redundant 2 Mbps Fieldbus with associated FCM100Et, FCM100E, FCP270, or FCP280
Specifications
Power Requirements:
-
Input Voltage Range (Redundant): 24 V DC +5%, -10%
-
Consumption: 7 W (maximum)
-
Heat Dissipation: 7 W (maximum)
Operating Conditions:
-
Temperature: -20 to +70°C (-4 to +158°F)
-
Relative Humidity: 5 to 95% (noncondensing)
Storage Conditions:
-
Temperature: -40 to +70°C (-40 to +158°F)
-
Relative Humidity: 5 to 95% (noncondensing)
Contamination:
-
Suitable for use in Class G3 (Harsh) environments per ISA Standard S71.04, based on exposure testing per EIA Standard 364-65, Class III
