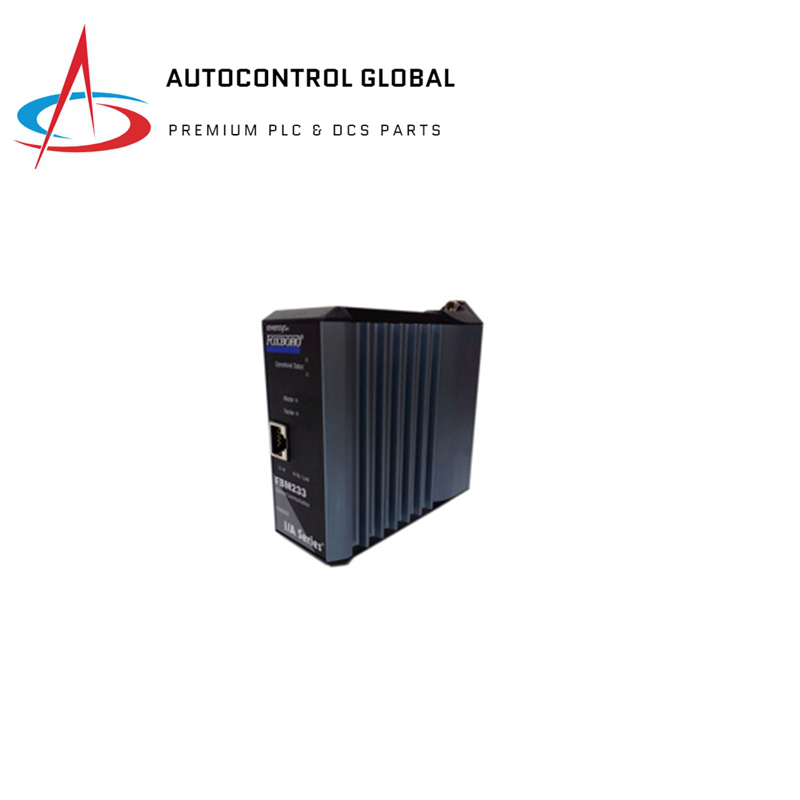

Foxboro FBM233 P0926GX Ethernet Communication

Description

The FBM233 P0926GX is a Field Device System Integrator (FDSI) module designed to provide an Ethernet interface between single or dual-ported field I/O devices and the Foxboro Evo system. This module enables seamless communication and integration between field devices and the control system.

Features

• Communication:Redundant Ethernet network transmission at 10 Mbps or 100 Mbps to/from field devices.
• Connectivity:Capable of communicating with up to 64 field devices.
• I/O Software Driver:Downloadable from a library of available protocols.
• DCI Block Connections:Supports up to 2000 DCI block connections.
• Reliability:
  Offers high reliability, precision, and speed for digital signal input and output.
• Programmability:Supports programmable logic control.
• Protection Features:Includes over-current, over-voltage, and short-circuit protection.

Specifications

• Input Channels:82
• Input Voltage Range:24 VDC
• Input Signal Level Range:0-5 VDC
• Input Signal Sampling Rate:12 kHz
• Operating Temperature Range:-40°C to +70°C
• Storage Temperature Range:-40°C to +85°C
• Operating Humidity Range:10% to 95% (non-condensing)
• Power Supply:24 VDC
• Power Current:50mA (typical)
