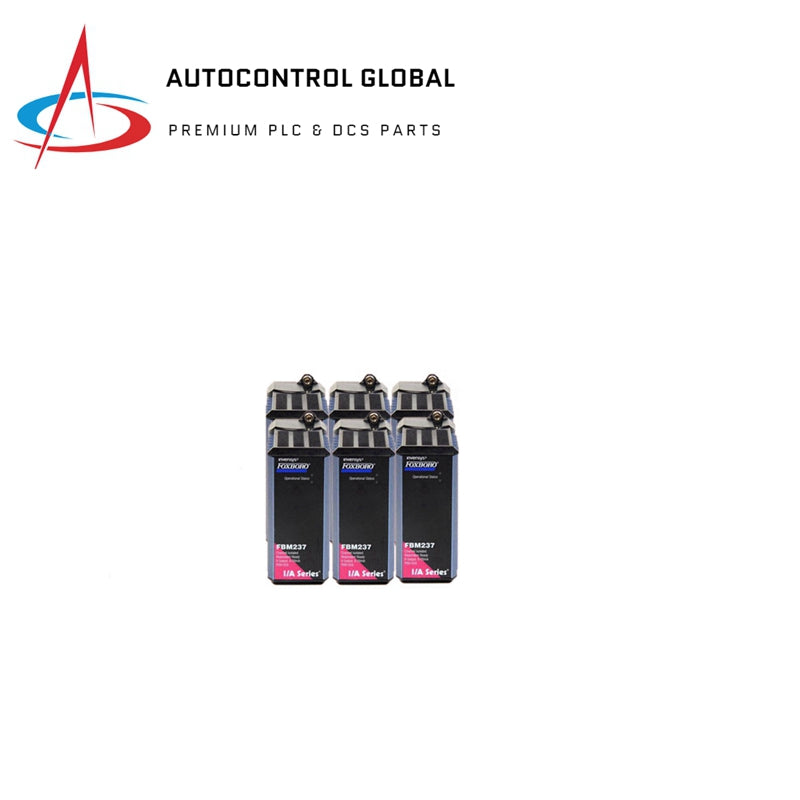

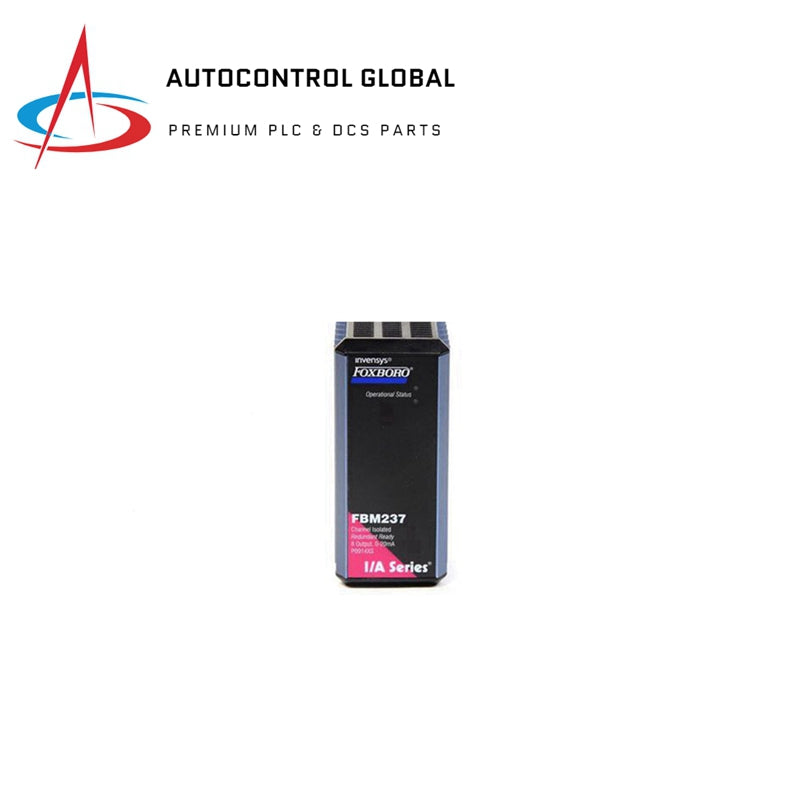

Foxboro FBM237 P0914XS I/A Series Channel Isolated 8 Output Module

Description

The FBM237 P0914XS is equipped with eight 0-20 mA analog output channels. Each channel is galvanically isolated from other channels and ground. The module can operate independently as a single unit or in a redundant pair configuration, where field output signals are wired to a common termination assembly. Each module in the redundant pair independently maintains the output at its specified value.

Features

• Eight 20 mA DC analog output channels
• Galvanically isolated output channels
• Single or redundant module configuration
• Rugged design suitable for enclosure in Class G3 (harsh) environments
• Termination Assemblies (TAs) available for local or remote field wiring connection
• TA for use with Output Bypass Station to maintain outputs during maintenance operations
• 3-tier termination assembly for per channel internally and/or externally loop-powered transmitters
• Electrically compatible with standard HART signals

Technical Specifications

• Voltage: 24 VDC
• Current: 200 mA
• Output Impedance: 250 ohms
• Isolation Voltage: 3000 VDC
• Temperature Range: -40 to 70 degrees Celsius
• Dimensions: 4.3 x 2.1 x 0.7 inches
