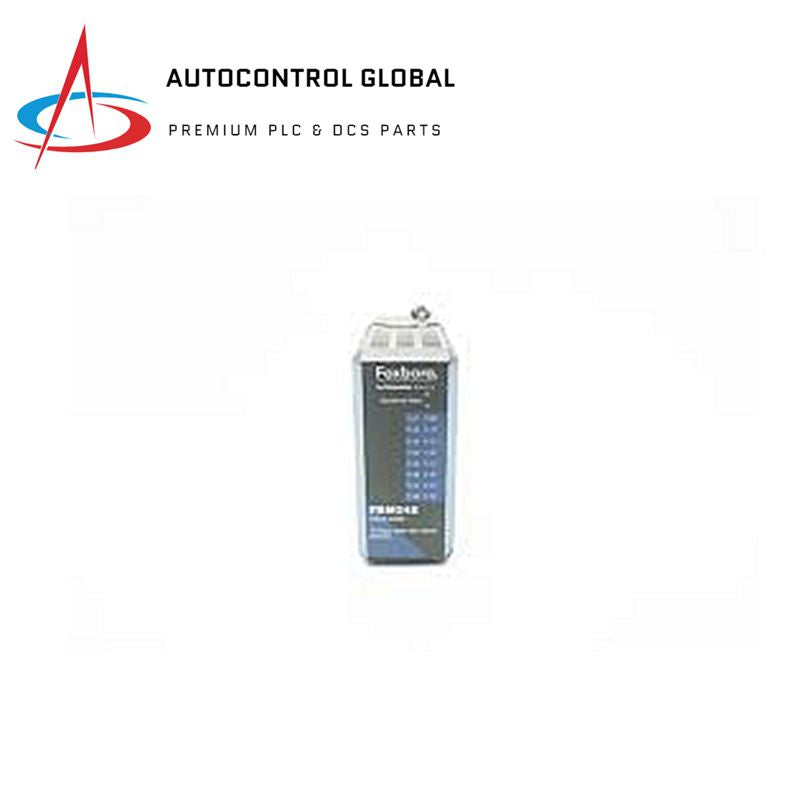

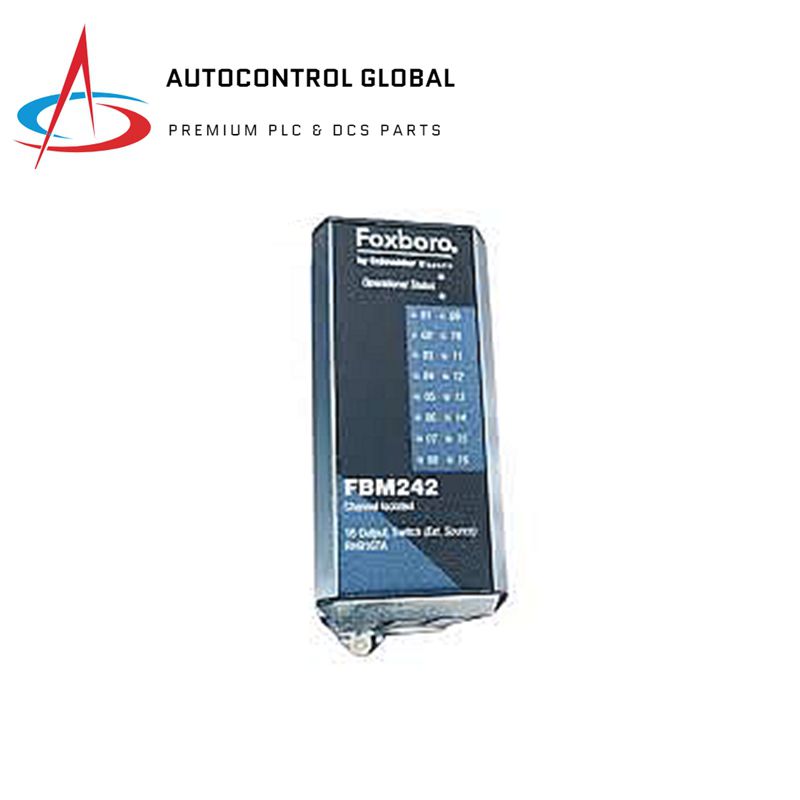

Foxboro FBM242 RH916TA Discrete Output Module

Description

The FOXBORO FBM242 RH916TA is an externally sourced, discrete output interface module. It contains 16 discrete output channels that are compatible with voltages and currents commonly found in industrial plants. The module interfaces electrical output signals from a control processor to the field devices and provides a Fail-Safe Configuration option for the outputs.

Features

• Sixteen discrete outputs
• Supports discrete output signals at voltages of:
  • 15 to 60 V DC
  • 120 V AC/125 V DC
  • 240 V AC
• Each input and output is galvanically isolated
• Rugged design suitable for harsh environments (Class G3)
• Executes Discrete I/O or Ladder Logic program
• Various Termination Assemblies (TAs) with current limiting devices, fuses, and relay outputs
• Visual indicators with LEDs for operational status
• Easy removal/replacement without removing field device termination cabling, power, or communication cabling
• Fieldbus communication with redundant 2 Mbps module Fieldbus
• Modular baseplate mounting for up to four or eight Fieldbus Modules.

Technical Specifications

• Input Voltage Range (Redundant): 24 V DC +5%, -10%
• Consumption (Maximum): 3 W at 24 V DC
• Heat Dissipation: 6.5 W at 24 V DC (with all outputs at 1.5 A each)
• Dimensions: 20 cm x 6.2 cm x 15 cm
• Weight:0.4 kg.
