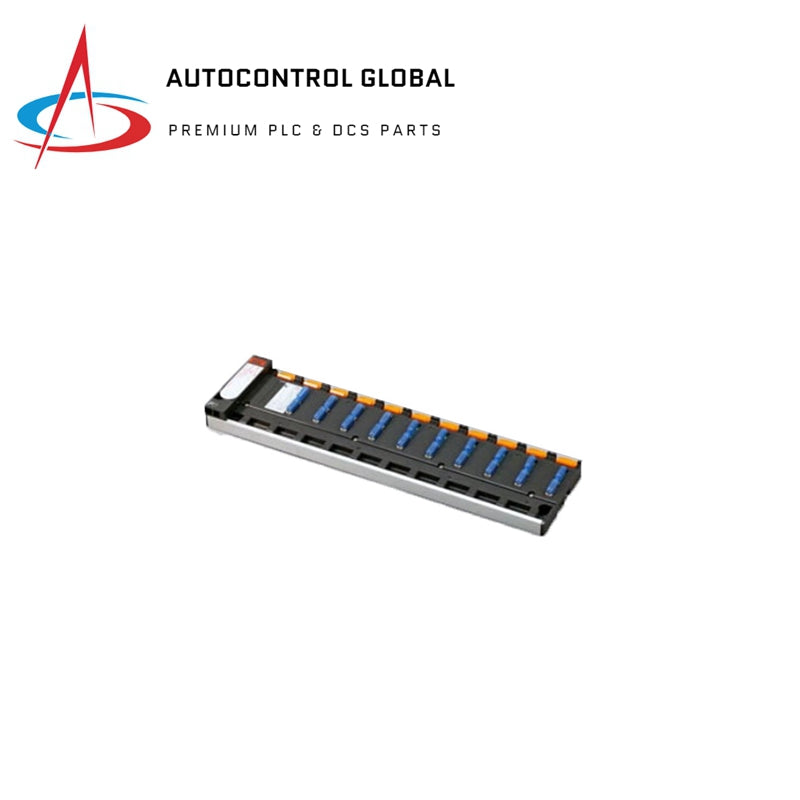

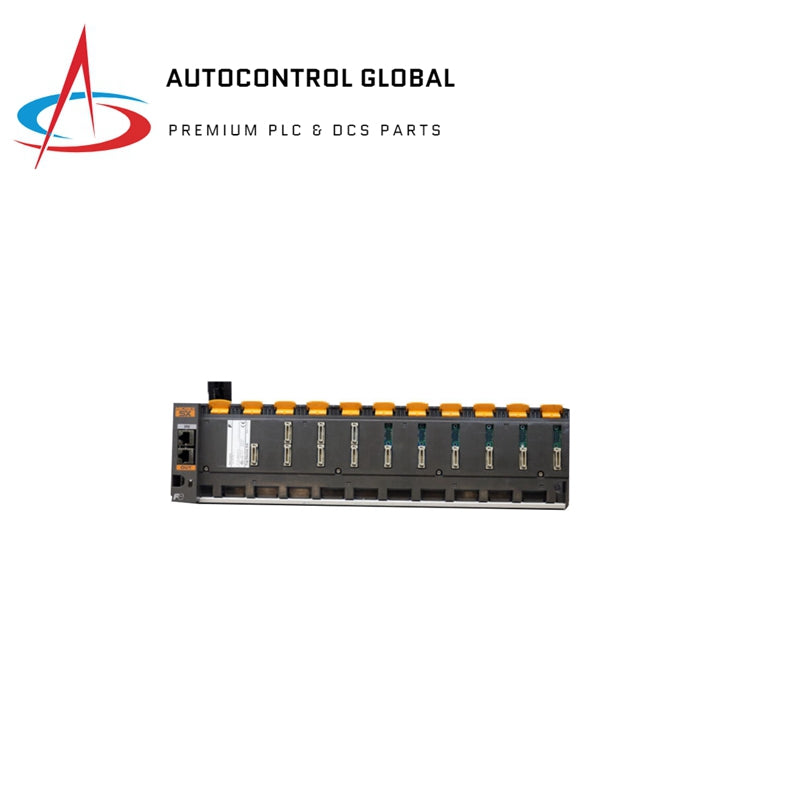

Fuji Electric NP1BS-11 Base Board Chassis

Key Features and Specifications:

• Type: Standard base board
• Number of Slots: 11 slots
• Maximum Number of Modules: 9 (excluding the power supply)
• Internal Current Consumption: 60 mA or less
• Mass: Approximately 720 g
• Dimensions: 90 x 130 x 245 mm (W x H x D)
• Power Supply: 24 VDC, 2.1 A
• Maximum Current: 5 A
• Maximum Input Voltage: 30 VDC
• Operating Temperature: -10 to 55°C
• Storage Temperature: -25 to 70°C
• Humidity: 10 to 95% RH (non-condensing)
• Weight: 1.5 kg
