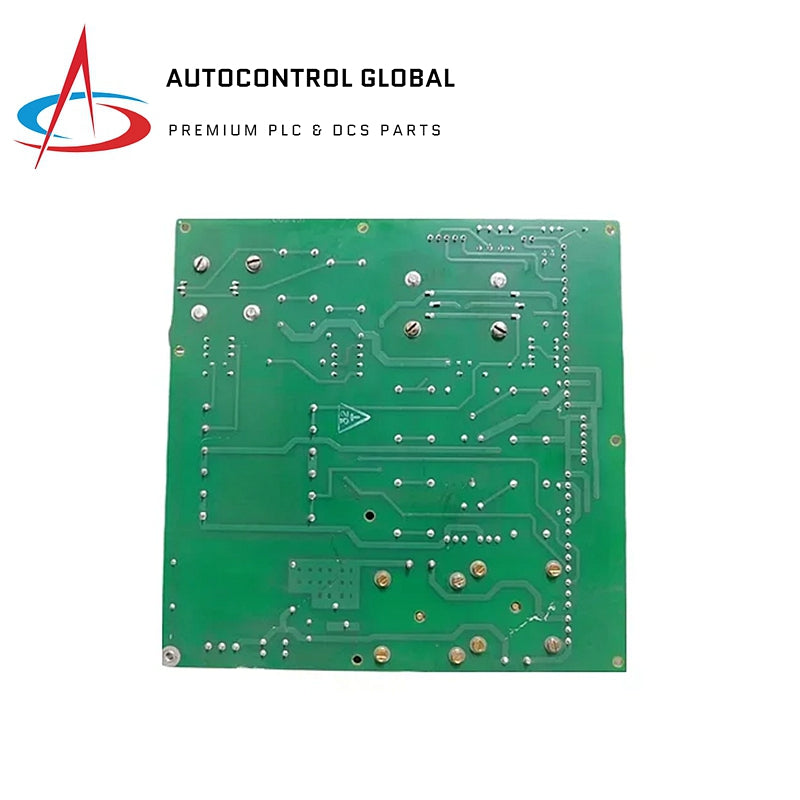

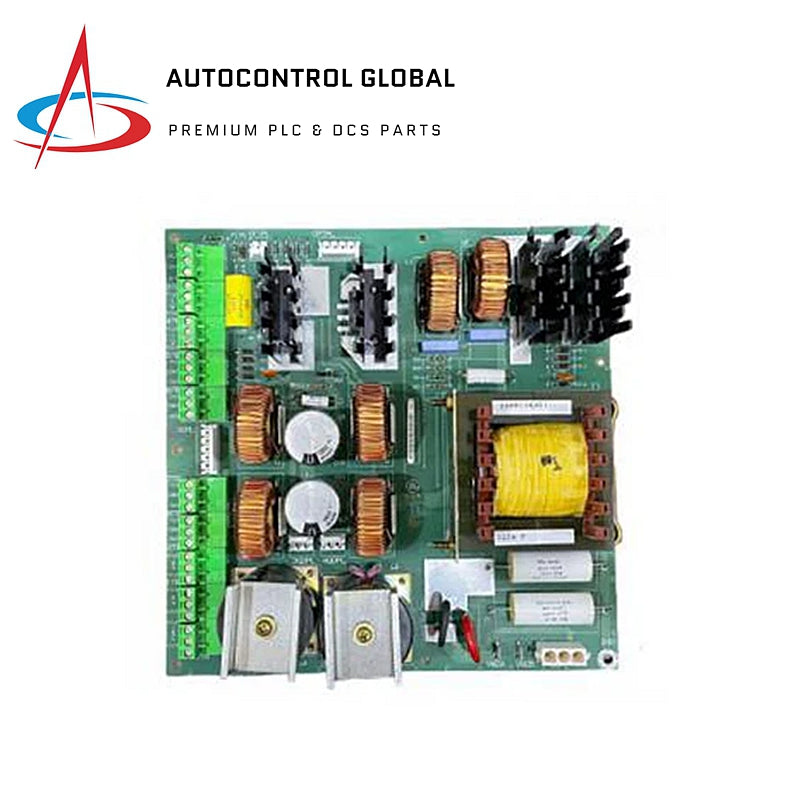

GE Fanuc | DS200EXPSG1ACB | Power Supply Board Mark V

Overview

The GE Fanuc DS200EXPSG1ACB is a Power Supply Board designed for use in GE's Mark V turbine control systems. It ensures reliable power distribution and stable operation of critical control components.

Features

• Input Voltage: 85-264 VAC
• Power Output: 125 VDC, 65 Amps max
• Operating Frequency: 47-63 Hz
• Efficiency: 90%
• Overload Protection: 105-150% of rated output power
• Leakage Current: <0.75 mA at 240 VAC
• Dielectric Strength:
  • 1500V AC (input to output)
  • 1500V AC (input to case)
  • 500V DC (output to case)
• MTBF: 250,000 hours at 25°C
• Cooling: Natural convection
• Operating Altitude: Up to 2000 meters
• Noise Level: 35 dB(A) max

Dimensions and Weight

• Length: 254 mm (10 inches)
• Width: 203 mm (8 inches)
• Height: 76 mm (3 inches)
• Weight: 1.2 kg (2.65 lbs)
