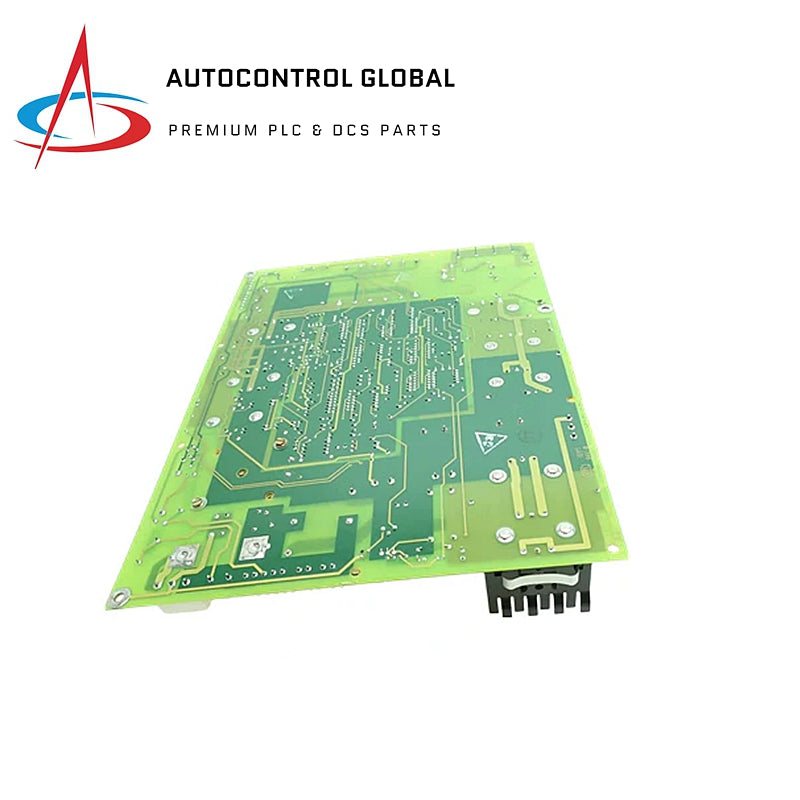

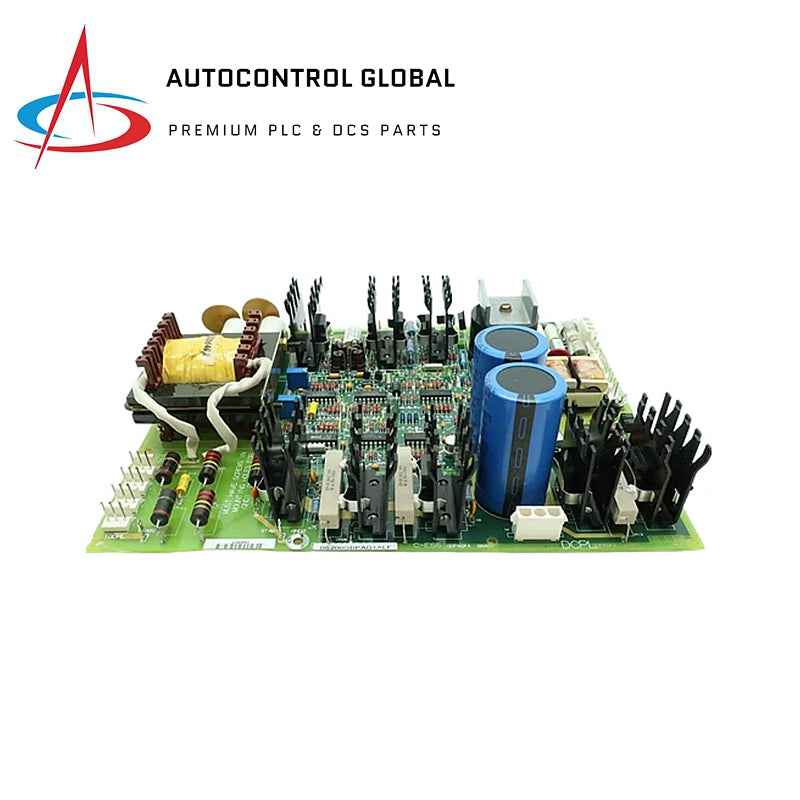

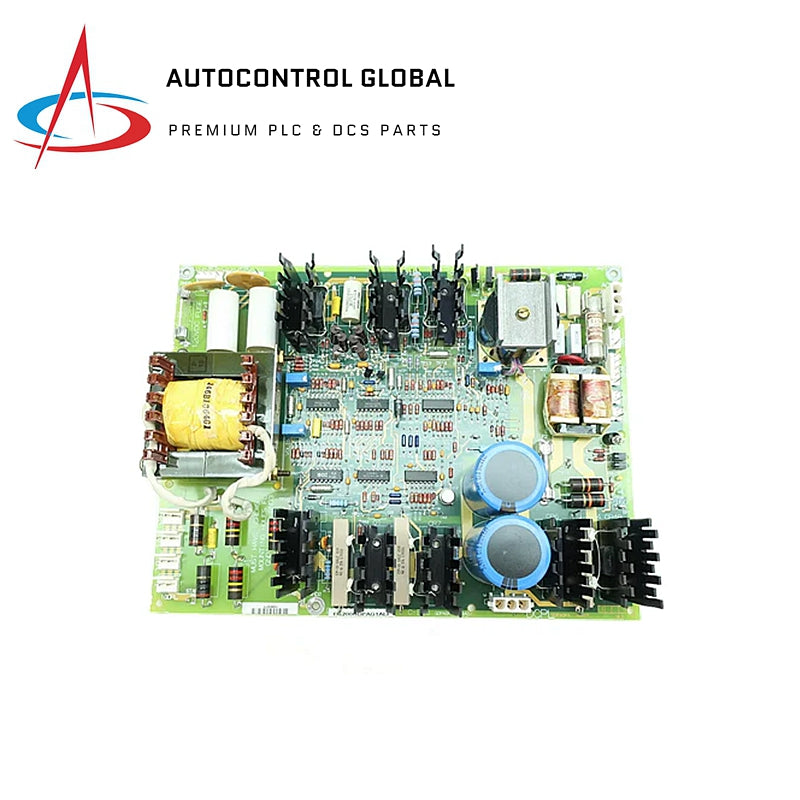

GE Fanuc | DS200GDPAG1ALF | High Frequency Power Supply Board

Overview

The DS200GDPAG1ALF is a high-performance power supply board designed for GE's EX2000 excitation system. It provides a reliable and efficient power solution, delivering 600-700 watts of power to various components within the system. This board is versatile, capable of operating on both AC and DC power sources.

Key Features

• High Power Output: Delivers 600-700 watts of power to drive system components.
• Dual Power Input: Accepts both AC and DC power sources for flexibility.
• Efficient Design: Optimized for high efficiency and low power loss.
• Reliable Operation: Incorporates robust components and protective circuitry.

Functional Description

The DS200GDPAG1ALF performs the following key functions:

• Power Conversion: Converts input power (AC or DC) into a stable DC voltage.
• High-Frequency AC Generation: Generates high-frequency AC power for efficient power transfer.
• Output Voltage Regulation: Regulates output voltage to meet specific requirements.
• Overcurrent and Overvoltage Protection: Protects the board and connected components from damage due to excessive current or voltage.
• Control Signal Processing: Processes control signals to adjust power output as needed.

LED Indicators

• PWR IN (CR1 and CR2): Indicates power input status.
• READY (CR37 and CR39): Indicates operational readiness.
• 120 V DC FUSE (N2): Indicates the status of the 120V DC fuse.
• HI VOLT SHORT (N1): Indicates a potential high-voltage short circuit.
