GE Fanuc DS200IMCPG1CCB | IGBT P/S Board

Manufacturer: GE Fanuc
Part Number: DS200IMCPG1CCB
Condition：New with Original Package
Product Type: IGBT P/S Board
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Overview

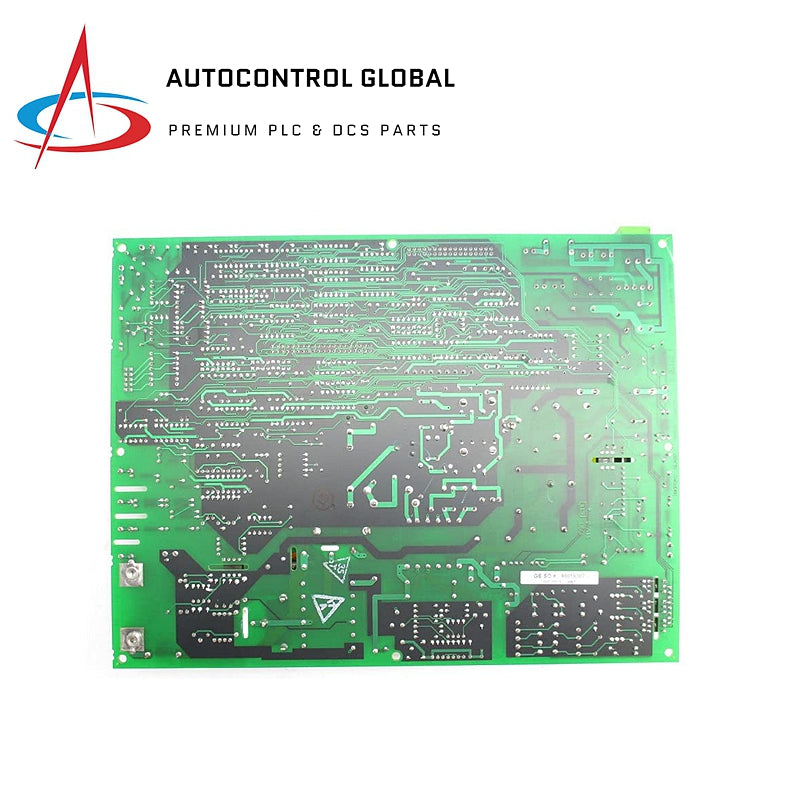

The GE Fanuc DS200IMCPG1CCB is an IGBT Power Supply Interface Board designed for use within the Mark V Speedtronic series, part of General Electric's legacy product line for turbine control systems.

Technical Specifications

Product Type: Power Supply Interface Board
OEM: General Electric
Series: Mark V Speedtronic
Functional Part Number: DS200IMCPG1CCB
Applications: Steam, wind, and gas turbine automated drive assemblies

Hardware Specifications

Connector Types:
- 1PL input connector (typically connects to the SDCC drive control board)
- Multiple vertical pin connectors and stab-on connectors
Terminal Strip: Small three-position terminal strip in the lower right-hand corner
Protection Components:
- Fuses (replaceable)
- Metal oxide varistors for voltage protection
Other Components:
- Heat sinks
- Resistor network arrays
- Transformers, transistors, ICs, resistors, capacitors
- Jumper switches

Indicators and Mounting

LED Indicators: Two located near the center of the board for status indication
Mounting Options: Drilled holes along edges and corners for secure mounting

Maintenance Tips

Fuse Replacement: Ensure power is off before replacing blown fuses, and test the board with a current tester before replacing components
