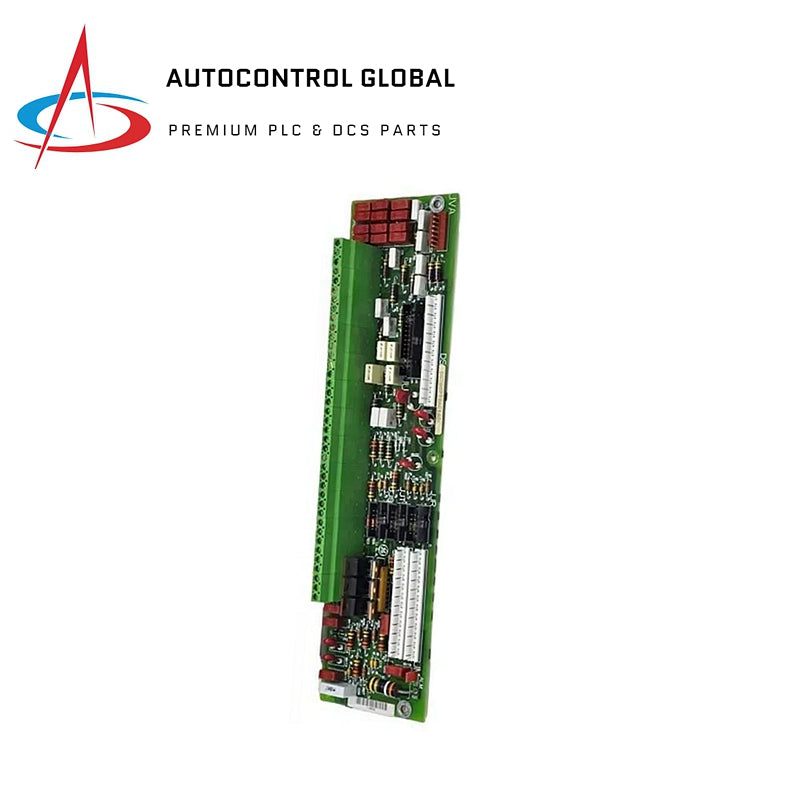

GE Fanuc | DS200PTBAG1AEC | Termination Board

Overview

The GE Fanuc DS200PTBAG1AEC is a termination board designed for the Speedtronic Mark V gas turbine control system. It centralizes connections for field wiring, ensuring reliable and organized communication within the control system.

Features

• Centralized Connectivity: Organizes field wiring for efficient connections
• High Reliability: Built for durability in industrial applications
• Signal Wire Connections: Offers multiple posts for additional wiring needs

Technical Specifications

• Terminal Blocks: Two blocks, each with 72 terminals for signal wires
• Connectors: Three 10-pin connectors for integration with other components
• Signal Wire Terminal Posts: Six posts available for extra signal wire connections
• Dimensions: 3 inches high, 11.5 inches wide
• Mounting Hole: One mounting hole for secure installation

Applications

• Gas turbine control systems
• Power generation
• Industrial automation
