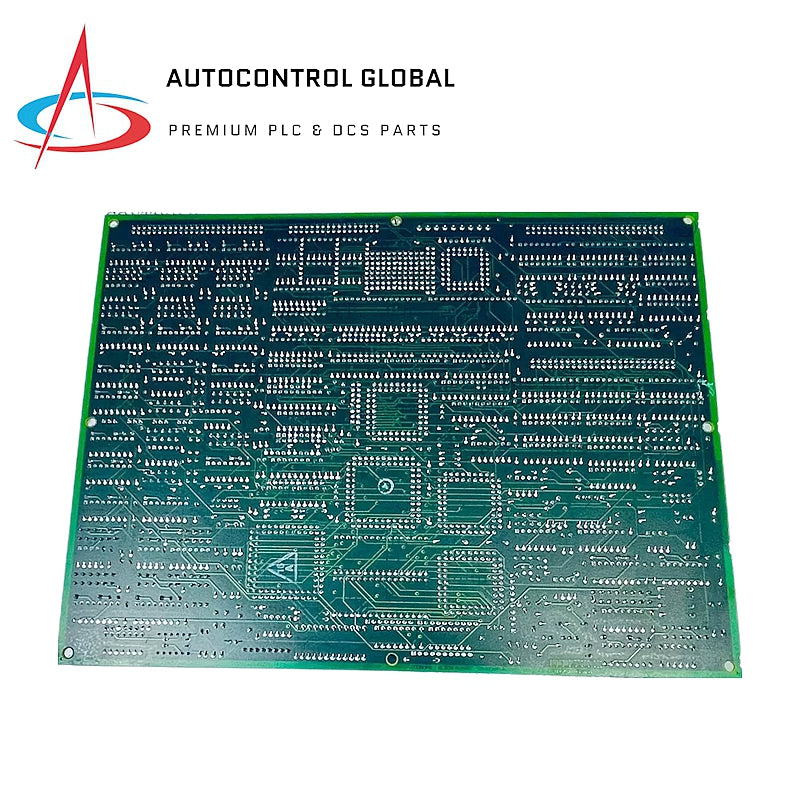

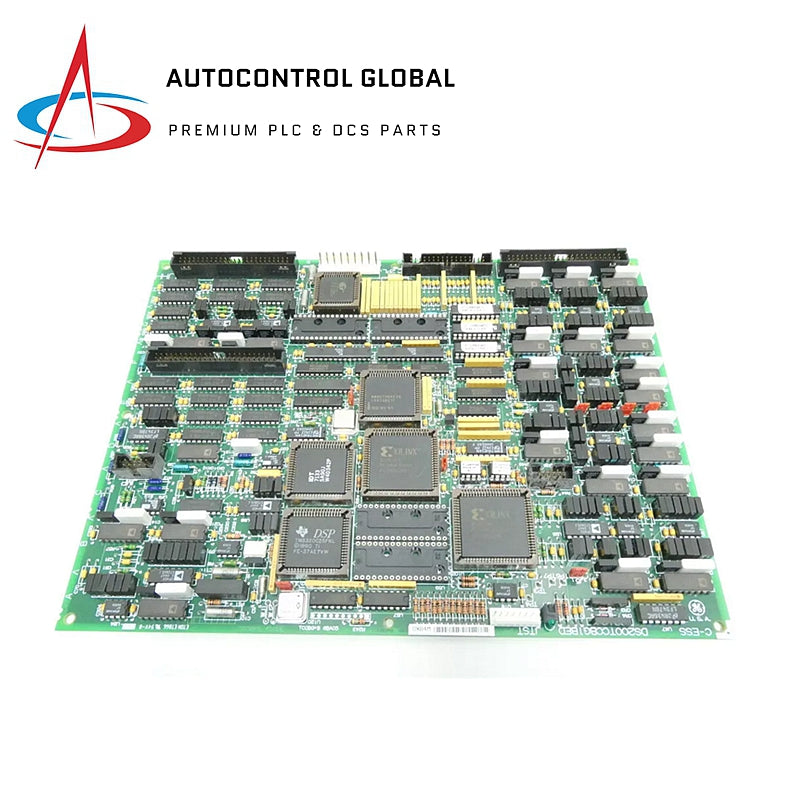

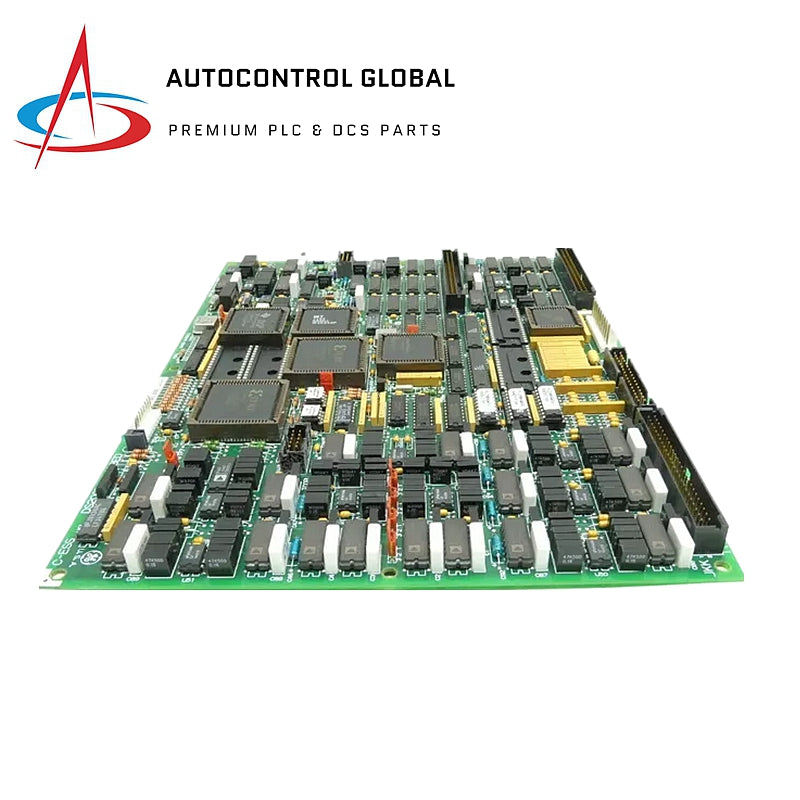

GE Fanuc | DS200TCCBG1BED | Common Extended Analog I/O Board

Overview

• Part Number: DS200TCCBG1BED
• Manufacturer: General Electric
• Series: Mark V
• Product Type: Common Extended Analog I/O Board
• Power Requirements: +5 V dc

Functionality

• Purpose: Provides scaling and conditioning for additional analog I/O signals
• Application: Used in GE Speedtronic Control Systems
• Signals Processed: 4-20 mA/0-1 mA inputs, RTDs, generator and bus voltage inputs, line current input

Connectors

• 2PL: Distributes power from the TCPS board
• 3PL: Data bus for transferring conditioned signals to COREBUS
• JHH: Carries 4-20 mA/0-1 mA inputs from the TBCB terminal board
• JII: Carries RTD input signals from the TBCB terminal board
• JMP: Carries PT and CT signals from the TCEB board
• JKK, JTEST, TCQPL: Typically not used

Configuration

• Hardware: Jumpers J1 to J5 for generator and bus voltage monitoring, line current monitoring, and serial port connection
• Software: I/O configuration constants for RTDs, mA inputs, and voltage/current settings entered in the I/O Configuration Editor on HMI
