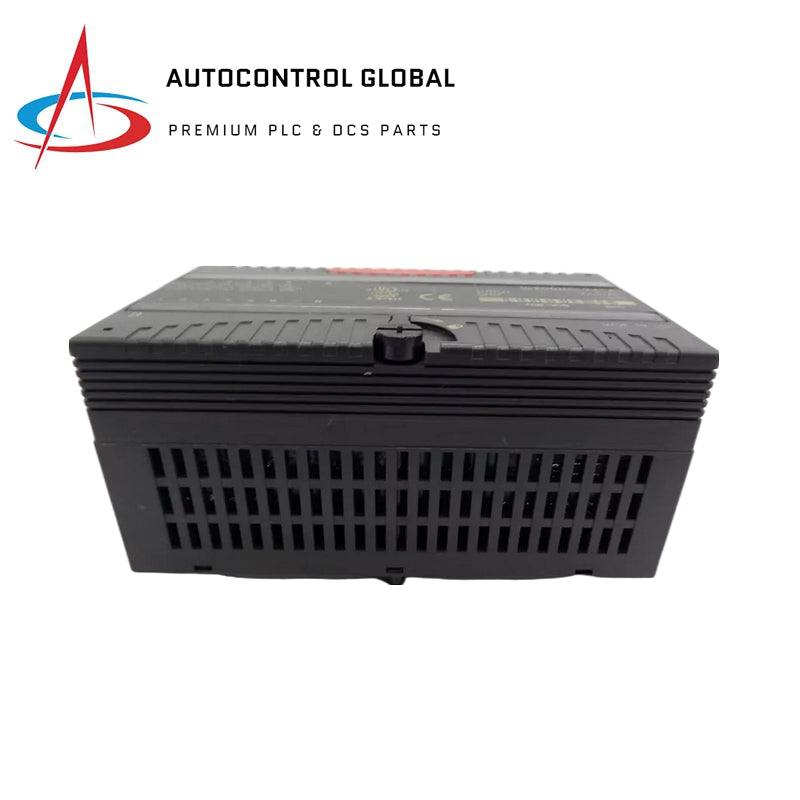

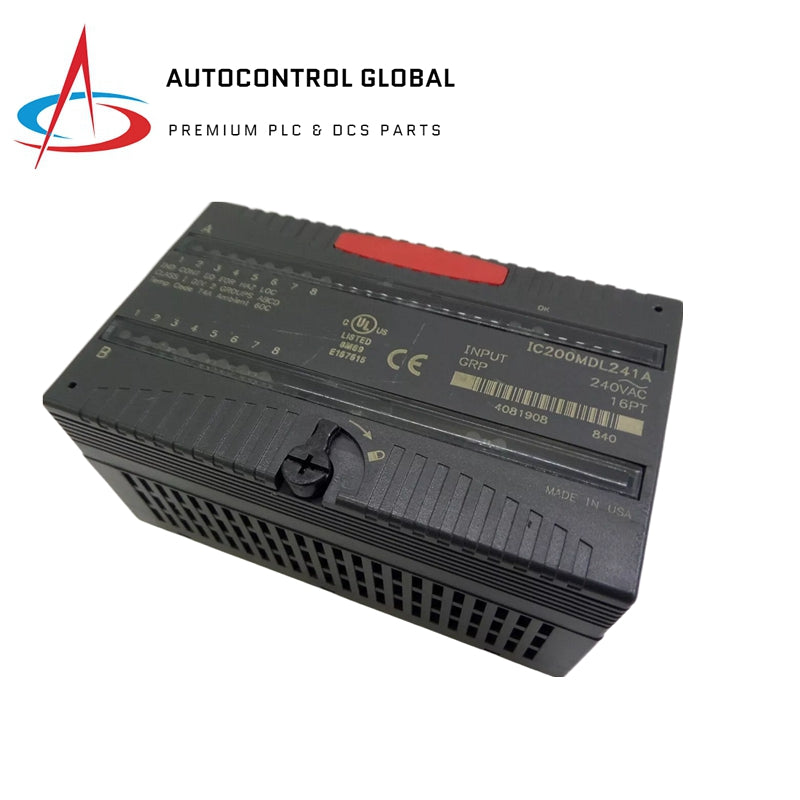

GE Fanuc | IC200MDL241 | Discrete Input Module

  • Manufacturer: GE Fanuc

  • Part Number: IC200MDL241

  • Condition：New with Original Package

  • Product Type: Discrete Input Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

  • Part Number: IC200MDL241
  • Product Name: Discrete Input Module
  • Series: VersaMax

General Features

  • Application: VersaMax I/O and Control System
  • Input Type: 16 non-isolated discrete inputs
  • Group Isolation: 1500 V (maximum isolation between groups)
  • Built-in Power: Yes, draws power from the backplane
  • LED Indicators: 16 individually numbered LEDs for input status, 1 backplane LED

Electrical Specifications

  • Operating Voltage: 240 VAC (nominal), 0-264 VAC (range)
  • On-State Voltage: 155-264 VAC
  • Off-State Voltage: 0-40 VAC
  • Backplane Current Consumption: 110 mA max at 5.0 V

Physical Specifications

  • Dimensions: 110 x 66.8 x 50.0 mm (4.3 x 2.63 x 1.9 inches)

Performance

  • Maximum Response Time (ON): 1 cycle
  • Installation: DIN Rail-mounted, snap-in terminals for easy wiring and hot swapping
