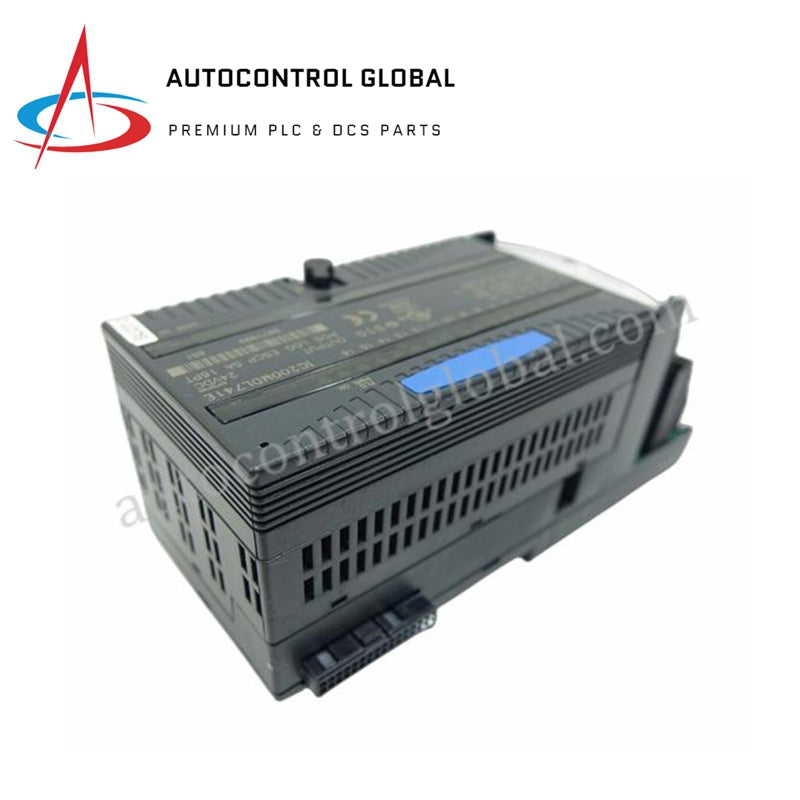

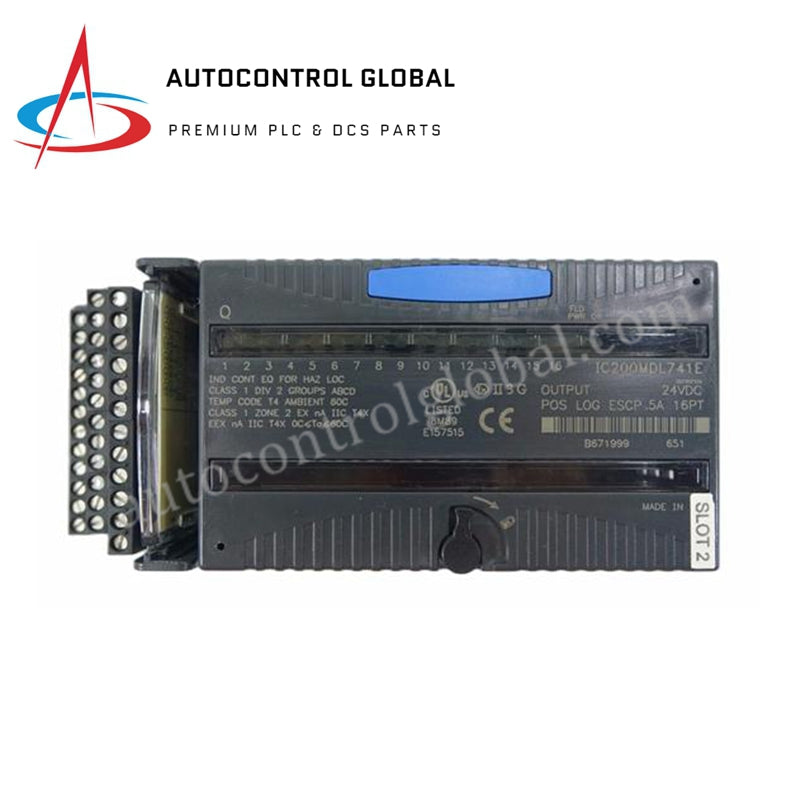

GE Fanuc IC200MDL741 Discrete Output Module
Manufacturer: GE Fanuc
-
Part Number: IC200MDL741
Condition：New with Original Package
Product Type: Discrete Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The IC200MDL741 is a discrete output module from GE Fanuc, designed to provide 16 output points in a single group configuration. It operates with a nominal output voltage of 24 VDC and is suitable for controlling external devices with overcurrent and short-circuit protection.
Specifications
-
Part Number: IC200MDL741
-
Number of Outputs: 16
-
Output Voltage: 18 to 30 VDC, 24 VDC nominal
-
Group to Group Isolation: None
-
Point to Point Isolation: None
-
LED Indicators:
-
One LED per point
-
"OK" and "FLD PWR" LEDs
-
Backplane Current Consumption: 75 mA at 5 VDC
-
Protection:
-
Short circuit protection
-
Overcurrent protection
-
Free-wheeling diodes for load protection
-
External Power Supply: 18 to 30 VDC, 24 VDC nominal
Additional Information
-
External Power Source: Required for proper operation of output points
-
Diagnostics: LEDs provide status indicators for each point and field power
