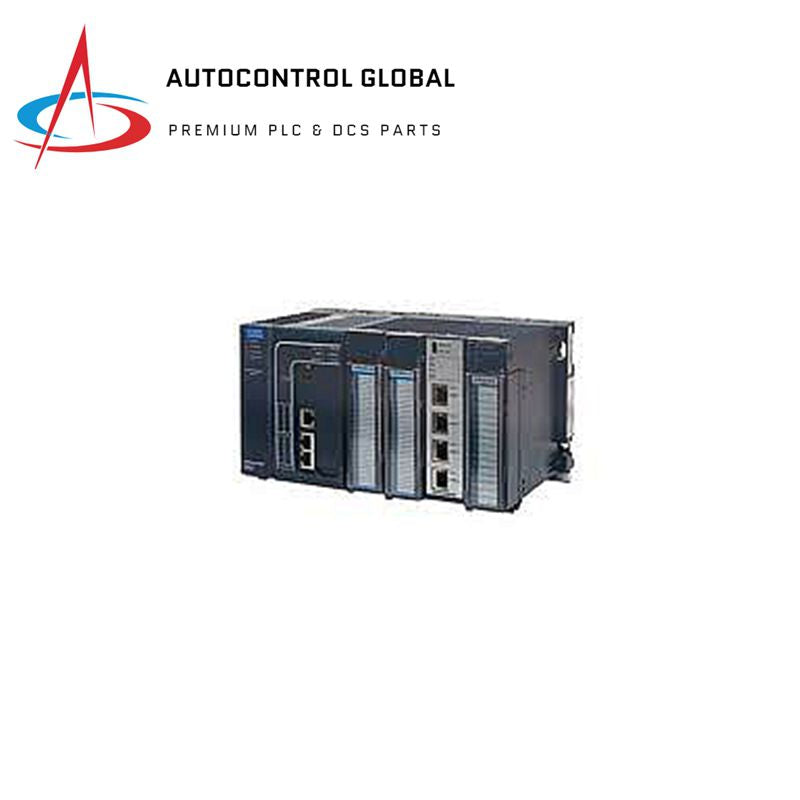

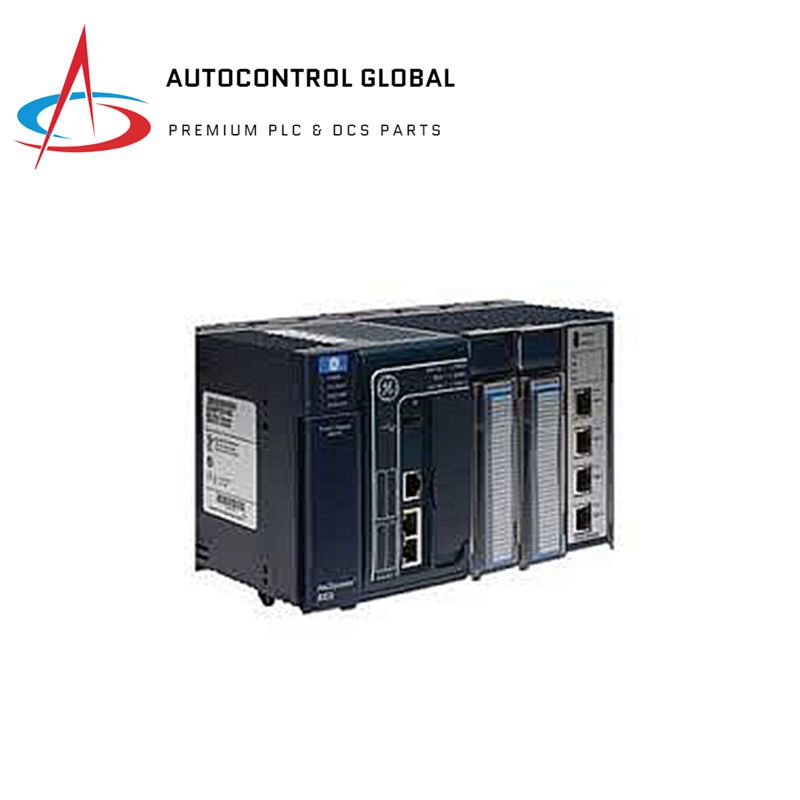

GE Fanuc IC694ALG223 Analog Input Module

Description

The IC694ALG223 is a 16-channel analog current input module designed for mission-critical discrete and process applications. It offers advanced diagnostics and outstanding flexibility, with a wide range of standard and advanced I/O.

Features

• 16 single-ended inputs
• Input ranges: 0-20 mA, 4-20 mA, and 4-20 mA Enhanced
• High and low alarm limits for all ranges
• Open-wire fault detection in 4-20 mA applications
• Module status and external power supply status reporting to the CPU
• LED indicators for module status and external 24 VDC supply status

Technical Specifications

• Analog Input Count & Type: 16 Channel; 4-20mA; 0-20mA
• Resolution & Speed: 12 Bit; 13mS
• Current Consumption: 120mA @5VDC; 65mA User Supplied 24VDC
• Agency Approvals: UL, UL HAZLOC, CE, ATEX C1D2, ABS, BV, DNV, GL, KRS, LR
• Mounting Format: On Panel/DIN Rail
• Calibration: Factory calibrated
• Update Rate: 13 milliseconds (all 16 channels)
• Resolution at 4-20 mA: 4 μA (4 μA/bit)
• Resolution at 0-20 mA: 5 μA (5 μA/bit)
• Absolute Accuracy: +/-0.25% of full scale @ 25°C (77°F); +/- 0.5% of full scale over specified operating temperature range
• Isolation, Field to Backplane: 250 VAC continuous; 1500 VAC for 1 minute (optical) and to frame ground
• Input Impedance: 250 Ohms
• Input Low Pass Filter: 19 Hz
• External Supply Voltage: 20 to 30 VDC
