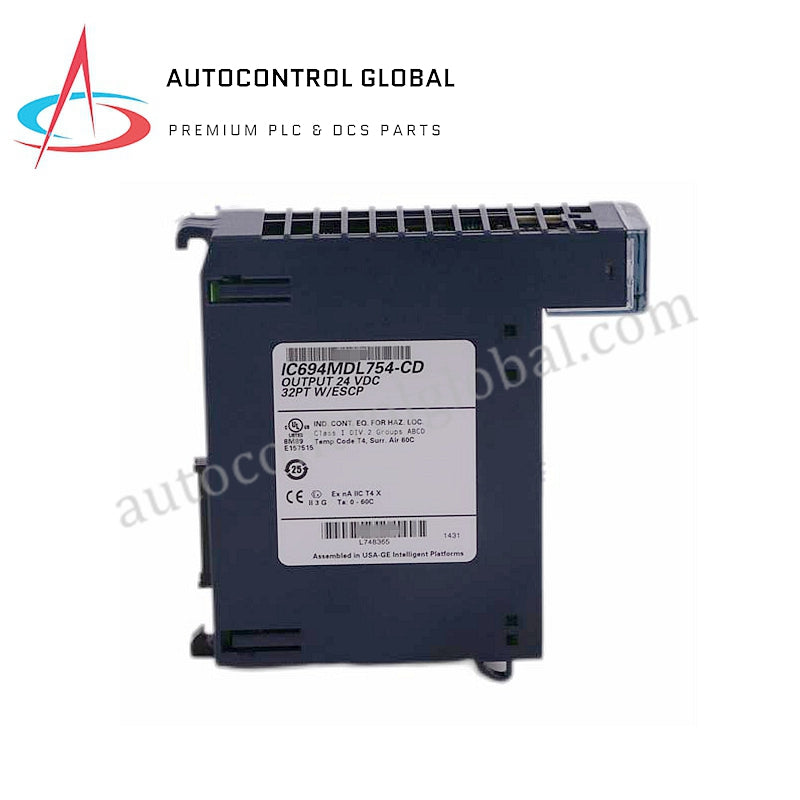

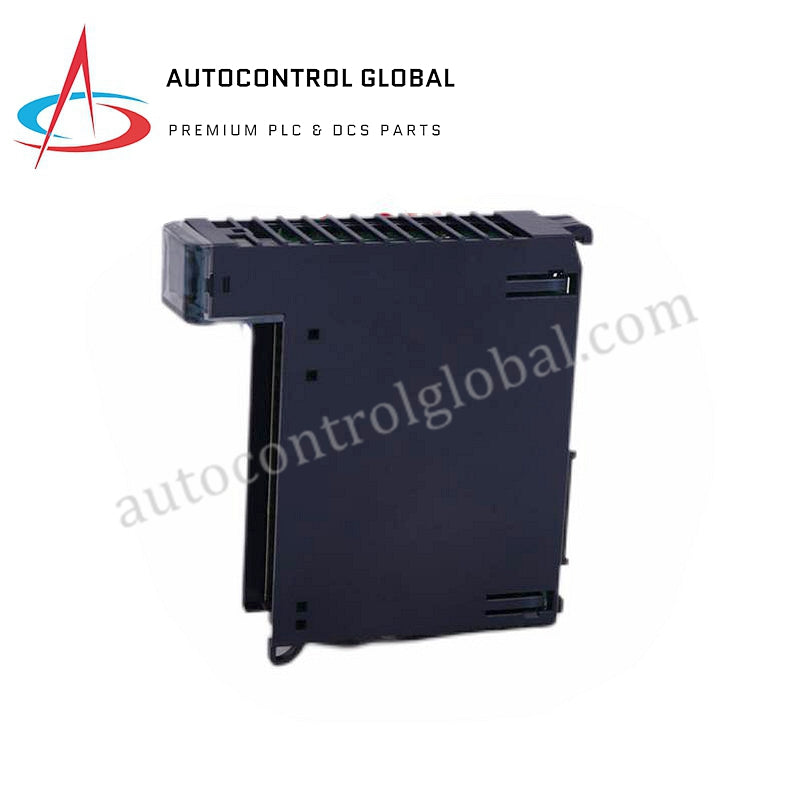

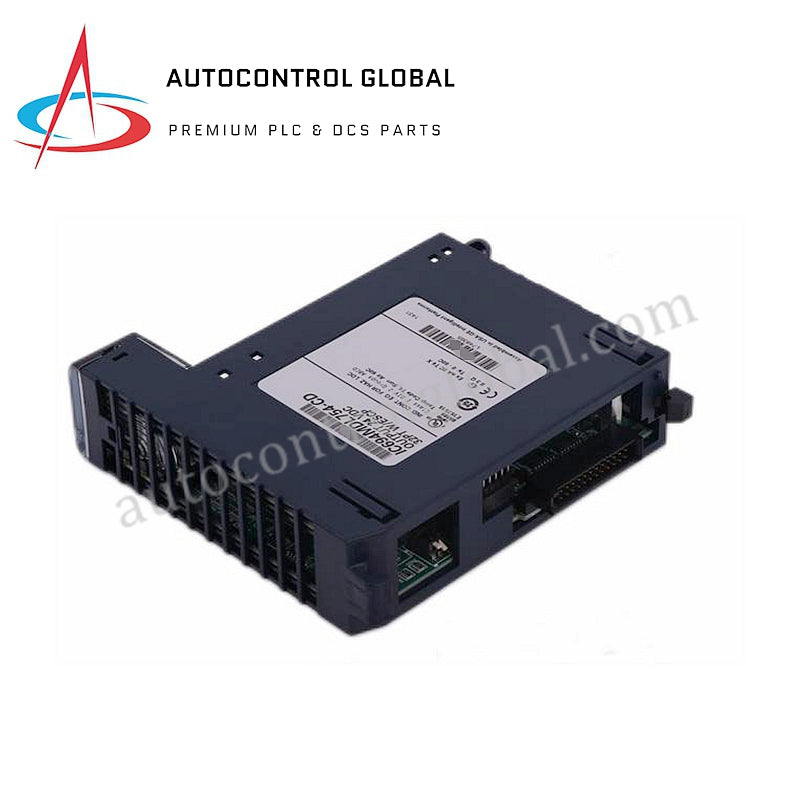

GE Fanuc IC694MDL754 Positive Logic Discrete Output Module

  • Manufacturer: GE Fanuc

  • Part Number: IC694MDL754

  • Condition：New with Original Package

  • Product Type: Positive Logic Discrete Output Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The IC694MDL754 is a high-density discrete output module designed for use with the PACSystem RX3i platform. It offers 32 positive logic discrete outputs and provides high reliability with built-in protection features. Ideal for applications requiring fast response times and robust protection, this module is optimized for use in industrial automation systems.

Key Specifications

  • Number of Channels: 32
  • Number of Output Groups: 2
  • Output Voltage Range: 10.2 - 30.0 VDC
  • Operating Voltage: 12/24 VDC
  • Output Current: 0.75 Amps per point
  • Response Time (Maximum): 0.5 ms
  • On-State Voltage Drop: 0.3 VDC
  • Off-State Voltage Leakage: 0.1 mA, maximum
  • Wiring Configuration: Positive Logic
  • Point-to-Point Isolation: Yes

Protection and Ratings

  • Built-in Protection: Short-circuit, overcurrent, and overtemperature protection
  • Inrush Rating: 3.0 Amps
  • Maximum Current Draw from Backplane: 300 mA
  • Max. Backplane Draw: 300 milliamps
  • Compatible Terminal Blocks: Box-style (IC694TBB032) / Spring-style (IC694TBS032)

Physical Features

  • Location: RX3i PACSystems I/O slot
