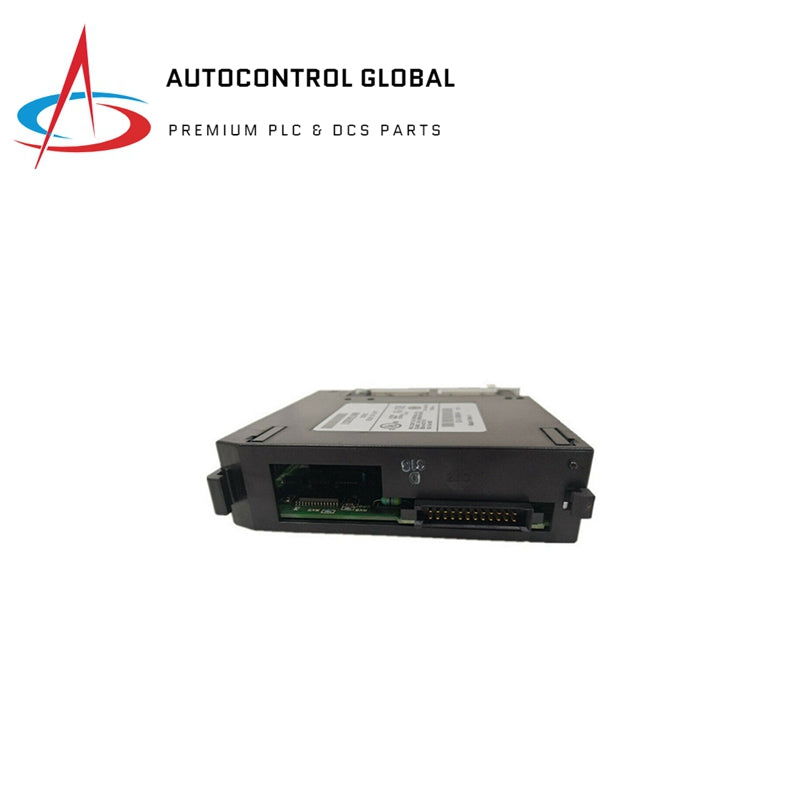

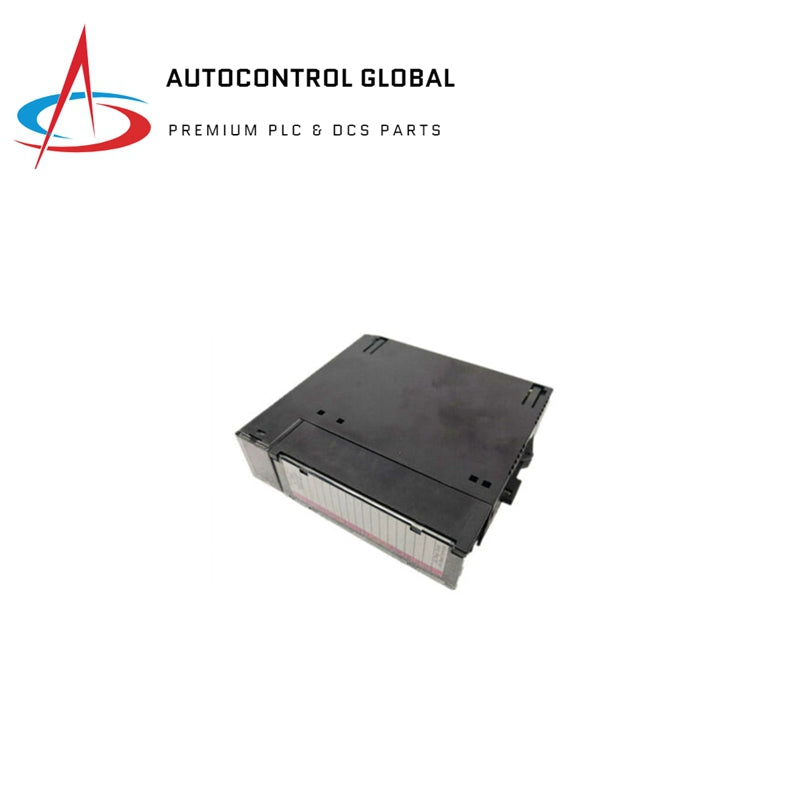

GE Fanuc IC695ALG600 PACSystems RX3i Universal Analog Input Module

Manufacturer: GE Fanuc
Part Number: IC695ALG600
Condition：New with Original Package
Product Type: Analog Input Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Specifications

Manufacturer: GE Fanuc
Product No.:IC695ALG600
Product Type:RX3i Universal Analog Input Module
Backplane Power Requirements:
- 300 mA maximum @ 5.0V
- 320 mA maximum @ 3.3V
Power Dissipation within Module:Thermal Dissipation
Input Resolution:11 to 16 bits, depending on configured range and A/D filter frequency
Voltage Inputs:
- -10V to +10V
- 0V to +10V
- 0V to +5V
- 1V to +5V
- -50mV to +50mV
- -150mV to +150mV
Current Inputs:
- -20mA to +20mA
- 4 to 20mA
- 0 to 20mA
Configurable Input Filter:
- 8 Hz
- 12 Hz
- 16 Hz
- 40 Hz
- 200 Hz
- 1000 Hz
Scaling:Floating point user scaling
Max RTD Cable Impedance:25 ohms
RTD Wire Length:1000 ft max with a settling time of 1 ms
Current Input Resistance:249 ohms ± 1%
Weight:0.18 Kg
Shipping Weight:1.5 Kg

Features

High-speed and patented technology for faster throughput
Hot swap capability
A variety of voltage ranges and current capacities to meet your application needs.
