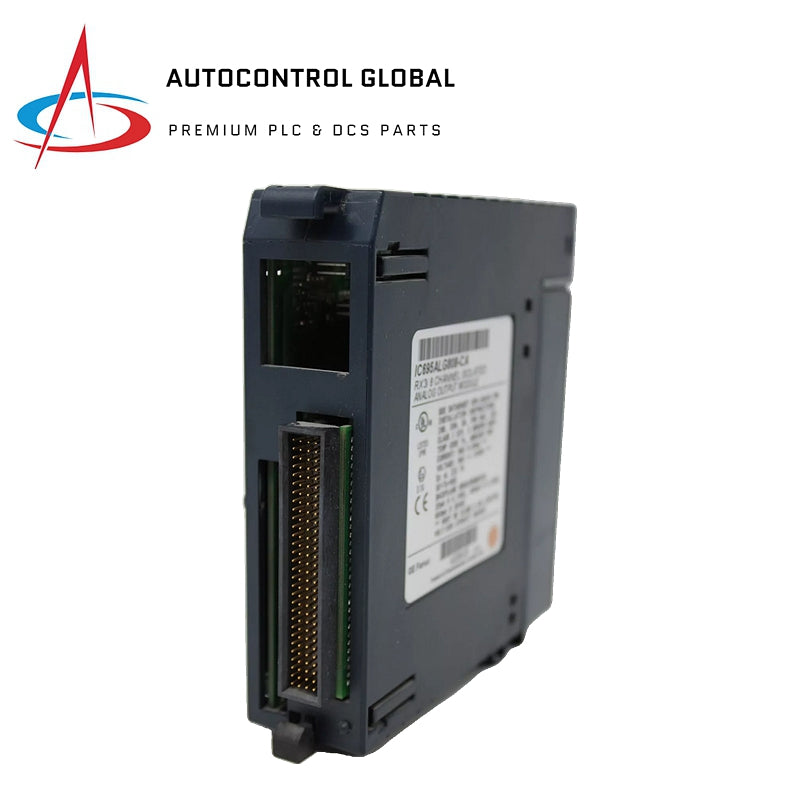

GE Fanuc | IC695ALG808 | Isolated Analog Output Module

Overview

The IC695ALG808 is an isolated analog output module for the Rx3i PACSystem. It features 8 output channels with a wide range of current and voltage outputs, offering flexibility in industrial automation.

Specifications

• Output Ranges:
  • Current: 0-20mA, 4-20mA
  • Voltage: +/-10V, 0-10V
• Power Supply:
  • Backplane: 80mA at 3.3V
  • External: 19.2V to 30V (600mA max)
• Resolution:
  • +/-10V: 15.9 bits
  • 0 to 10V: 14.9 bits
  • 0 to 20mA: 15.9 bits
  • 4 to 20mA: 15.6 bits
• Accuracy:
  • 0.15% FS at 25°C
  • 0.25% FS at 60°C
  • Degrades to +/-1% FS with severe RF interference
• Update Rate: Approx. 8ms (dependent on I/O scan time)
• Settling Time: 2ms (0 to 95%)

Additional Features

• Overvoltage Protection:
  • Current: -30V for 60s, +30V for 1 hour
• Isolation: 2550VDC for 1 second
• Thermal Derating: Refer to derating curves
• Output Load:
  • Current: 1350 Ohms max
  • Voltage: 2 Kohms min
