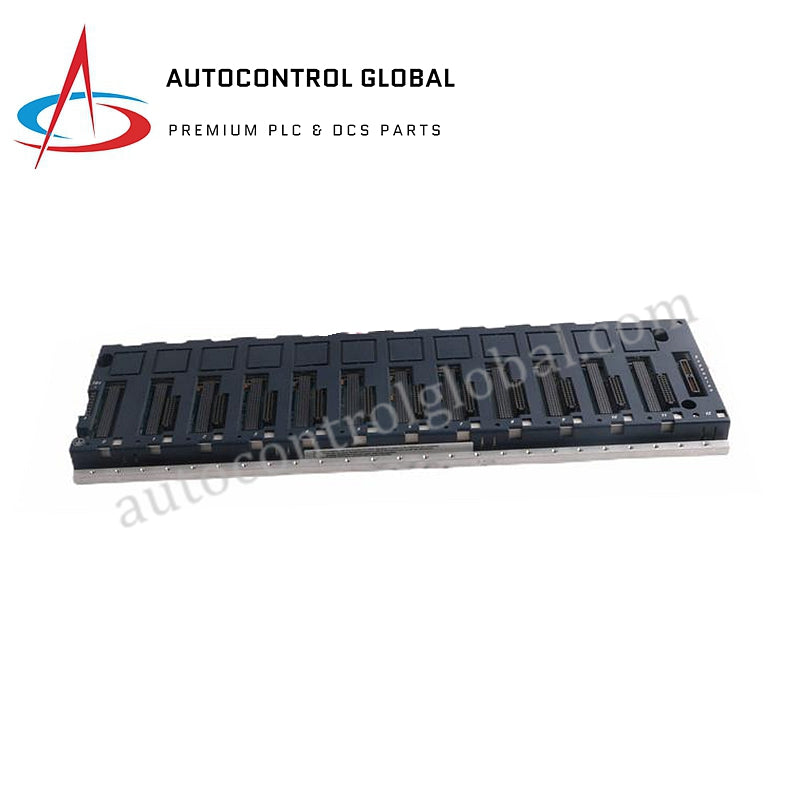

GE Fanuc | IC695CHS012 | PACSystem RX3i Universal Backplane

Description

IC695CHS012 is a PACSystem RX3i Universal Backplane by GE Fanuc, compatible with RX3i PACSystem, Series 90-30, and option modules.

Specifications

• Brand: GE Fanuc
• Series: RX3i PACSystem
• Part Number: IC695CHS012
• Type: Universal backplane
• Number of Slots: 12

Power and Compatibility

• Internal Power (5 VDC): 240 mA
• Internal Power (3.3 VDC): 600 mA
• Input Voltage: +24 V
• Backplane Support: PCI and High-Speed Serial

Features

• Hot Swap Support: Yes
• Mounting: Rack-mounted
• Orientation: Horizontal

Installation Requirements

• Clearance: Minimum 102 mm (4 inches) on all sides
• Protection: NEMA/UL Type 1 (IP20)

Dimensions

• Size (HxWxD): 141.4 x 457.2 x 147.3 mm (5.5 x 18 x 5.8 inches)
