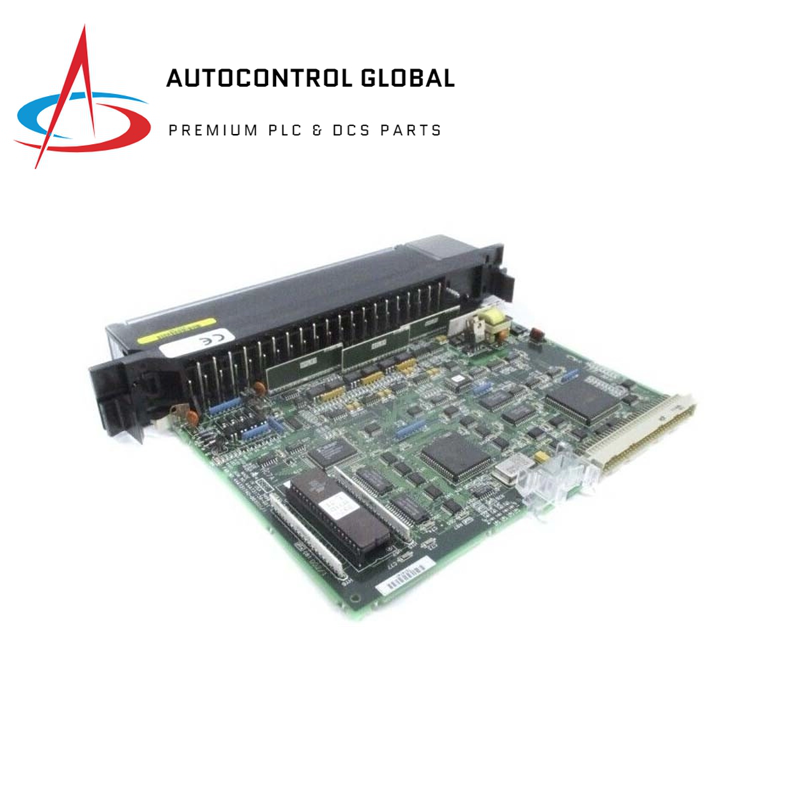

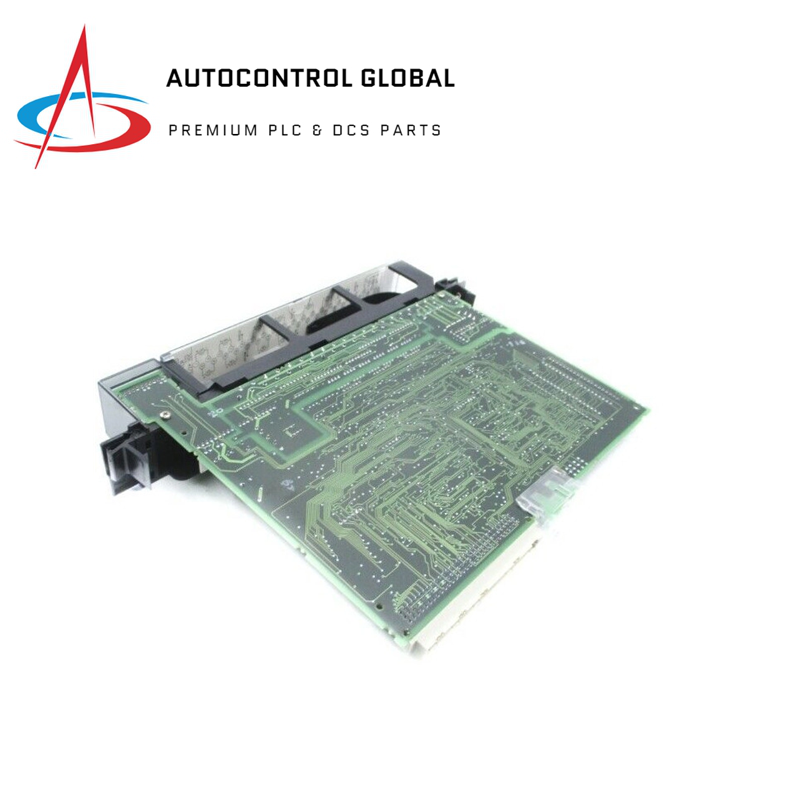

GE Fanuc IC697HSC700 High Speed Counter 4A Module

Description

The GE Fanuc IC697HSC700 is a high-speed counter module from the 90-70 series PLC. It is designed for direct counting of fast pulse signals with a high processing frequency, making it suitable for applications requiring precise measurement and control.

Key Features

• Single-Slot Module: Easy to install and space-efficient.
• Five Selectable Counting Types: Adaptable to various application scenarios.
• 12 Single-Ended or Differential Inputs: Flexible configuration to meet different input signal requirements.
• TTL, Non-TTL, and Magnetic Pickup Input Thresholds: Supports a variety of sensor types.
• High-Speed Counting: Capable of accurately counting high-speed pulse signals, with a maximum frequency of 200 kHz (or up to 800 kHz in A Quad B mode for the E type).
• Multiple Functions: Beyond counting, it also supports functions such as frequency measurement, pulse width measurement, etc.

Applications

• Motion Control: Measures motor speed, encoder pulses, and other parameters.
• Process Control: Measures flow rate, speed, and other process variables.
• Machine Vision: Measures line speed, angular velocity, and similar metrics.
