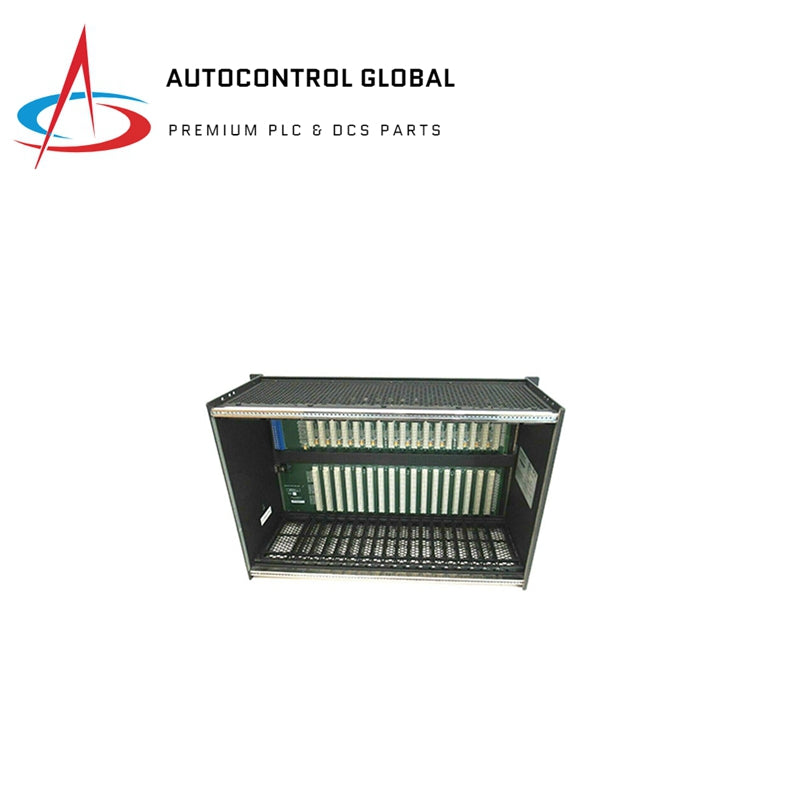

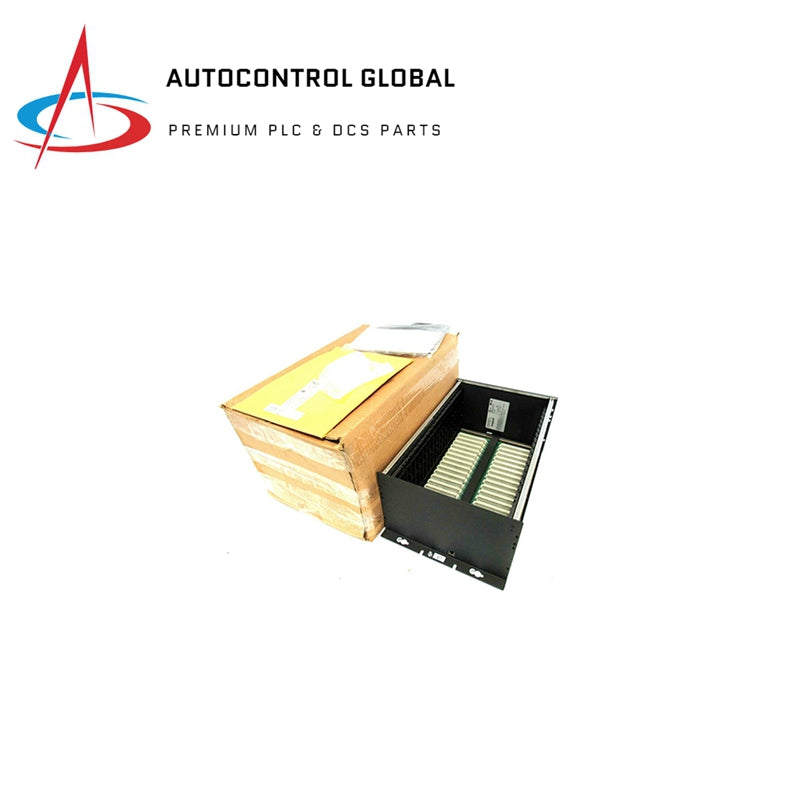

GE Fanuc IC698CHS017 Rx7i 17-Slot Rear Mount Rack

Key Features and Specifications

• Application:Designed for the Rx7i PACsystem series.

• Operating Voltage:Operating voltage ranges from 5 to 12 Volts DC.

• Power Supply:Power supply capacity of 350 Watts.

• Power Supply Current Rating:

  • 60 Amps at 5 Volts DC.
  • 4.0 Amps at 12 Volts DC.

• I/O Capacity:17 slots.

• Fan Assembly:Optional fan assembly.

• Dimensions:Approximate dimensions: 11.2 x 19.0 x 7.5 inches (H x W x D).

• Mounting Type:Rear mounting type.

• Digital Inputs:

  • Supports 172 channels.
  • Accepts 24 VDC or 24 VAC inputs.
  • Current ratings: 20 mA or 10 mA.

• Digital Outputs:

  • Supports 128 channels.
  • Outputs 24 VDC or 24 VAC.
  • Current ratings: 20 mA or 10 mA.

• Analog Inputs:

  • Supports 32 channels.
  • Input range: 0 to 10 VDC or 4 to 20 mA.
