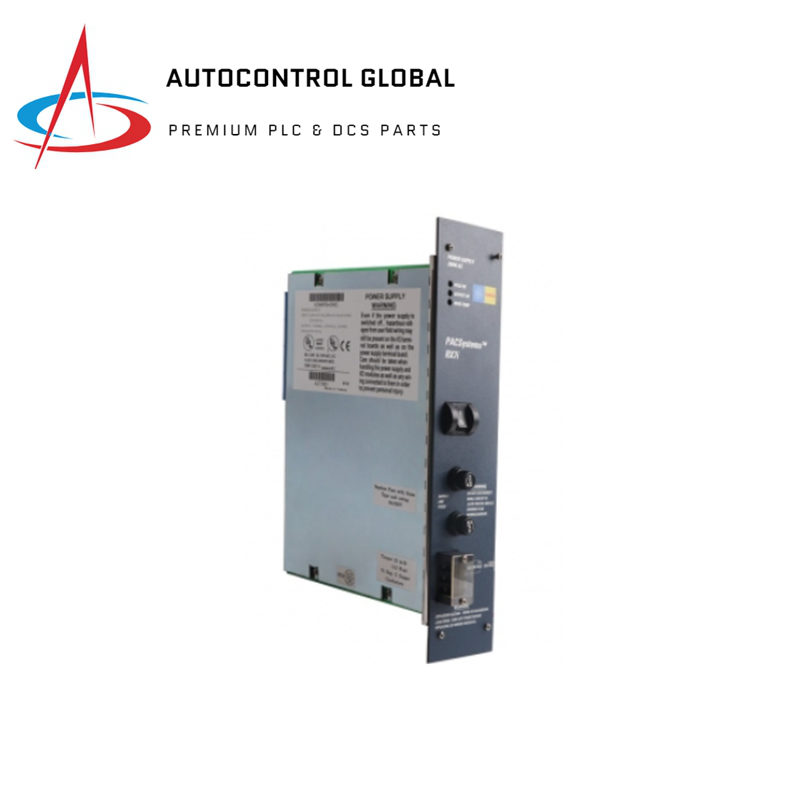

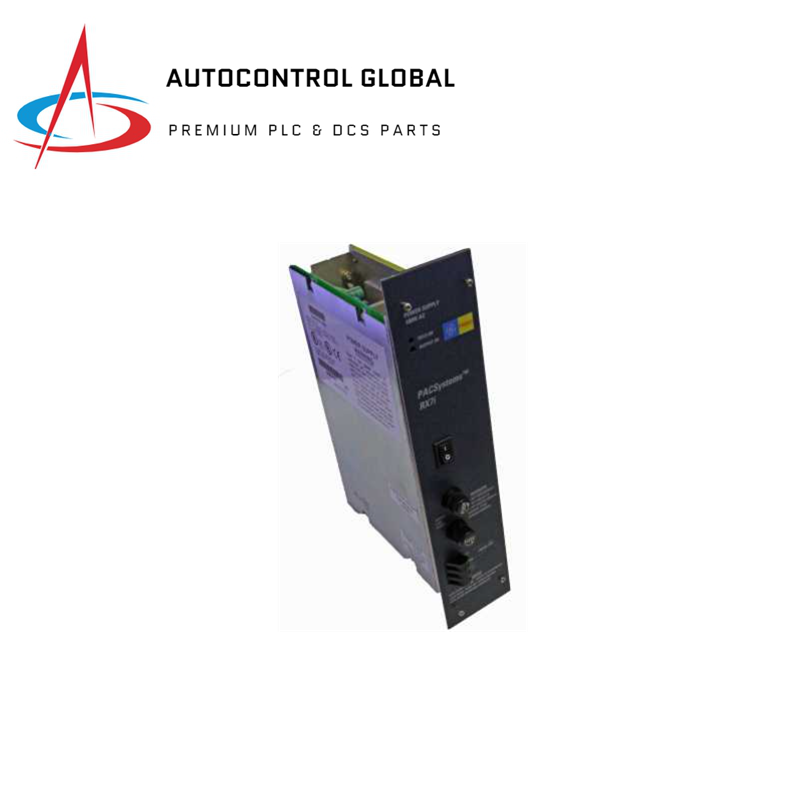

GE Fanuc IC698PSA100 RX7i Power Supply Module

Key Features and Specifications

• Description：

  • The IC698PSA100 is a power supply module designed for the PACSystem RX7i platform.
  • It provides +5 VDC, +12 VDC, and -12 VDC power outputs, along with logic level sequencing signals to modules on the backplane.
  • It plugs directly into slot 0 in the main rack.

• Input Voltage Range：Operates from 85 to 264 VAC or 100 to 150 VDC.

• Power Rating：Nominal input power: 125 Watts.

• Output Voltages:

  • +5 VDC output: Up to 20 amps.
  • +12 VDC output: Up to 2 amps.
  • -12 VDC output: Up to 1 amp.

• Additional Features:

  • Power supply output can withstand up to one AC input line cycle without losing output power.
  • Includes overcurrent, overtemperature, and overvoltage fault condition protection.
  • Provides 100 watts total output power at ambient temperatures of 0 to 60ºC without forced air cooling.

• Mounting:Designed for simple slide-in rack mount construction.

• Indicators:Equipped with LED indicators for field and output status monitoring.
