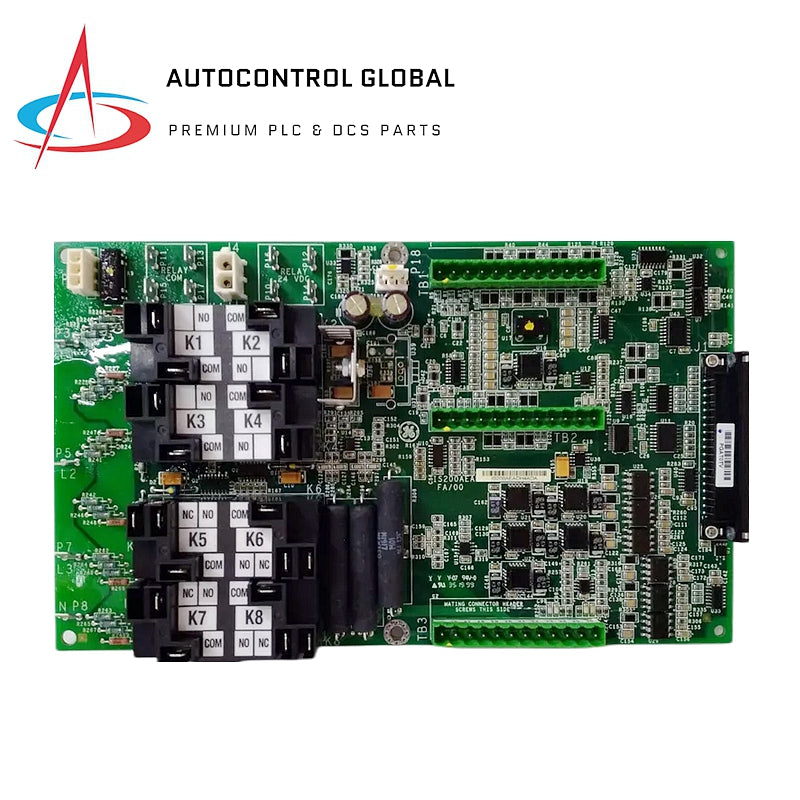

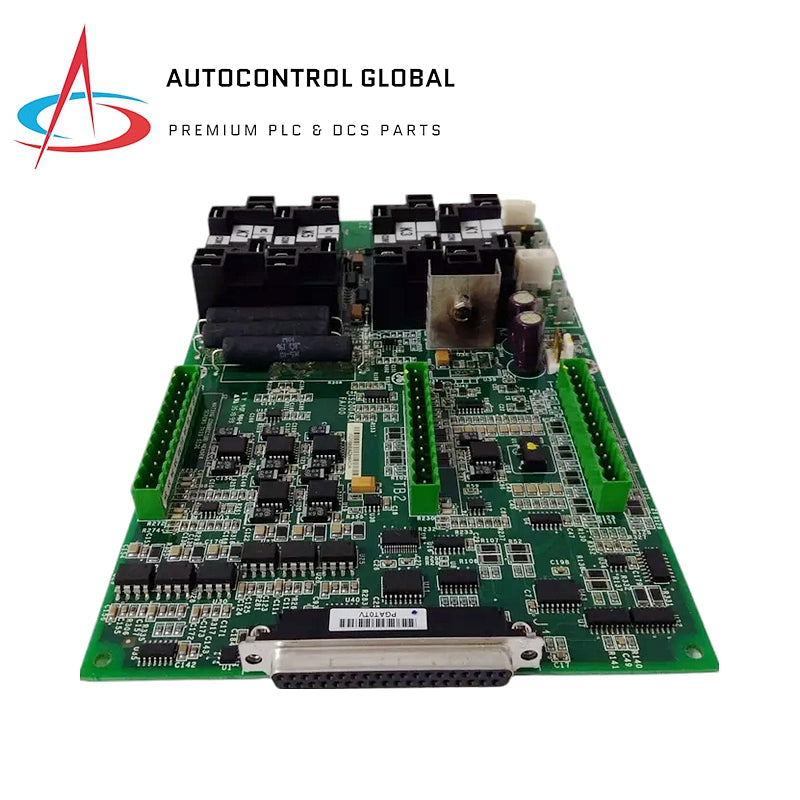

GE Fanuc | IS200AEADH4ADA | Input Terminal Board

Overview

The IS200AEADH4ADA is an input terminal board developed by General Electric for use in turbine control systems. It connects directly to sensors and actuators, simplifying the setup process and enhancing reliability by eliminating intermediary instrumentation.

Specifications

• Part Number: IS200AEADH4ADA
• Temperature Range: 30 to 65°C
• Size: 17.8 cm (W) x 33.02 cm (H)
• Relay Channels: 12
• Product Type: Input Terminal Board

Installation Considerations

• Control Room Placement: Install in an environmentally controlled room for optimal performance. Ensure a flat, level surface for secure attachment.
• Lifting and Handling: Use lifting lugs and ensure cables do not exceed a 45° angle from vertical.
• Security Features: Cabinet equipped with a lockable door handle to prevent unauthorized access.
• Cable Access: Route interconnecting cables through removable access plates, ensuring proper sealing to avoid dust or moisture ingress.

Cooling and Convection

The cabinet uses convection cooling to maintain internal temperatures. Ensure that conduits leading to access plates are sealed to allow unimpeded airflow.

Filtering

• Hardware Filters:
  • J3: Single-pole down break at 500 rad/sec for high-frequency noise suppression.
  • J4: Two-pole down break at 72 and 500 rad/sec for enhanced noise reduction across a broader range.
• Software Filter: Configurable two-pole low-pass filter with cutoff frequencies: 0, 0.75, 1.5, 3, 6, and 12 Hz.
