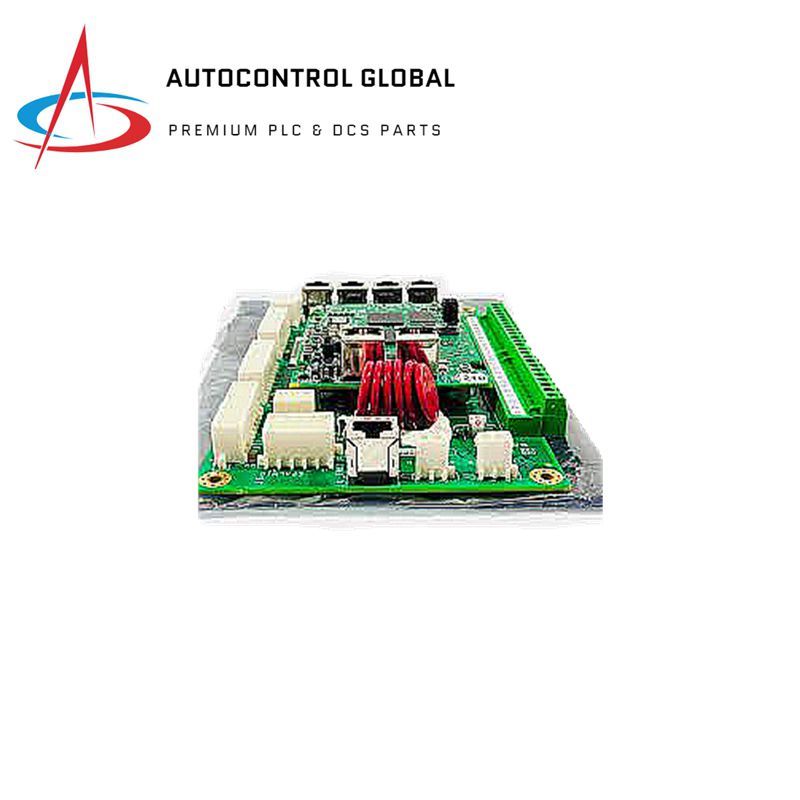

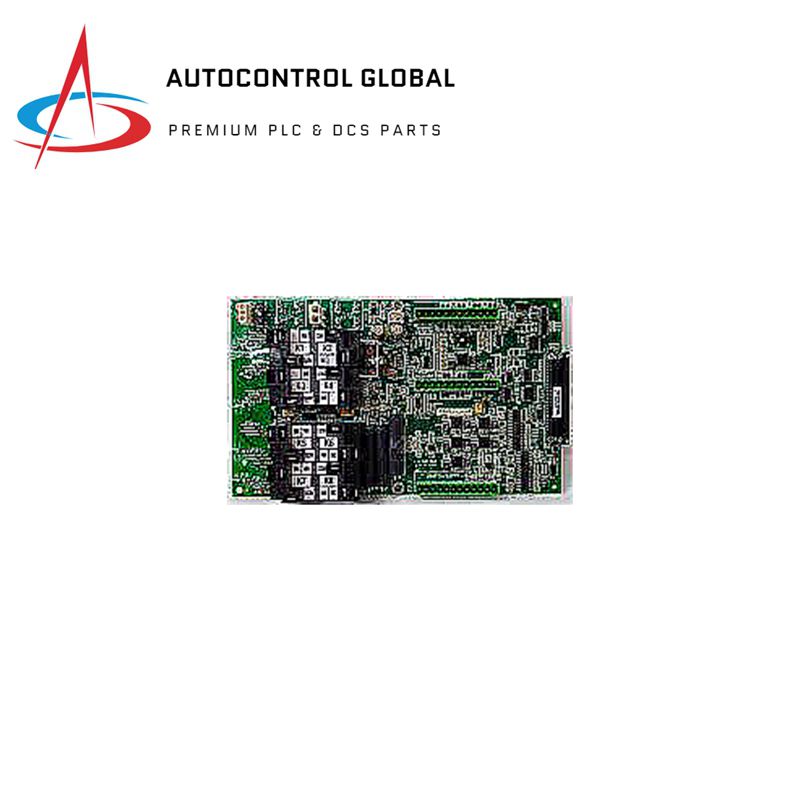

GE Fanuc IS200AEPAH1AFD Printed Circuit Board

Description

The IS200AEPAH1AFD is a printed circuit board (PCB) designed by General Electric for use in the Mark VI Turbine Control System. It can connect to an optional auxiliary board via two-pin male connectors, facilitating communication between the AEPA board and the auxiliary board.

Features

• Compatible with multiple redundancy models: simplex, dual, or triple redundancy
• Can be used with IONet or Unit Data Highway (UDH) communication types
• Equipped with two sub-D pin connectors
• Contains six metal oxide varistors (MOVs)
• Occupies one VME slot in a VME rack with 21 or 13 slots

Technical Specifications

• Part Number: IS200AEPAH1AFD
• Manufacturer: General Electric
• Dimensions: 160 mm x 120 mm x 20 mm
• Weight: 0.3 kg
• Input Voltage: 24 VDC
• Power Consumption: 10 W
• Operating Temperature Range: -40°C to +70°C
