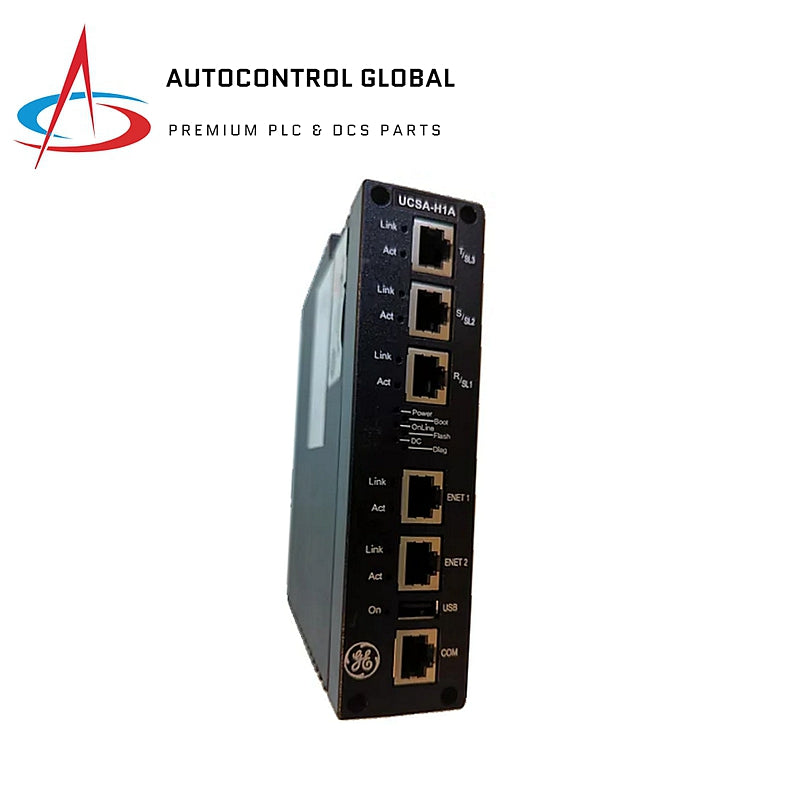

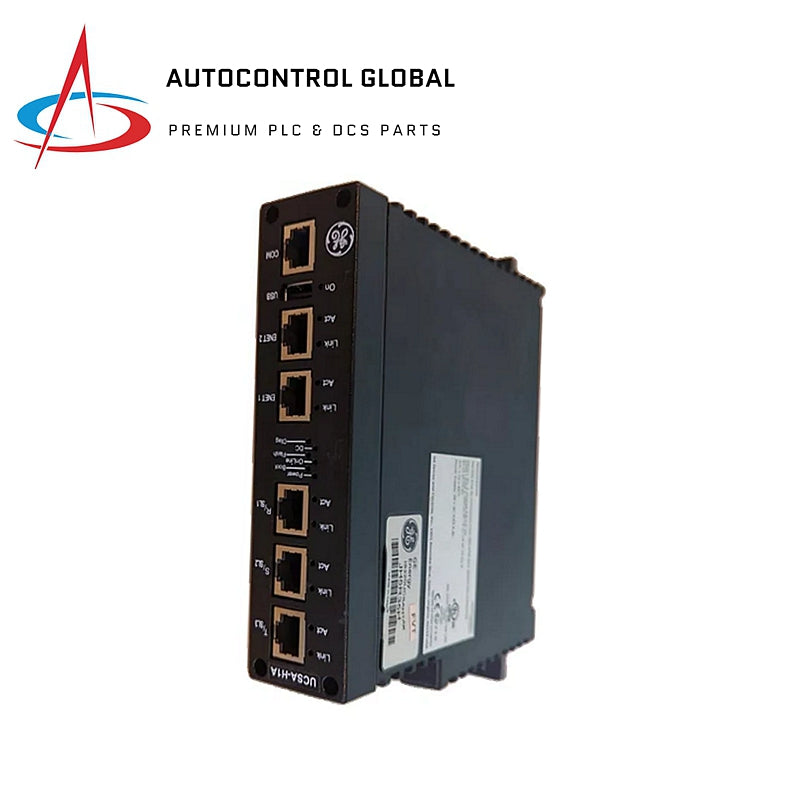

GE Fanuc | IS220UCSAH1 | Speedtronic Turbine Control

Overview

The IS220UCSAH1 is a high-performance Turbine Control Module designed for precise and reliable speed control in industrial applications. Featuring a robust design, advanced control algorithms, and flexible configuration options, this module ensures high accuracy and responsiveness in dynamic control environments.

Technical Specifications

• Processor: Dual-core ARM Cortex-A72
• Memory: 2GB DDR4 RAM, 16GB eMMC Flash
• Digital Inputs: 32 points
• Digital Outputs: 16 points
• Analog Inputs: 8 points (0-10V)
• Analog Outputs: 4 points (4-20mA)
• Communication: Ethernet (10/100/1000 Mbps), RS-485, CANbus
• Control Algorithms: PID, fuzzy logic, model predictive control
• Sampling Rate: Up to 1 kHz
• Control Accuracy: ±0.1% FS
• Response Time: < 5ms
• Operating Temperature: -20°C to 60°C
• Humidity: 5% to 95% RH (non-condensing)
• Vibration Resistance: 5G RMS
• Power Supply: 24V DC

Environmental & Compliance

• Temperature:
  • Operating: -20°C to 60°C
  • Storage: -40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)
• Vibration Resistance: 5G RMS (IEC 60068-2-64)
• Power Supply: 24V DC with wide tolerance for industrial power systems.
