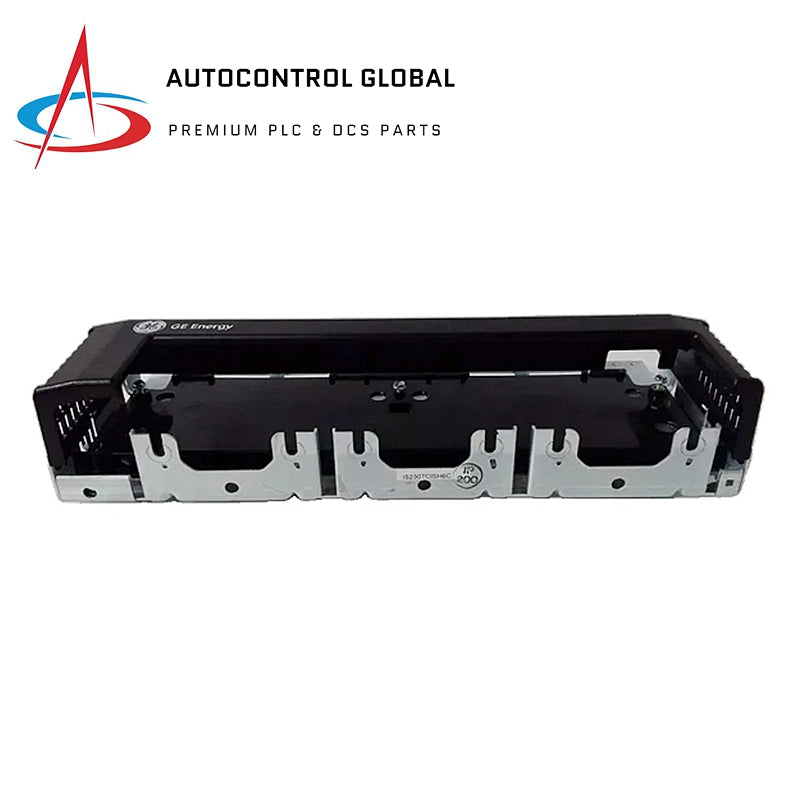

GE Fanuc IS230TCISH6C DIN Rail I/O Module

Overview

The IS230TCISH6C is a DIN Rail I/O Module from General Electric, designed for the Mark VIe Series used in distributed control systems. This module is widely applied in turbine and plant control systems, providing robust and reliable signal management.

Features

• 12 Relays: Provides secure control and switching capabilities for industrial applications.
• Input Filter: 4 ms hardware filter for clean signal processing.
• Surface-Mount Technology: Enhances durability and performance.
• Temperature Range: Operates between -30°C and +65°C for a wide range of industrial environments.
• DIN Rail Mounting: Simplifies installation in standard industrial settings.

Connectivity and Mounting

• Terminal Blocks: Two rows of screw connections for secure and reliable wiring.
• Connectors: Equipped with three 37-pin female connectors for seamless data transmission.
• Plug Connectors: Provides additional connectivity options for expanded system integration.
• Chassis Grounding: Factory-made holes for grounding ensure electrical safety and minimal interference.
• Mounting Options: Designed for DIN rail installation or mounting within a cabinet for organized and secure setups.

Wiring and Installation

• Wiring Connections: Two sets of 48 terminal blocks (TB1 and TB2) for easy connection to relays and contact input circuits.
• Screw Assignments: Standardized for consistency across the module.
• Shielded Cables: Proper termination of shields is required to reduce electromagnetic interference (EMI).
