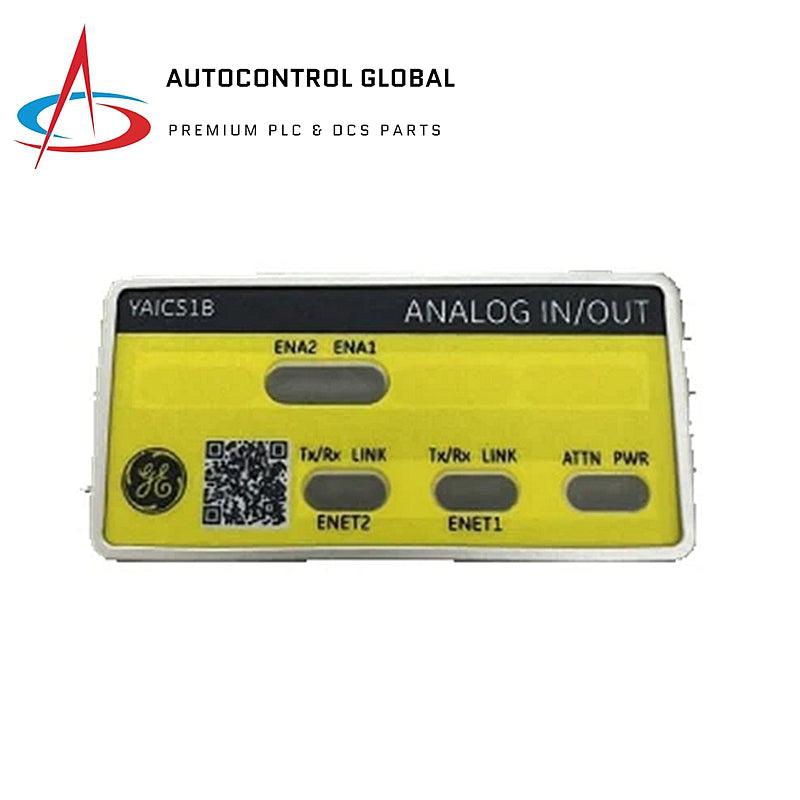

GE Fanuc IS420YAICS1B | Analog I/O Pack

Overview

The IS420YAICS1B is an Analog I/O Pack designed for the Mark VIe Turbine Control System, supporting gas, steam, and wind turbine management.

Features

• Power Consumption: 5.3 Watts typical
• Temperature Range: -40 to 158 °F
• Resolution: 16-bit ADC
• Dimensions: H 3.25 in x W 1.65 in x D 4.78 in

Functionality

• Input Handling:
  • Up to 10 analog inputs
  • Configurable inputs:
    • 2 channels for ±1 mA or 4-20 mA
    • 8 channels for ±5 V, ±10 V, or 4-20 mA
• Networking: Dual RJ45 Ethernet connectors for data communication.
• Diagnostics: Fault detection handled by the data acquisition board.

Components

• Boards:
  • Common processor board
  • Data acquisition board
• Terminal Boards: TBAISIC and STAIS2A, integral to the Mark VIe system.
