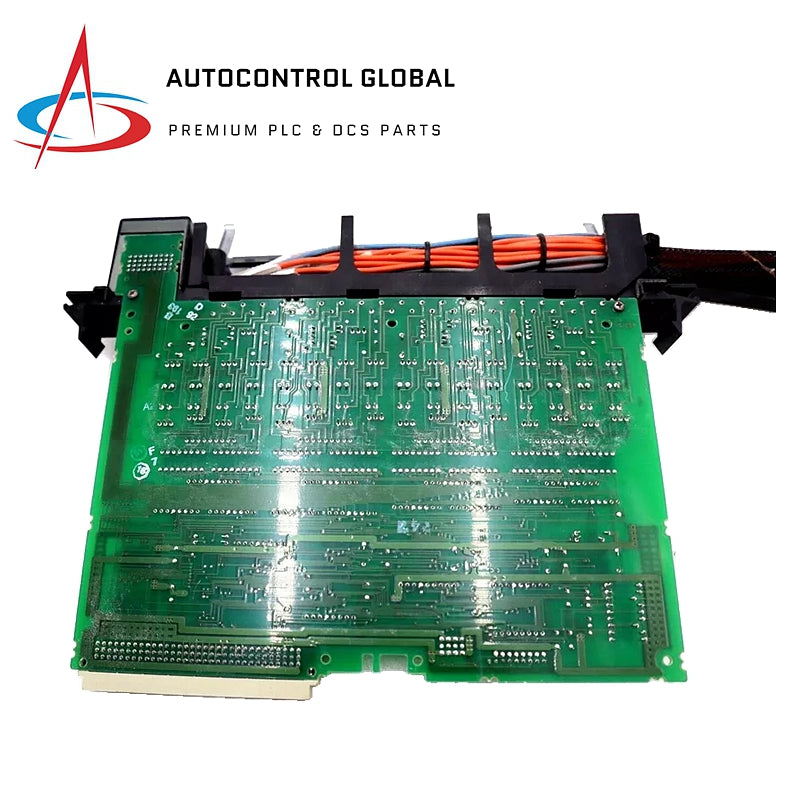

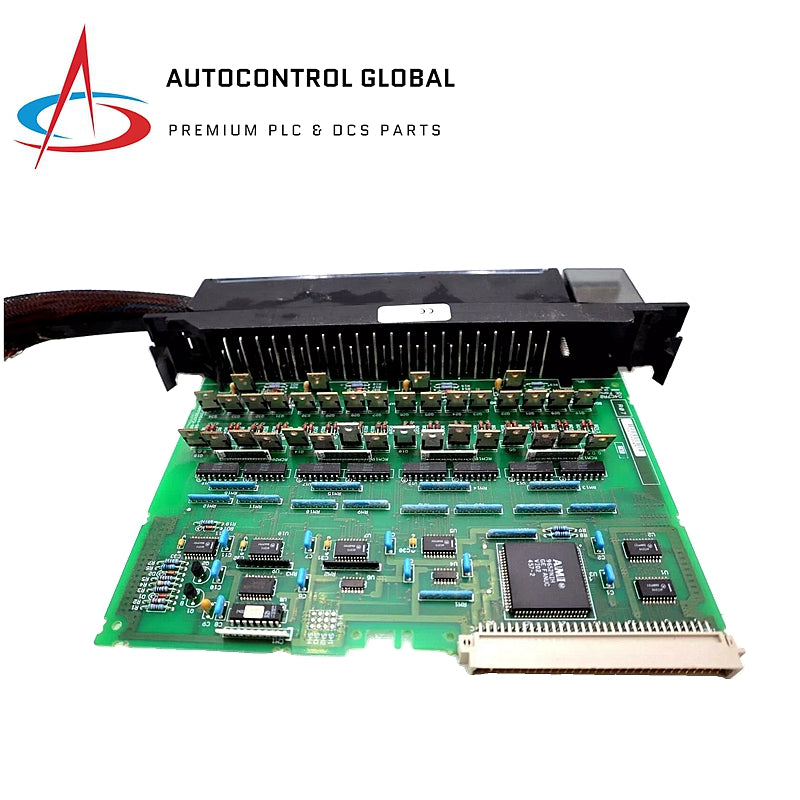

GE Fanuc Series 90-70 | IC697MDL750 | Discrete Output Module

Overview

The IC697MDL750 is a 32-channel discrete output module from GE Fanuc's Series 90-70, designed for industrial automation systems. It offers precise control over various electrical devices and supports a wide output voltage range.

Specifications

• Channels: 32 discrete outputs
• Output Voltage: 20-60 VDC
• Output Current: 0.5 A per point, 2 A per group
• Isolation: 1500 V between output and backplane, 500 V between groups
• Current Draw: 0.25 A
• Inrush Current: 10 A for 20 ms
• Response Time: 1 ms (on/off)
• Output Voltage Drop: 1 V (maximum)
• Leakage Current: 1 mA (maximum)

Features

• Current Rating: 0.5 A per point, 2 A per group
• Wiring: Positive logic with removable terminal block
• Voltage Range: 20-60 VDC
• Rated Voltage: 24-48 VDC
• Isolation: 1500 V backplane, 500 V between groups
• Terminal Compatibility: Accepts #22 to #14 AWG wires

Installation & Configuration

• Mounting: Single slot in Series 90-70 baseplate
• Module Size: Compact and easy to install
• Compatibility: VME standard C.1

Applications

• Suitable for: Energizing motor starters, solenoids, and pilot lamps
• Load Types: Manual or automated operations with devices requiring steady-state current between 100 mA to 500 mA

Performance

• Inrush Current: 10 A for 20 ms
• Response Time: 1 ms for both on and off states
• Voltage Drop: 1 V (2 Ohms) maximum
