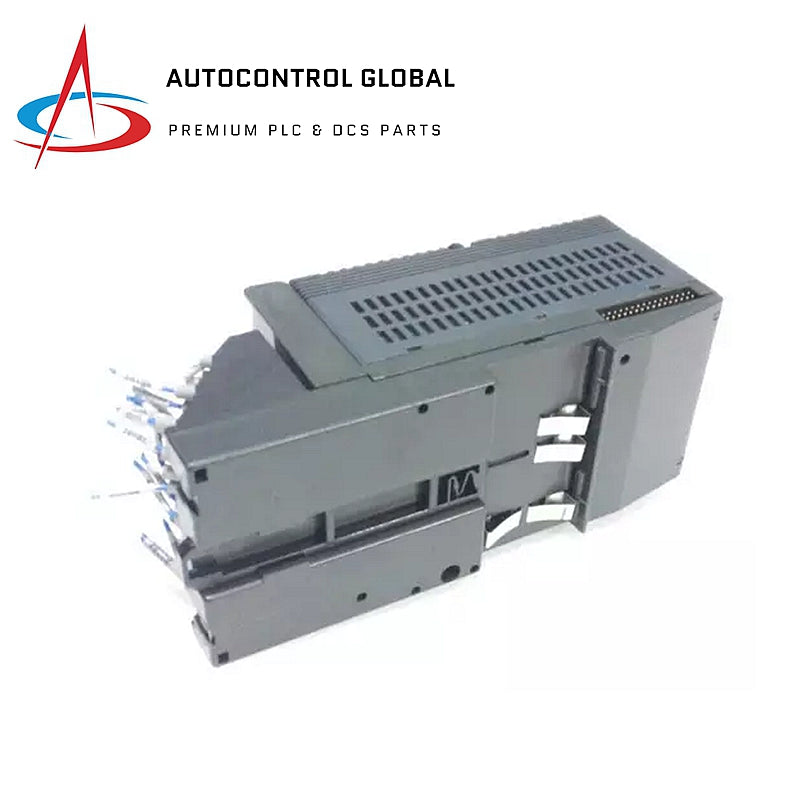

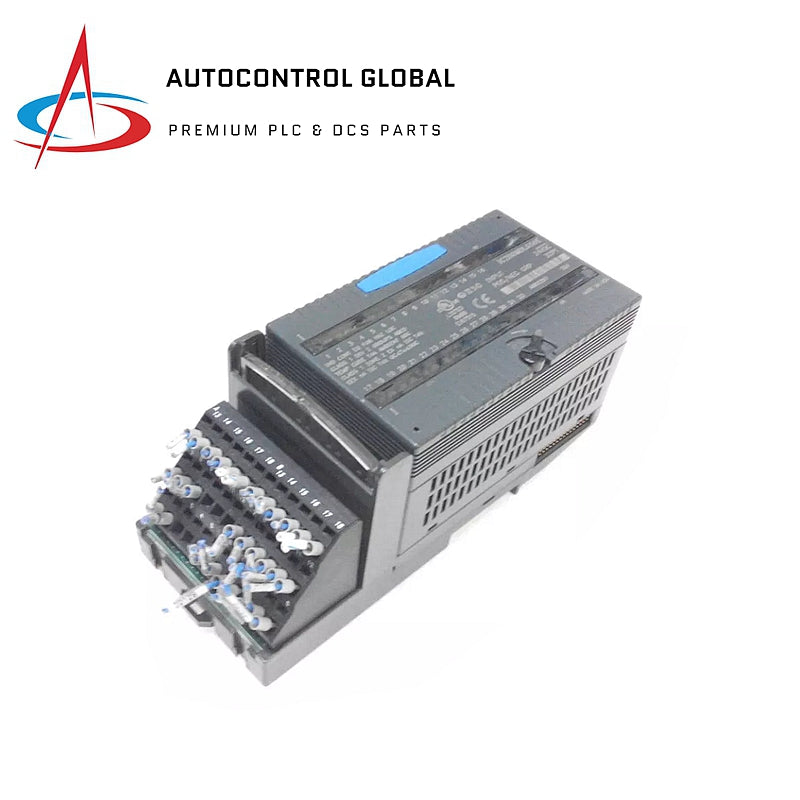

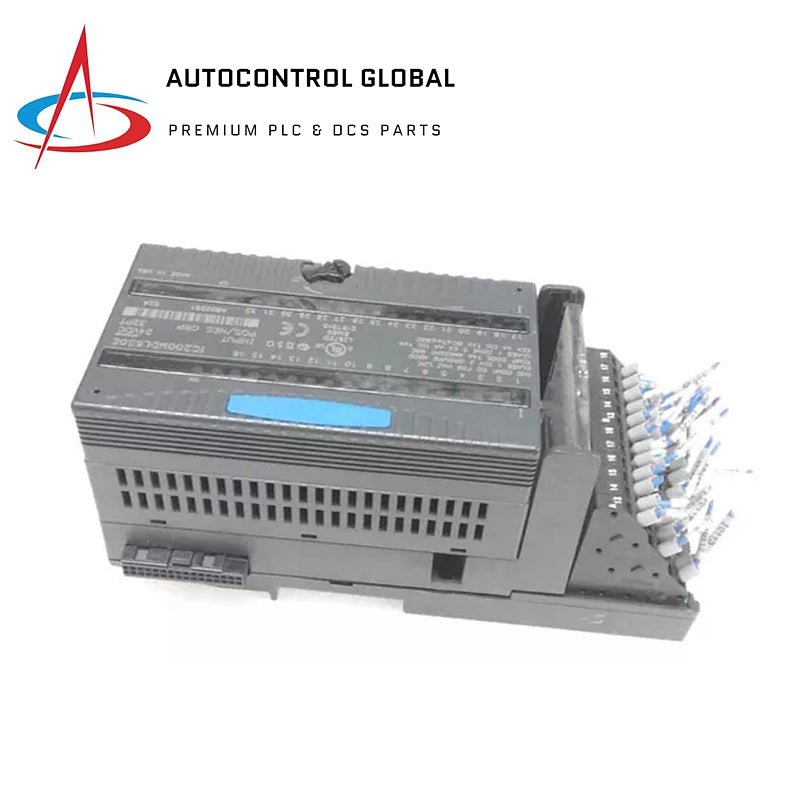

GE Fanuc Versamax IC200CHS025 | Compact Spring-Style I/O Carrier Module

Manufacturer: GE Fanuc
Part Number: IC200CHS025
Condition：New with Original Package
Product Type: Compact Spring-Style I/O Carrier Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Overview

The IC200CHS025 is a compact spring-style I/O carrier module designed by GE Fanuc for the Versamax series. This module supports vertical mounting of compatible I/O modules, providing efficient wiring and backplane communication for the system.

Key Information

Brand: GE Fanuc
Series: Versamax
Part Number: IC200CHS025
Product Type: Compact spring-style I/O carrier
I/O Mounting: Vertical

Specifications

Electrical & Wiring

IEC Box-Style Terminals: 36
Single Wire Gauge: AWG 14 to AWG 22
Dual Wire Gauge: AWG 18
Maximum Voltage: 264V AC
Transients: 300V AC tolerance

Dimensions

Length: 163.5 mm
Width: 66.8 mm
Depth: 70 mm

Spacing & Mounting

Vertical Spacing: 2 inches
Horizontal Spacing: 1 inch
Latch Hole: For secure module fastening
Keying Dials: Ensure proper module installation

Environmental Conditions

Operating Temperature: -40°C to 60°C

Features

I/O Points: Up to 32
Common/Power Connections: 4
Carrier-to-Carrier Mating Connectors: For seamless integration
Secure Mounting: Easy module installation with no disturbance to field wiring
