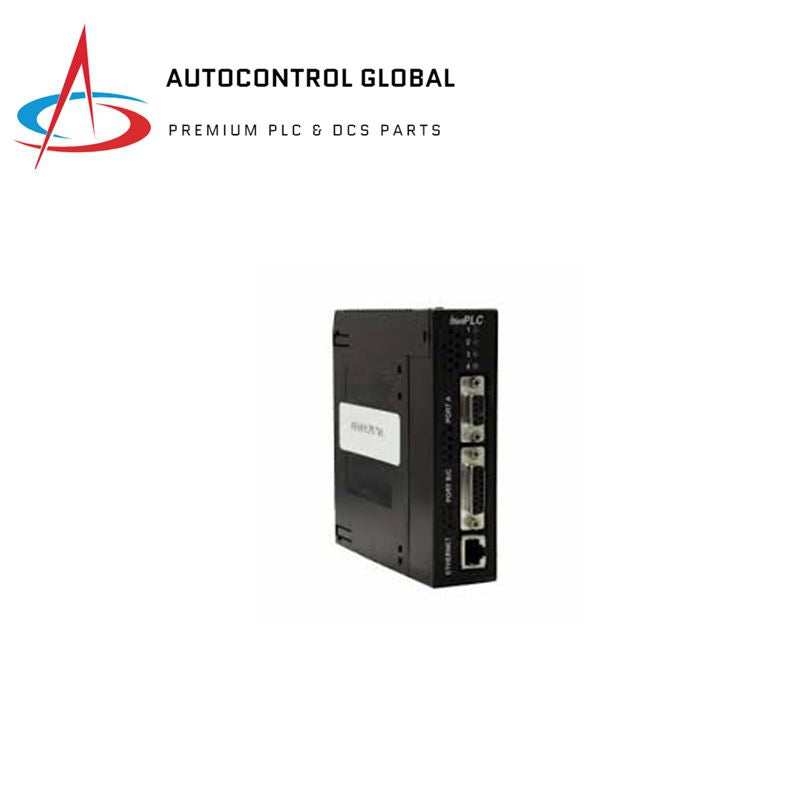

GE HE693CPU701 Central Processing Unit Module

Technical Information

The Horner Electric HE693CPU701 PLC I/O Module, featuring an Ethernet port, is part of the Horner Automation APG product line. It is compatible with GE Fanuc Series 90-30 or Series 90-70 Programmable Logic Controllers (PLCs).

Key Features

• Serial Ports: Includes 2 serial ports, one with 9 terminal points and another with 15 terminal points.
• Ethernet Connectivity: Equipped with an RJ45 EtherNet connector for remote control and monitoring.
• Compact Flash Memory: Features a built-in 63 MB Compact Flash memory unit (part number 46-164-64R) for backing up and restoring logic programming data.
• Construction: Open-style plastic casing with an environmental protection rating of IP 20.

Installation and Maintenance

• Ventilation: Although the module has a built-in ventilation fan, it is recommended to install it inside a protective enclosure with forced ventilation or a compatible climate control system.
• Firmware Updates: Includes a USB connector for firmware updates.
• Indicators: Four LEDs on the top and front indicate various device statuses and applications.
• Authorized Personnel: Only qualified individuals should perform installation, maintenance, repair, or troubleshooting.
