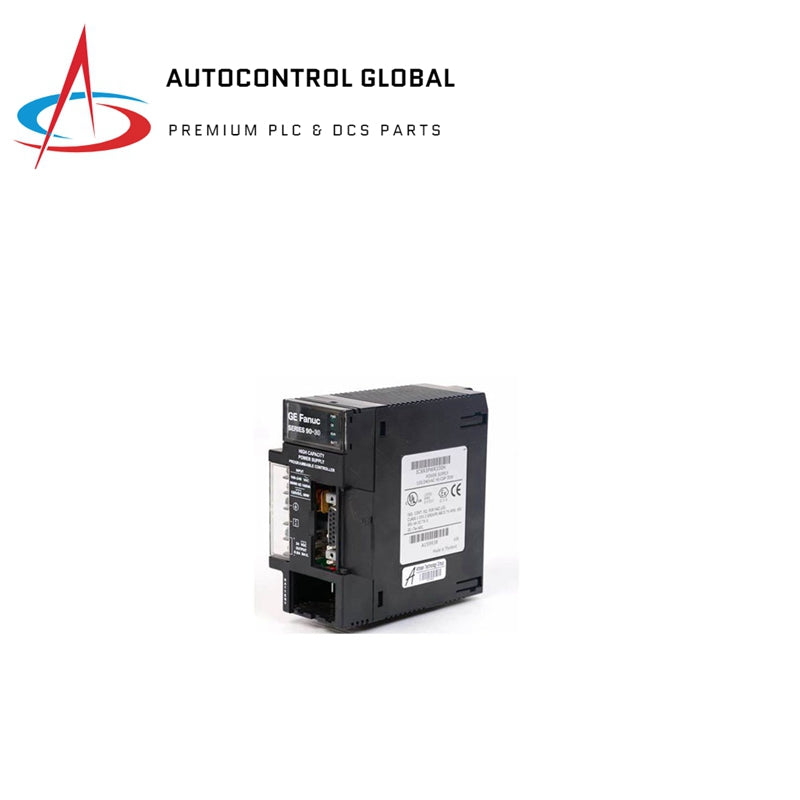

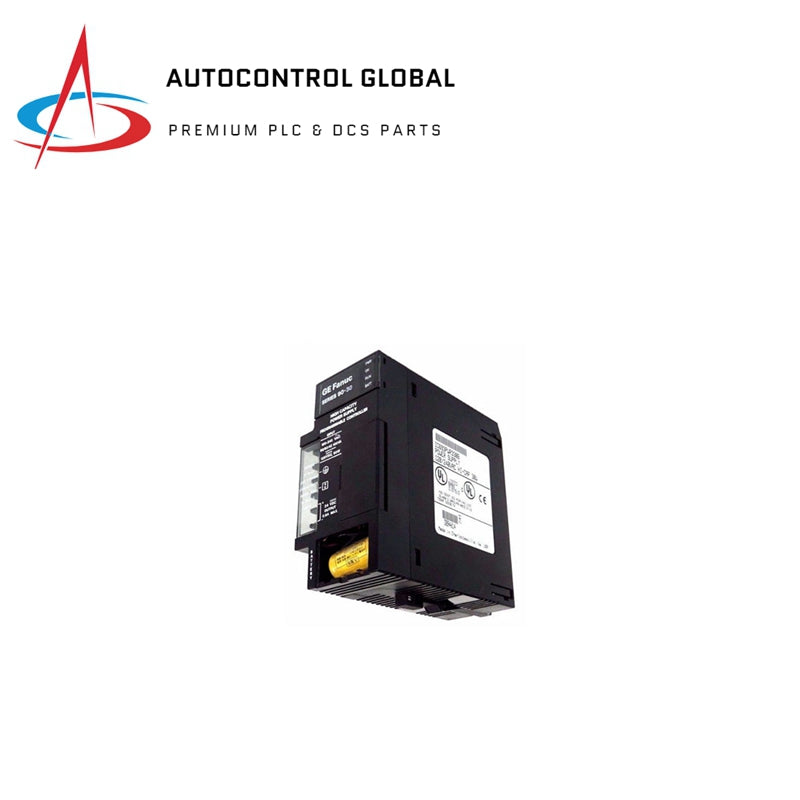

GE IC694PWR330 PACSystems RX3i Power Supply Module

Description

The GE Fanuc RX3i IC694PWR330 power supply module is a high-capacity serial expansion power supply module that can run on AC and DC voltage. It needs to be installed in the serial expansion backplane of an RX3i PLC and it can operate with any RX3i CPU.

Specifications

• Part Number:IC694PWR330
• Compatibility:
  • PACSystems RX3i Serial Expansion Backplane (IC694 Series)
  • Occupies 1 Slot
• Input Voltage:
  • 120/240 Vac or 125 Vdc Nominal
  • Range: 85 to 264 Vac or 100 to 300 Vdc
• Load Capacity:30 W Total, All Loads
• Isolation (Input to Backplane):1500 Vac for 1 minute
• Wiring:14 AWG to 22 AWG, 2 wires per terminal
• LED Indications:Power, OK, Run
• Load Sharing & Redundancy:NO
• Environmental:
  • Operate: 0 to 60°C (32 to 140°F)
  • Storage: -40 to +85°C (-40 to 185°F)
  • 5 to 95% humidity, non-condensing
• Agency Approvals:UL, CE, ATEX, CCC, Marine (ABS, DNVGL)
• Options:Conformal Coated: IC694PWR330CA
