GE IS200TRPGH1BDE Printed Circuit Board In Stock

Product Review

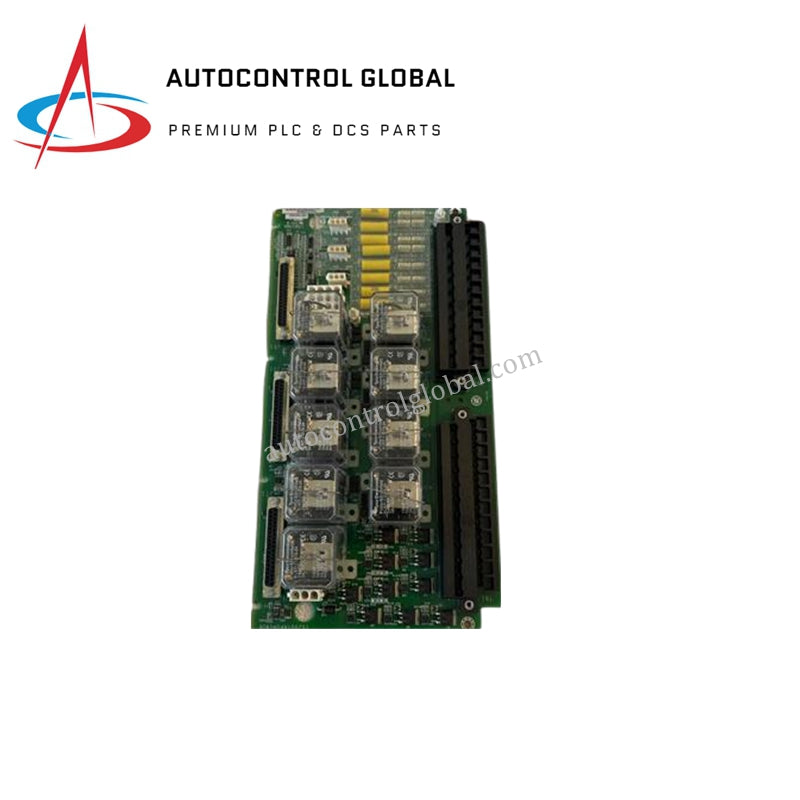

The IS200TRPGH1BDE is a printed circuit board (PCB) designed by General Electric for use in the Mark VI series gas turbine control systems. This module features robust construction and a variety of components that ensure reliable operation in industrial environments. The IS200TRPGH1BDE includes two large black terminal blocks on its left side, each containing 24 silver metal terminals, providing a total of 48 terminals numbered from 1 to 48. Additionally, it contains various capacitors located on the bottom half of the board, including eight solid yellow capacitors arranged vertically in the center and two vertical rows of small white capacitors to their left. These components work together to manage electrical signals and power distribution, ensuring stable and efficient turbine operations.

Specification

• Part Number: IS200TRPGH1BDE
• Manufacturer: General Electric (GE)
• Product Type: Printed Circuit Board (PCB)
• Series: Mark VI
• Terminal Blocks: Two large black terminal blocks
  • Number of Terminals per Block: 24
  • Total Number of Terminals: 48
  • Terminal Numbering: 1-24 and 25-48
• Capacitors:
  • Yellow Capacitors: Eight solid yellow capacitors arranged vertically at the bottom center
  • White Capacitors: Two vertical rows of small white capacitors to the left of the yellow capacitors
• Operating Temperature: Not specified (typically suitable for industrial environments)
• Power Supply: Not specified (compatible with standard industrial power supplies)
• Dimensions: Not specified (standard PCB size for rack mounting)
• Weight: Not specified (designed for easy installation in standard racks)

Feature

Large Black Terminal Blocks

The IS200TRPGH1B features two large black terminal blocks on its left side, each equipped with 24 silver metal terminals. These terminals are numbered sequentially from 1 to 24 and 25 to 48, facilitating easy identification and wiring. The robust design of these terminal blocks ensures reliable connections and durability in demanding industrial settings.

Capacitor Array

Located on the bottom half of theIS200TRPGH1BDE , a variety of capacitors help manage electrical signals and power distribution. A vertical line of eight solid yellow capacitors is centrally positioned at the bottom of the board, providing essential filtering and stabilization. To the left of these yellow capacitors, there are two vertical rows of small white capacitors, further enhancing signal integrity and power management.

Industrial Durability

Designed for use in industrial environments, the IS200TRPGH1BDE is built to withstand harsh conditions. While specific operating temperature ranges and dimensions are not provided, its robust construction and component layout ensure reliable performance in typical industrial settings.
