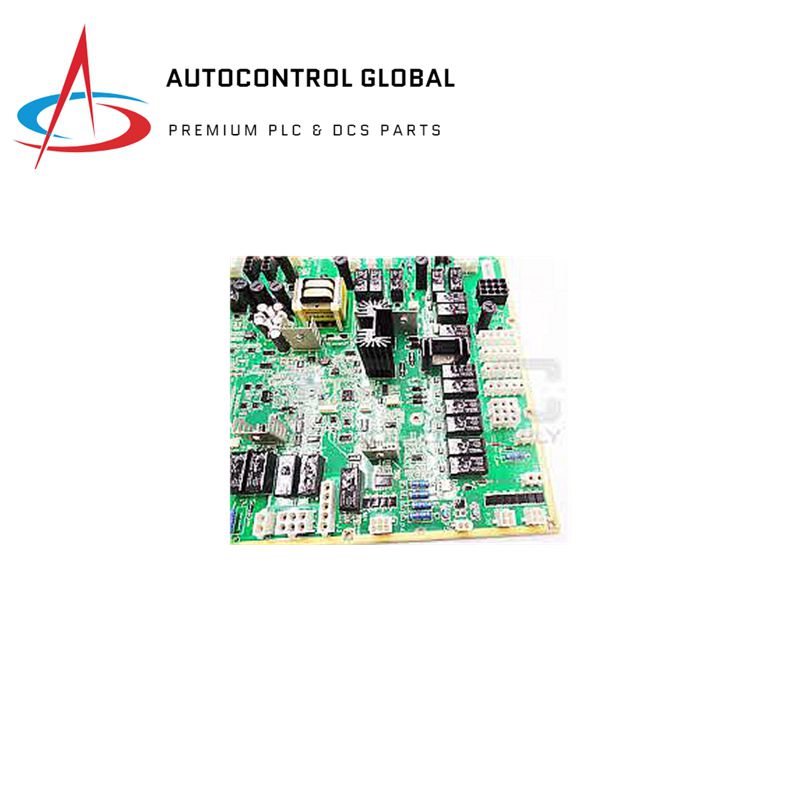

GE IS200WETBH1BAA Mark VI Printed Circuit Board

Description

The IS200WETBH1BAA is a component created by GE for use within the Mark VI system. The Mark VI is part of the Speedtronic series, which is a gas/steam turbine management series developed by General Electric. This board is used to improve the running efficiency of turbine systems through reliable management.

Features

• Component-dense board
• Exposed copper strip factory drilled at regular intervals
• 65+ plugs and connectors
• Three vertical male connectors (P1: 10-pin, P2: 6-pin, P3: 4-pin)
• Single transformer component
• Over thirty relays of two different types
• Fuses, jumpers, heat sinks, voltage regulators, coil inductors, TP test points, and a single switch component
• Over fifty integrated circuits
• Uses varistors and high voltage electrolytic capacitors
• Metal film resistors

Technical Specifications

• Model Number: IS200WETBH1BAA
• Connector Types:
  • Plugs: Ranging from 2 to 20 positions
  • Female Jacks: Ranging from 4 to 12 positions
  • Male Connectors: P1 (10-pin), P2 (6-pin), P3 (4-pin)
• Power Supply: 24V DC (±10%)
• Input Channels: 8 analog input channels, 16-bit resolution
• Output Channels: 8 analog output channels, 16-bit resolution
