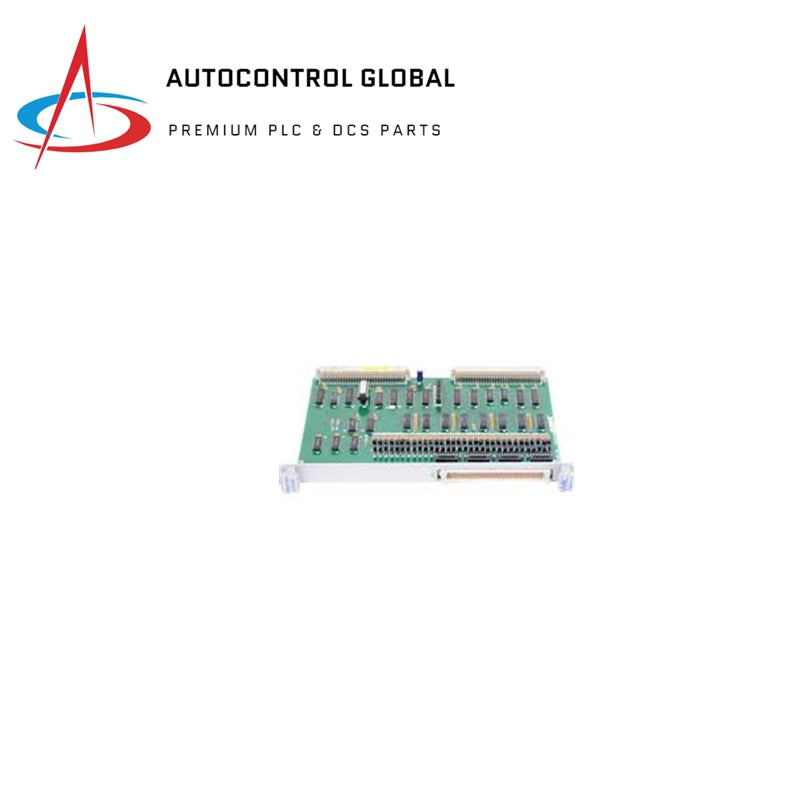

GE VMIVME2170A 332-102170-110 32-bit Optically Isolated Digital Output Board

Description

The GE VMIVME2170A 332-102170-110 is a 32-bit optically isolated digital output board designed specifically for GE’s VMIVME industrial computing systems. It is used to control external devices (such as relays and solenoids) based on digital signals from the VMIVME system. The board provides 32 optically isolated outputs, each capable of switching up to 2 amps of current.

Features

• 32 optically isolated outputs
• Output current: 2.5 mA or 300 mA
• Externally supplied pull-up voltage for maximum isolation
• Field-configurable pull-up resistors
• Source or sink output capability with low current option
• High output voltage tolerance up to 30 V in normal mode
• High isolation potential: 1 kV sustained, 6 kV pulsed
• Positive or negative true options
• 8- or 16-bit data transfers
• On-board 14-bit address selection DIP switches
• Double Eurocard format with front panel
• Selectable nonprivileged or supervisory short I/O transfers

Technical Specifications

• Board Function: 32-bit optically isolated digital output board, designed and optimized specifically for the VMEbus.
• Compatibility: The VMIVME-2170A is a standard double-height VME printed circuit board and is electrically and mechanically compatible with the VMEbus.
• Addressing Scheme: Addressable as four 8-bit ports or two 16-bit registers, located on any 32-bit boundary within the short supervisory or short nonprivileged I/O space.
• Board Address: Selected by 14 on-board DIP switches.
• VMEbus Access: Supports either short supervisory or nonprivileged short I/O access.
• Data Transfer Type: D16, D8(EO)
• Access Time: 250 ns maximum.
