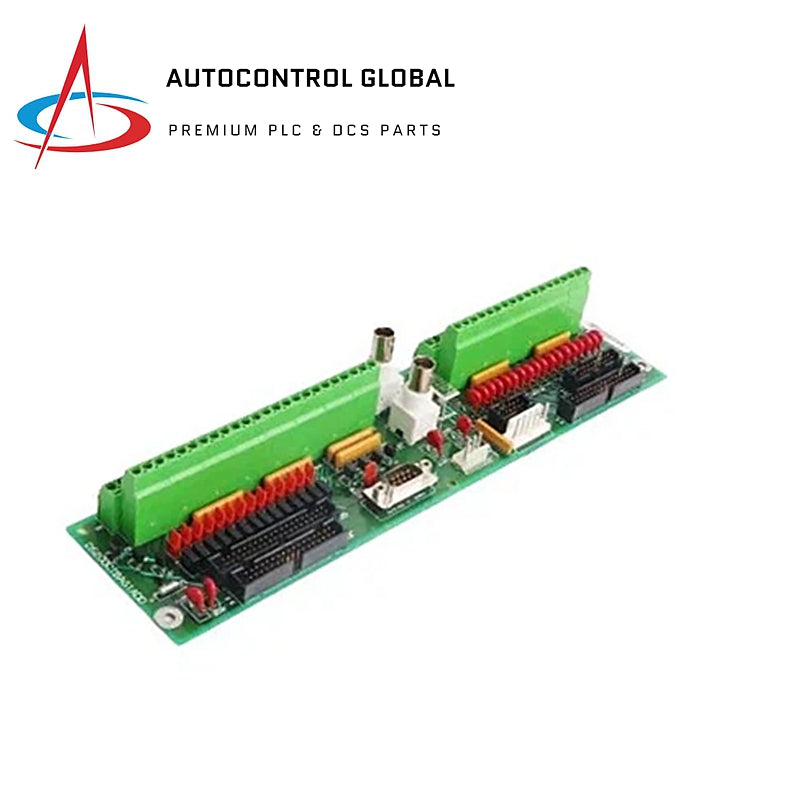

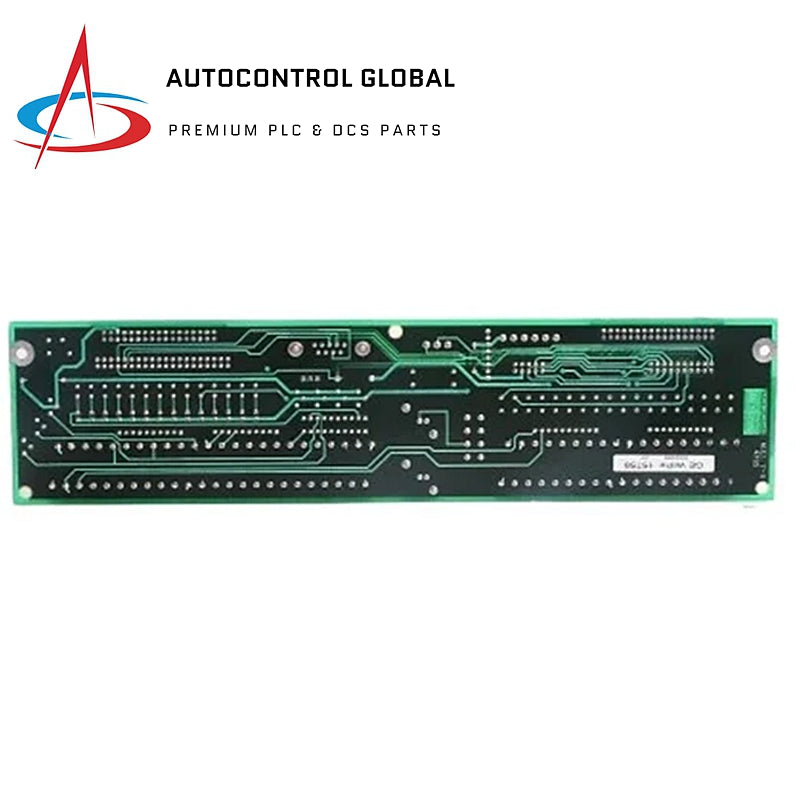

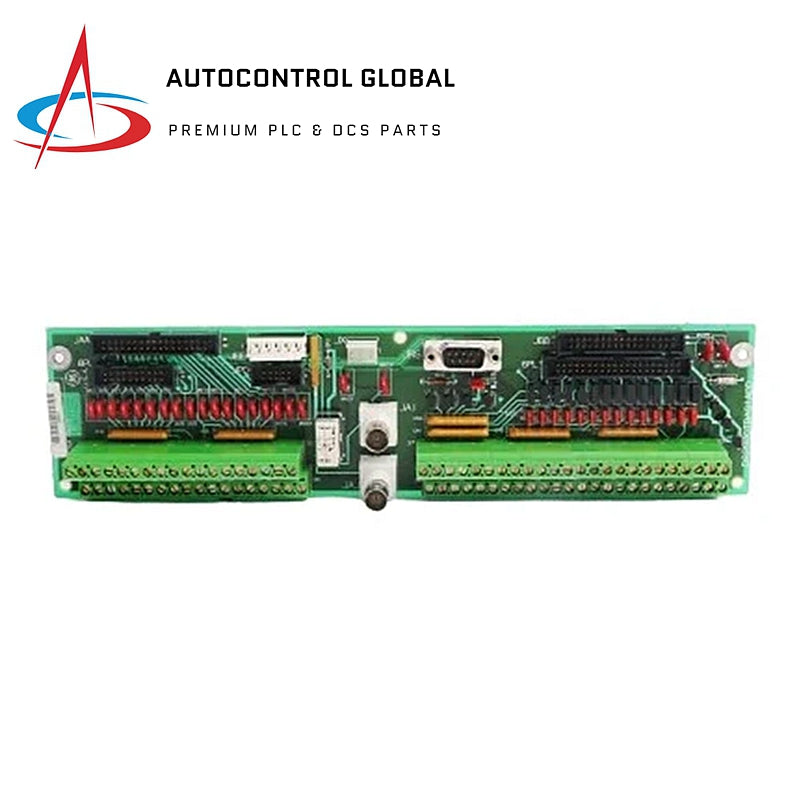

General Electric | DS200CTBAG1ADD | Terminal Board

Overview

The DS200CTBAG1ADD Terminal Board is a component manufactured by General Electric for use in their Mark V Series of turbine control systems. It plays a crucial role in the GE Mark V Speedtronic system, which is designed for controlling large and small gas and steam turbine systems.

Features

• Analog Termination Module: Functions as an analog termination module in the Speedtronic system.
• Multiple Connectors: Includes COREBUS connectors (JAI and JAJ), terminal strips, pin cable connectors, and a 9-pin male serial connector.
• Voltage Regulation: The board is equipped with standard voltage-limiting hardware, including red-coated diodes for voltage regulation.
• Mounting Options: Features drilled holes for mounting hardware and connections, making installation flexible and easy.

Technical Specifications

• Manufacturer: General Electric
• Series: Mark V
• Part Number: DS200CTBAG1ADD
• Type: Terminal Board / Analog Termination Module
• Connectors:
  • Two COREBUS connectors (JAI and JAJ)
  • Two double-stack terminal strips
  • Five vertical pin cable connectors
  • Two vertical pin header connectors
  • 9-pin male serial connector
• Location: Typically located within the <R5> core of the Speedtronic system.
• Voltage Regulation: Managed by Mark V Series standard voltage-limiting components.
