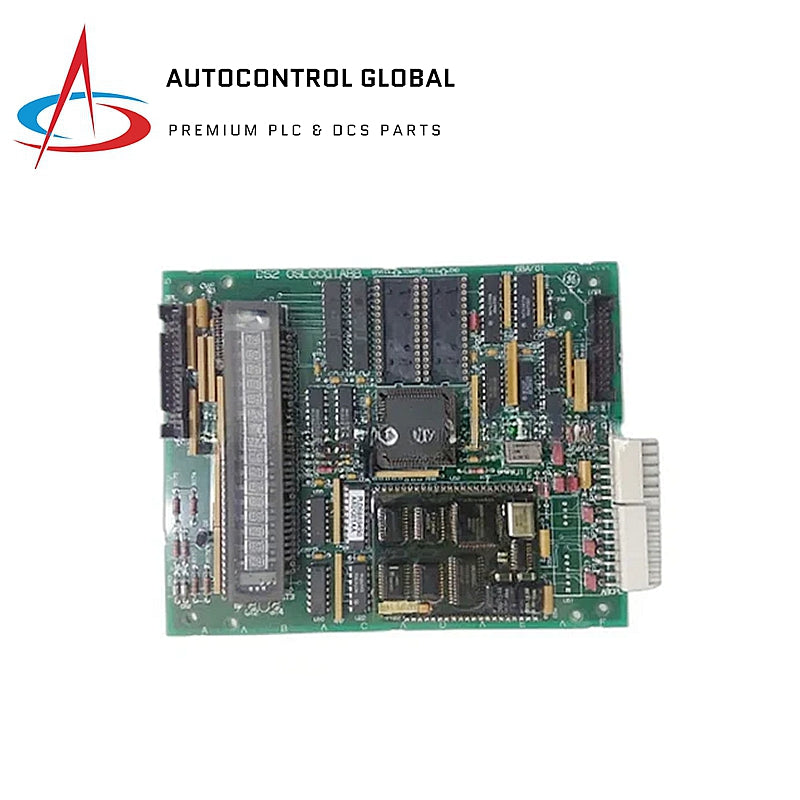

General Electric | DS200SLCCG1AHH | LAN Communication Module

Overview

The DS200SLCCG1AHH LAN Communication Module, manufactured by General Electric, is designed for the Mark V Speedtronic Series. This module features a 16-digit alphanumeric display and is essential for LAN communications within various drive assemblies.

Features

• Manufacturer: General Electric
• Product Series: Mark V Speedtronic
• Alphanumeric Part Number: DS200SLCCG1AHH

Hardware Specifications

Module Description

• Type: LAN Communications Module
• Display: 16-digit alphanumeric display mounted on the surface.

Installation Notes

• EPROM Installation:
  • This module typically does not come with software EPROMs (U6 and U7) installed.
  • Remove EPROMs from the old board for installation on the new board.

Assembly and Interface

• Mounting:

  • The DS200SLCCG1AHH module mounts on the SDCC module within the Mark V system.
  • Interfaces through a ribbon connector attached to the KPPL connector on the SLCC board.

• Covering:

  • The SDCC cover snaps over the SLCC module, keeping the display visible.

Additional Components

• Jumpers:

  • While there are several jumpers, the pin-like structures at the end of the display are protective and not functional jumpers.

• Voltage Limiting:

  • Includes standard voltage-limiting components such as:
    • Resistors
    • Diodes
    • Resistor network arrays
    • Capacitors
