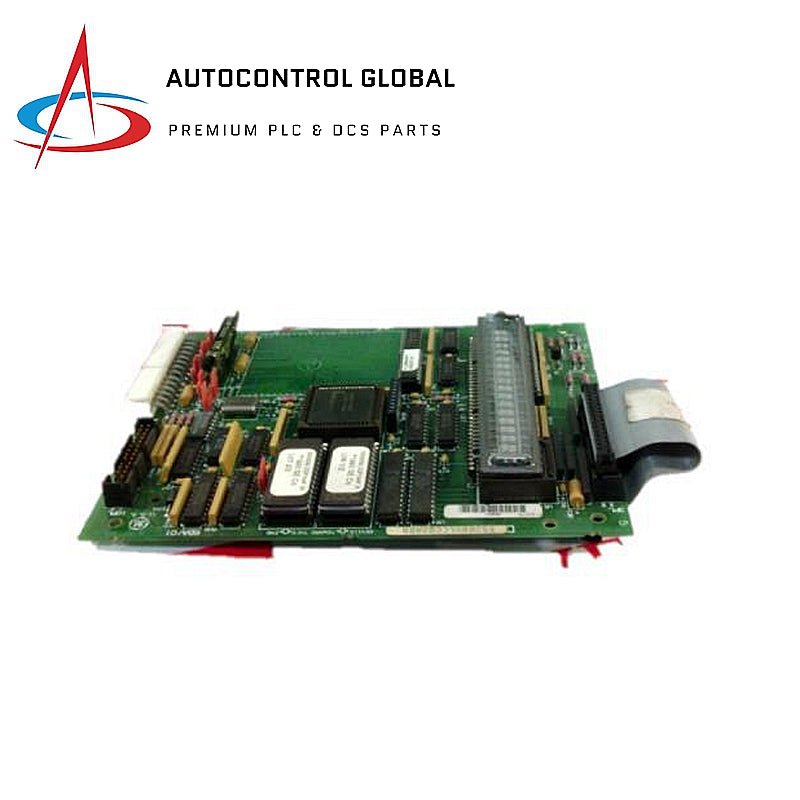

General Electric | DS200SLCCG3ADC | LAN Communication Card

Overview

The DS200SLCCG3ADC LAN Communications Card, manufactured by General Electric, is part of the Mark V Turbine Control System Series. This card facilitates local area network (LAN) communication and is essential for various drives across the GE brand.

Features

• Manufacturer: GE Boards and Turbine Control
• Series: Mark V DS200
• Part Number: DS200SLCCG3ADC

Hardware Specifications

Model Description

• Type: LAN Communications Card
• Functionality: Provides the necessary space for processing LAN communication signals.

Assembly and Interface

• LAN Control Processor (LCP): Signals sent to the board are filtered through the onboard LCP.
• Memory Storage: The board features two removable EPROM memory cartridges for LCP program storage.
• Communication: Supports both isolated and non-isolated circuits for communication signals.
• Keypad Programmer: Includes an attachable alphanumeric keypad for easy access to system settings and controls.
• Interfacing: The drive’s control board can communicate with the LCP using dual-ported RAM.

Protection Features

• The DS200SLCCG3ADC includes four posts designed to protect the evacuation point, specifically the glass cover of its standard display.
