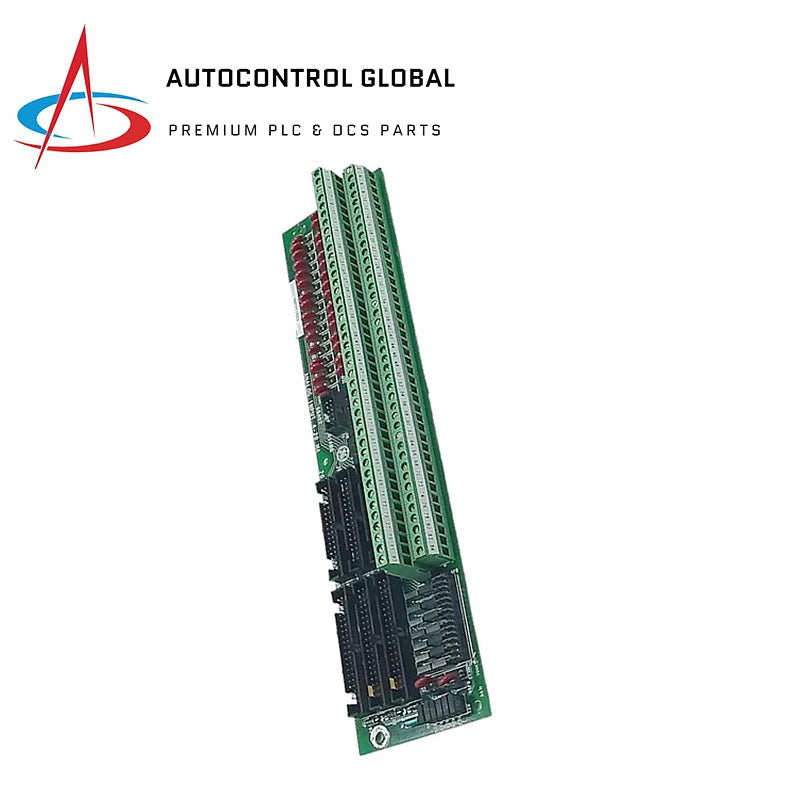

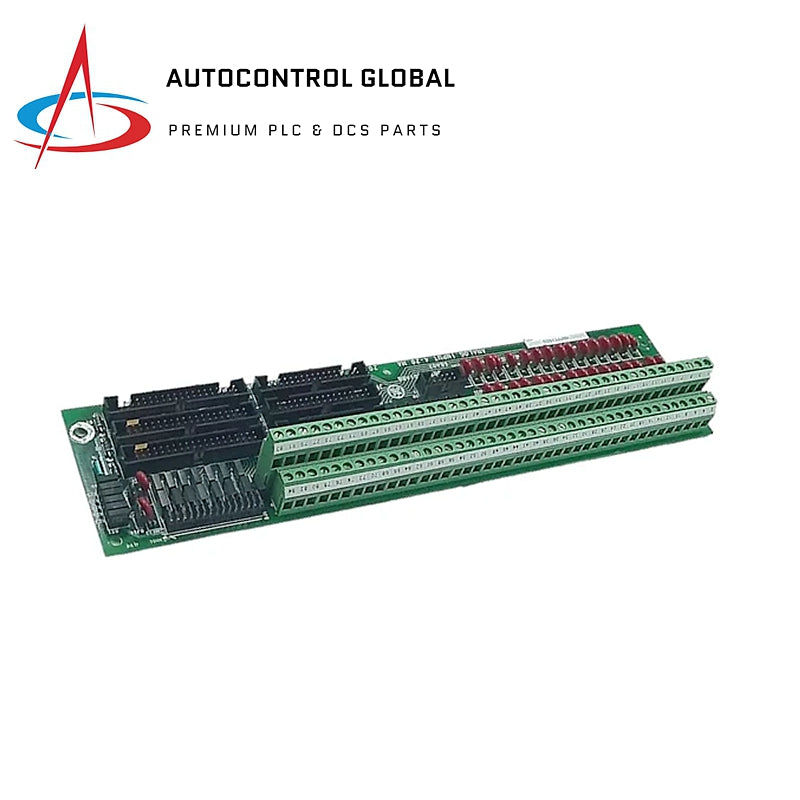

General Electric | DS200TBQFG1BBB Analog I/O Board

General Information

The DS200TBQFG1BBB is an Analog I/O Board from General Electric, designed for use in the Mark V Speedtronic control system. It provides essential signal conditioning and processing, supporting a range of industrial automation applications.

Features

• Mixed Signal Functionality: Seamlessly bridges the analog and digital domains, offering accurate data processing across both signal types.
• Flexible I/O Support: Accommodates both analog and digital inputs and outputs, ensuring adaptability in diverse operational setups.
• High-Performance Design: Optimized to perform reliably under demanding industrial conditions, maintaining precision and durability.
• Compact Form Factor: Designed for space-saving installation, it ensures easy integration into various control systems.

Technical Parameters

• Part Number: DS200TBQFG1BBB
• Category: Controls & Indicators
• Subcategory: I/O Module
• Weight: 1.5 lbs (0.68 kg)
• Input Voltage Range: -10 to +110 VDC
• Input Current Range: 0 to 22 mA
• Output Voltage Range: 0 to 10 VDC
• Output Current Range: 0 to 20 mA
• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -40°C to +85°C
• Vibration Resistance: 5 to 500 Hz

Environmental and Performance Requirements

• Temperature Tolerance: Operates in extreme environments, with temperature ranges from -40°C to +85°C, suitable for harsh industrial settings.
• Vibration Resistance: Ensures stable operation in environments subject to mechanical vibrations (5 to 500 Hz).
