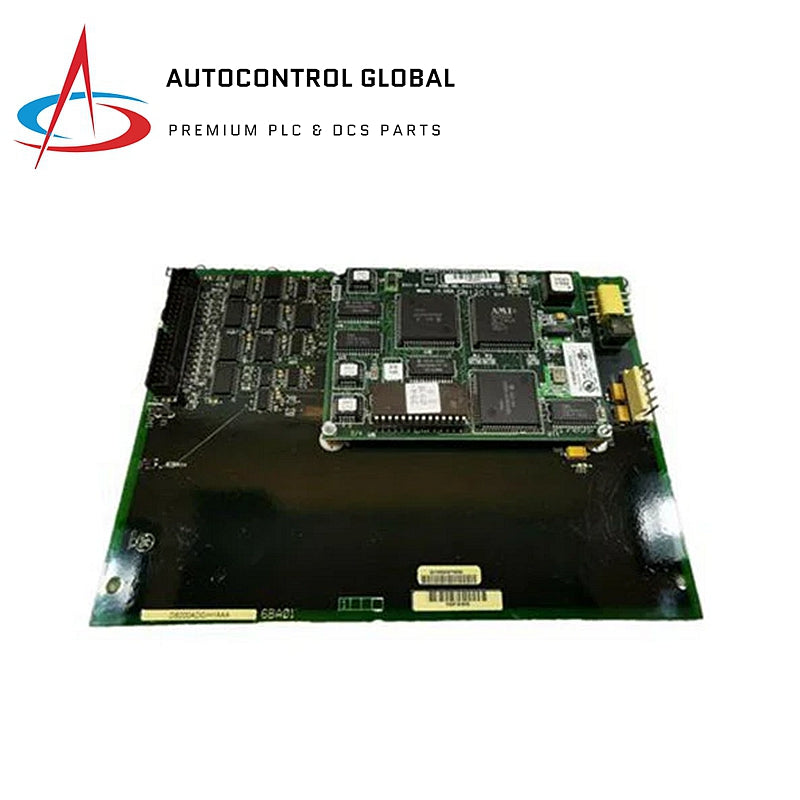

General Electric DS200TCQCG1BGK | RST Analog I/O Board
Manufacturer: GE Fanuc
-
Part Number: DS200TCQCG1BGK
Condition：New with Original Package
Product Type: RST Analog I/O Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The General Electric DS200TCQCG1BGK is an advanced RST Analog I/O Board designed for GE's Mark V turbine control systems. This module provides precise control and monitoring, making it integral for industrial automation and turbine operations.
Technical Specifications
- Rated Voltage: 24 VDC
- Input Channels: 12 analog, 4 digital
- Output Channels: 8 analog, 4 digital
- Signal Range: 0-5V, 0-10V for analog inputs; 4-20mA for analog outputs
- Accuracy: 0.1% full-scale for analog signals
- Response Time: < 0.5 ms for digital inputs
- Sampling Rate: 2 kHz per channel
Environmental Conditions
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 90% RH, non-condensing
Mechanical Specifications
- Mounting: DIN rail or panel mount
- Material: Industrial-grade polymer enclosure
- Vibration Resistance: 6 g rms, 10 Hz to 200 Hz
Dimensions and Weight
- Length: 210 mm
- Width: 150 mm
- Height: 40 mm
- Weight: 0.8 kg
