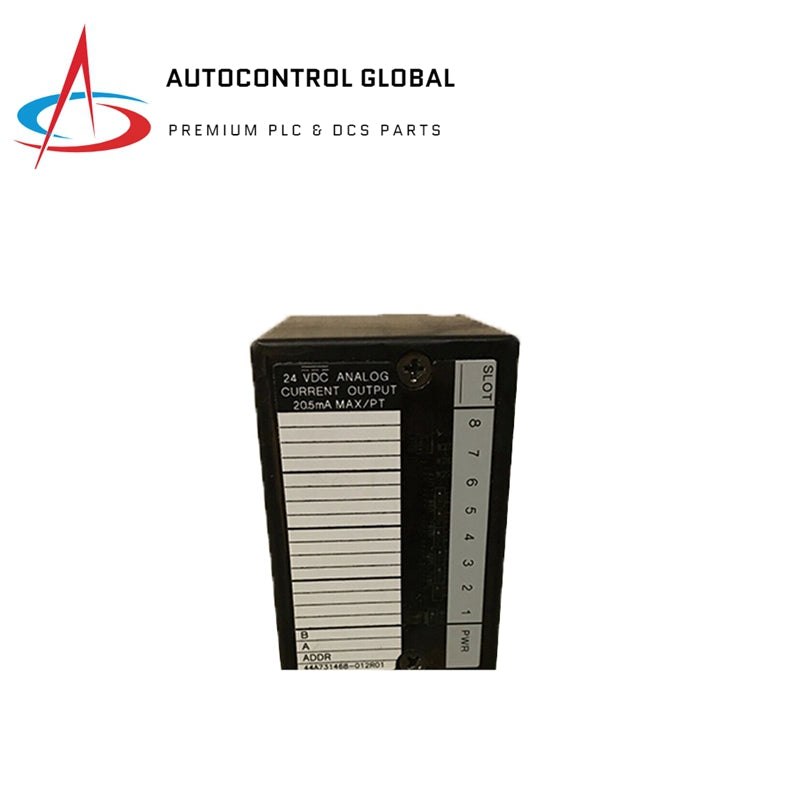

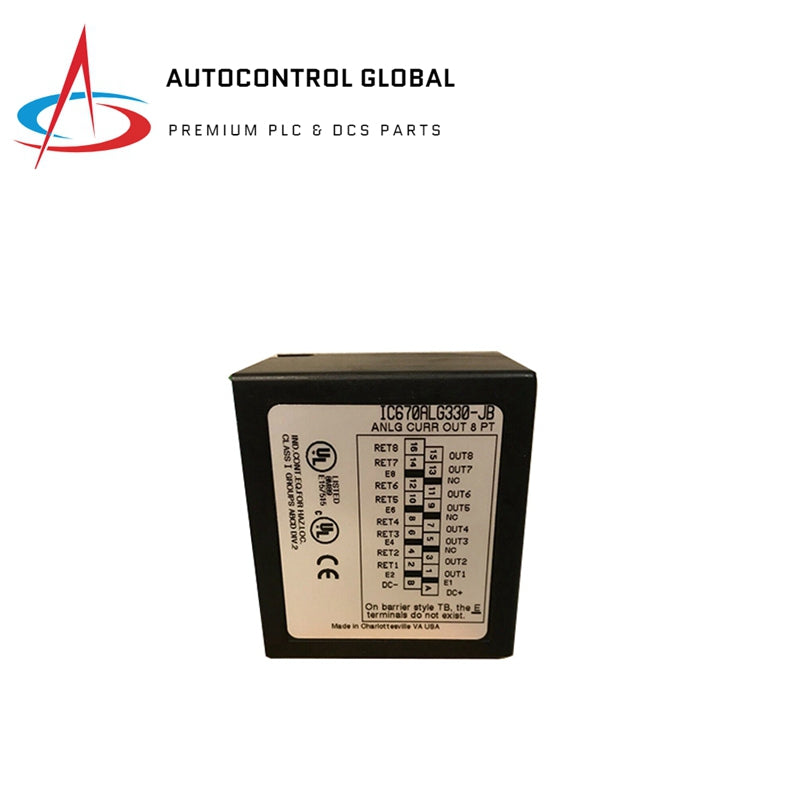

General Electric | IC670ALG330 | Analog Output Module

Description

The GE IC670ALG330 is an 8-point analog current-source output module designed for industrial control applications. It belongs to the GE Fanuc Field Control Series, providing a reliable interface between a control system and external devices requiring analog current signals.

Key Features

• Eight Independent Output Channels: Each channel delivers a 0-20mA current signal for precise control of external devices.
• High Resolution: 16-bit resolution ensures accurate control with minimal signal variation.
• Fast Update Time: With a typical update time of 1.5ms, the module offers excellent responsiveness for real-time control applications.

Technical Specifications

• Number of Channels: 8
• Output Type: Current Source
• Output Range: 0-20mA
• Resolution: 16 bits
• Update Time: 1.5ms (typical)
