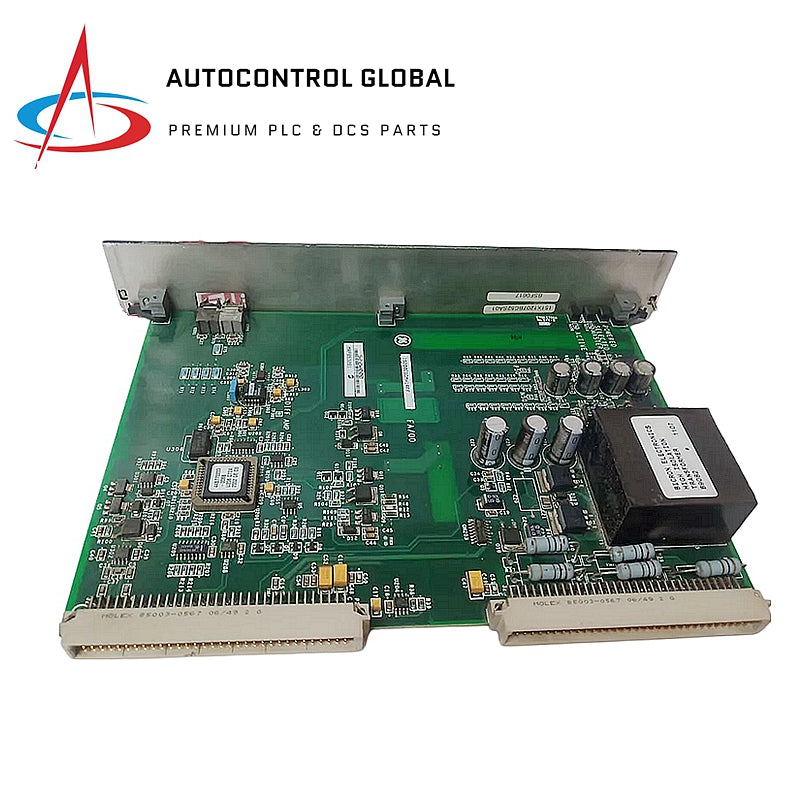

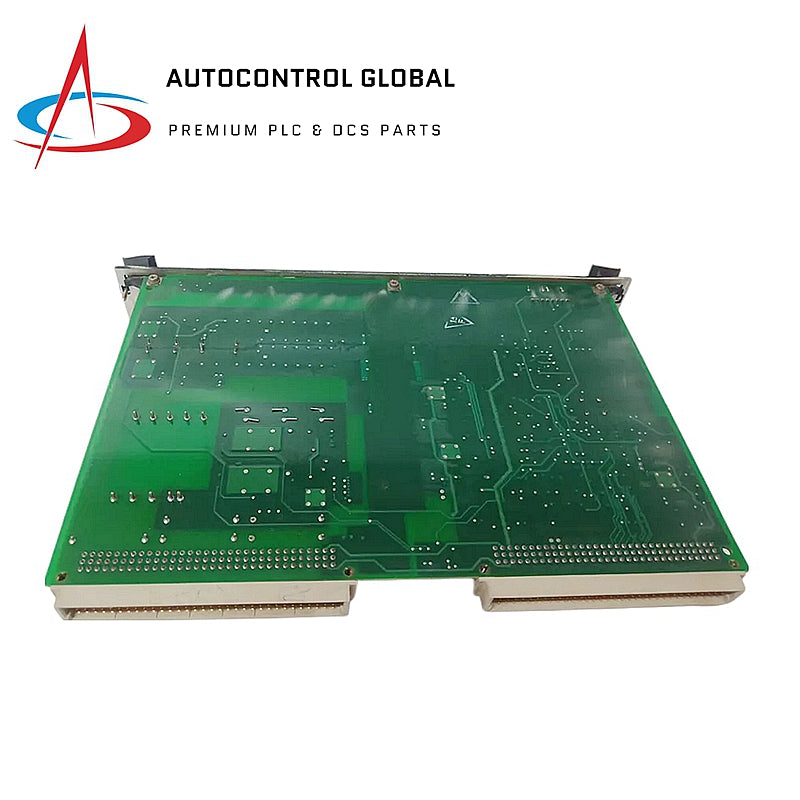

General Electric | IS200EGDMH1AEF | Exciter Field Ground Detector Module

Manufacturer: GE Fanuc
Part Number: IS200EGDMH1AEF
Condition：New with Original Package
Product Type: Exciter Field Ground Detector Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Overview

The IS200EGDMH1AEF Exciter Field Ground Detector Module by General Electric is part of the Mark VI turbine control system, designed to detect ground leaks in excitation control systems.

Specifications

Model Number: IS200EGDMH1AEF
Function: Exciter Field Ground Detector
Input Voltage: 125 VDC
Output Signal: 4-20 mA
Response Time: 2 ms
Isolation Voltage: 2500 V RMS
Temperature Coefficient: 50 ppm/°C
Accuracy: ±0.25% of full scale
Connector Type: Terminal block
Mounting Type: Panel mount
Enclosure Material: Metal
Ingress Protection: IP40
Humidity Range: 10% to 95% RH (non-condensing)

Features

Surge Protection: Integrated for system reliability.
Compliance: Meets IEEE and IEC standards.
Diagnostics: Real-time monitoring and fault diagnostics.
Indicators: LED indicators for status and faults.
Firmware Update: Field-upgradable via front port.
