General Electric IS200EISBH1AAC | Exciter ISBus Board

Overview

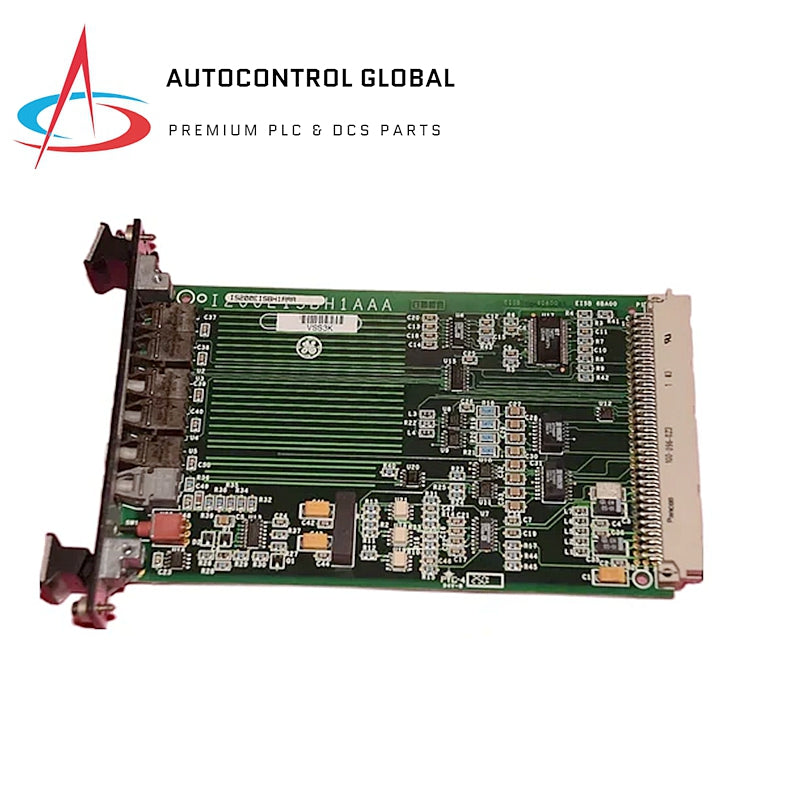

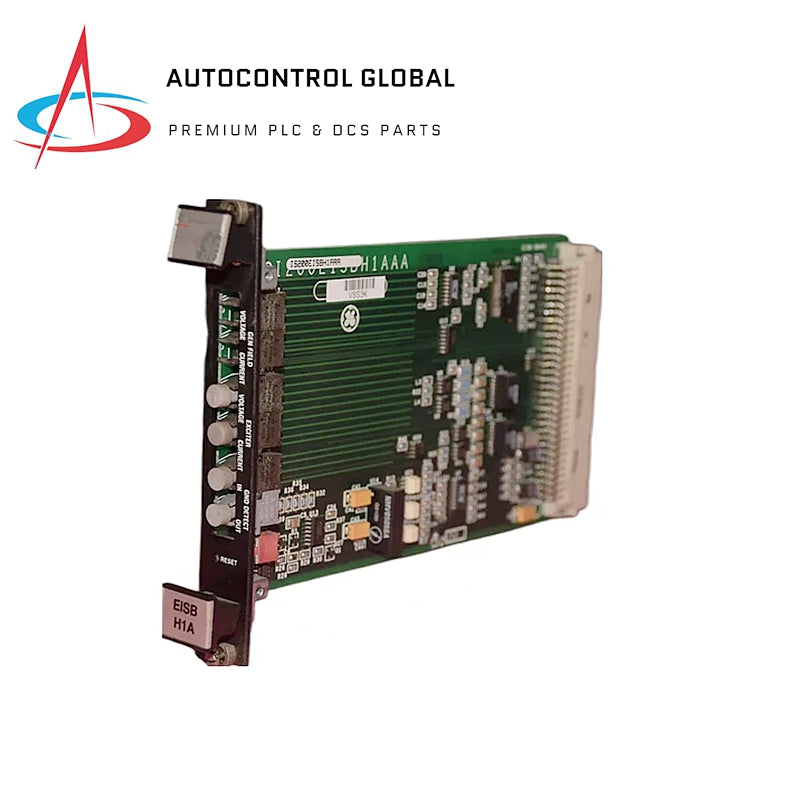

The IS200EISBH1AAC Exciter ISBus Board is part of GE’s EX2100 control system, handling fiber-optic feedback signals for DSPX controllers. It ensures efficient signal management, real-time communication, and enhances system reliability.

Technical Specifications

• Operating Temp: -30°C to 65°C
• Module Type: Single-slot, 3U
• Fiber-Optic Connectors: For generator field signals and ground detection.
• Power Supply: +24 V DC and return for keypad.

Connectivity

• Keypad & Tool Port: RS-232C drivers for data exchange.
• Input/Output: Generator field DC voltage, current inputs, and ground detection connections.

Installation

• Placement: Positioned under DSPX in the control rack for easy access.
• Redundancy: Supports redundant exciters through ISBus.

Additional Information

• Functionality: Facilitates real-time monitoring, control, and communication for GE’s exciter systems.
• Compatibility: Works with M1, M2, and C controllers within the EX2100 system.
