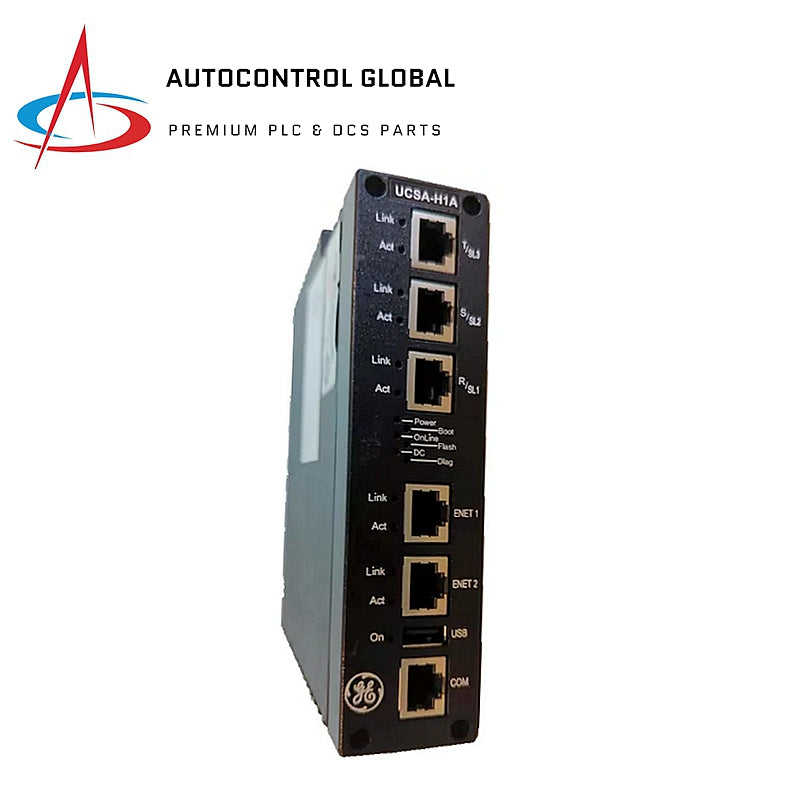

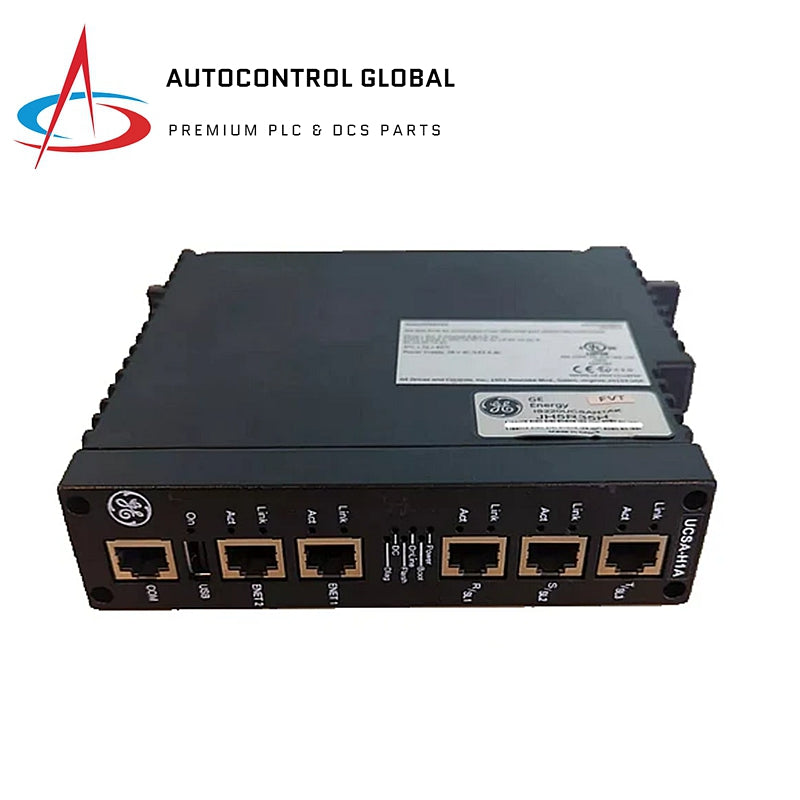

General Electric | IS220UCSAH1A | Embedded Controller Module

Overview

The IS220UCSAH1A is an Embedded Controller Module from General Electric's Mark VIe Series, designed for GE Distributed Gas Turbine Control Systems. It manages application code, connects with I/O modules via a dedicated IONet interface, and runs on the QNX Neutrino operating system.

Features

• Microprocessor: Freescale Power PC (667 MHz)
• Memory: 256 MB DDR SDRAM
• Power Requirements: 18-32 V DC, 12.5 Watts typical
• Operating System: QNX Neutrino
• Connectivity: Ethernet, USB, 6 female jack connectors
• LED Indicators: Provide real-time operational feedback

Technical Specifications

• Software: ControlST V04.03.18C
• Humidity Range: 5% to 95% (non-condensing)
• Weight: 2 lbs
• Storage: Compact Flash
• Temperature Tolerance: 0°C to 65°C
• Environment Compatibility: Suitable for NFPA Class 1, Div. 2 hazardous areas

Installation and Use

• Connectivity: Facilitates integration with Mark VI, Mark VIe, and EX2100 systems.
• Cooling: Fanless design, easy installation and maintenance.
