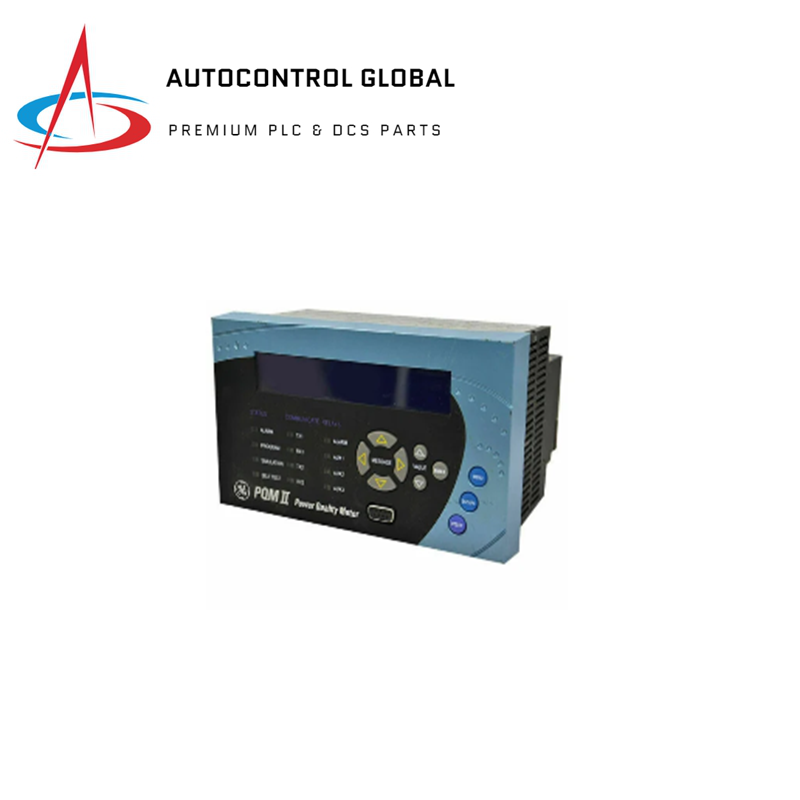

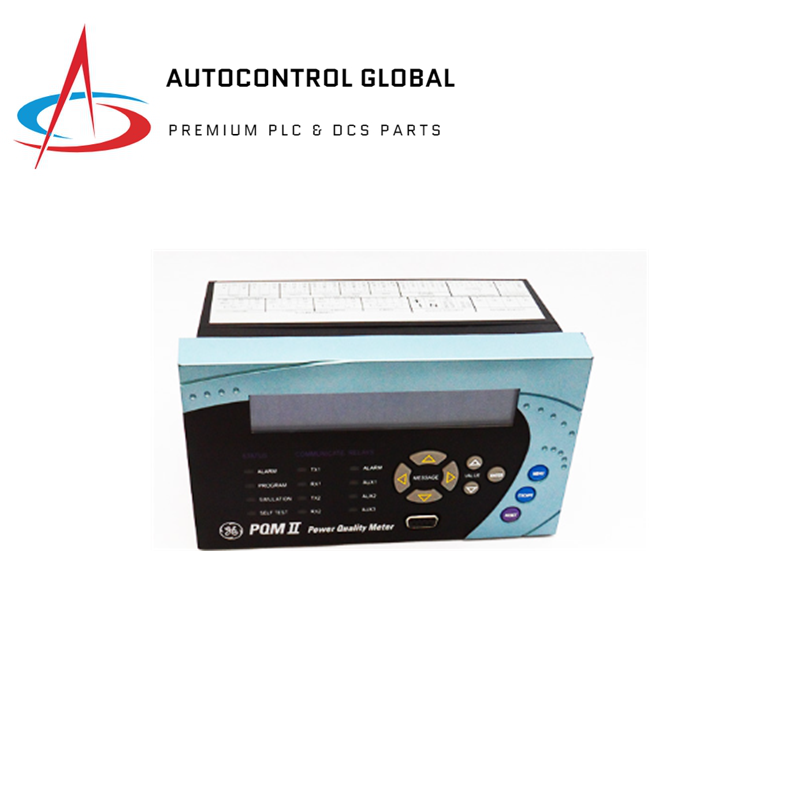

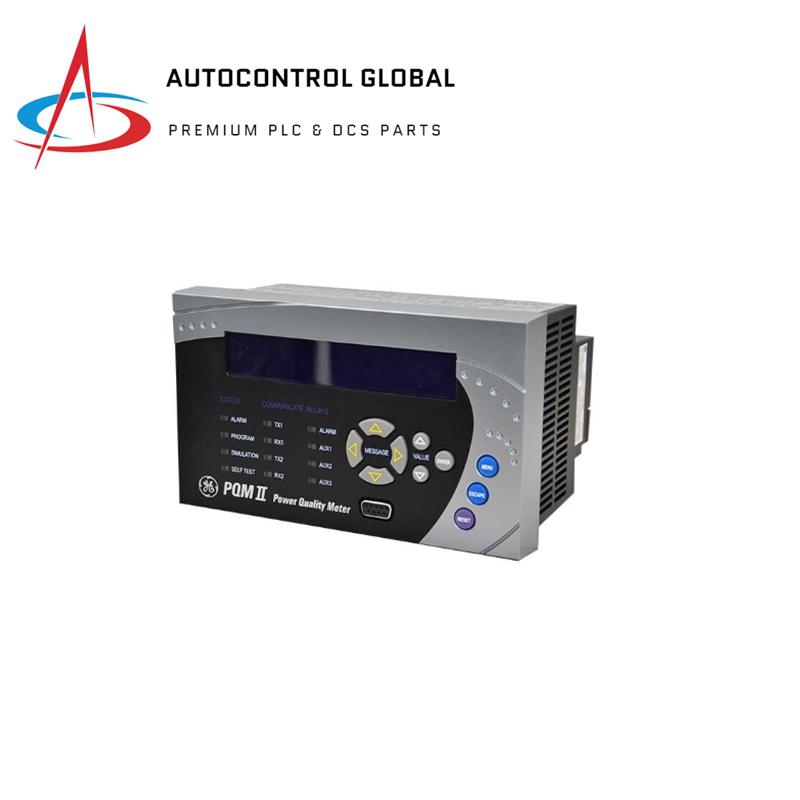

General Electric PQMIIT20CA Power Quality Meter

Description

• Part of the PQM II series by GE Grid Solutions
• Provides accurate and reliable three-phase power metering
• Suitable for applications such as metering distribution feeders, transformers, generators, and motors

Features

• Monitors current, voltage, real and reactive power, energy use, cost of power, power factor, and frequency
• Programmable setpoints and 4 assignable output relays for control functions
• Supports ModBus and DNP 3.0 protocols
• Event recorder for 150 events, data logger for 98,000 events, and Voltage Disturbance Recorder (VDR) for 500 events
• Harmonic analysis up to the 63rd harmonic with Total Harmonic Distortion (THD) and Total Interharmonic Distortion (TIF)

Specifications

• Power Supply: 20-60VDC / 20-48VAC, 50/60Hz, 20VA
• Analog Input: One 4 to 20 mA
• Output Relays: Four (4) output relays
• Switch Inputs: Four (4) switch inputs
• Isolated Analog Outputs: Four (4) isolated analog outputs
• Setpoints: Programmable for alarm or control purposes
• Communications: Modbus communication via 2 rear RS485 ports, 1 front RS232 port
