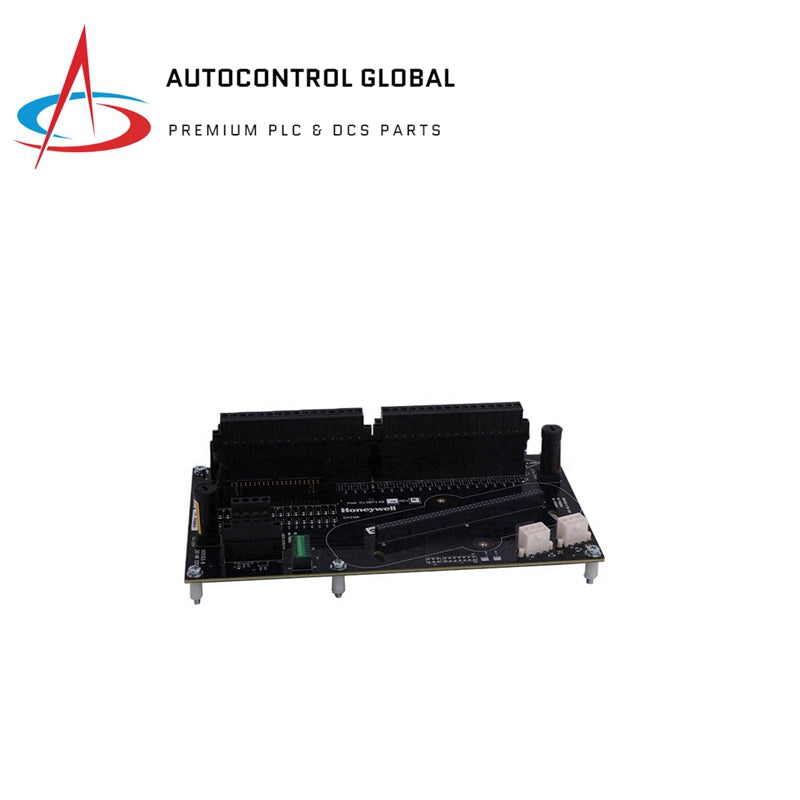

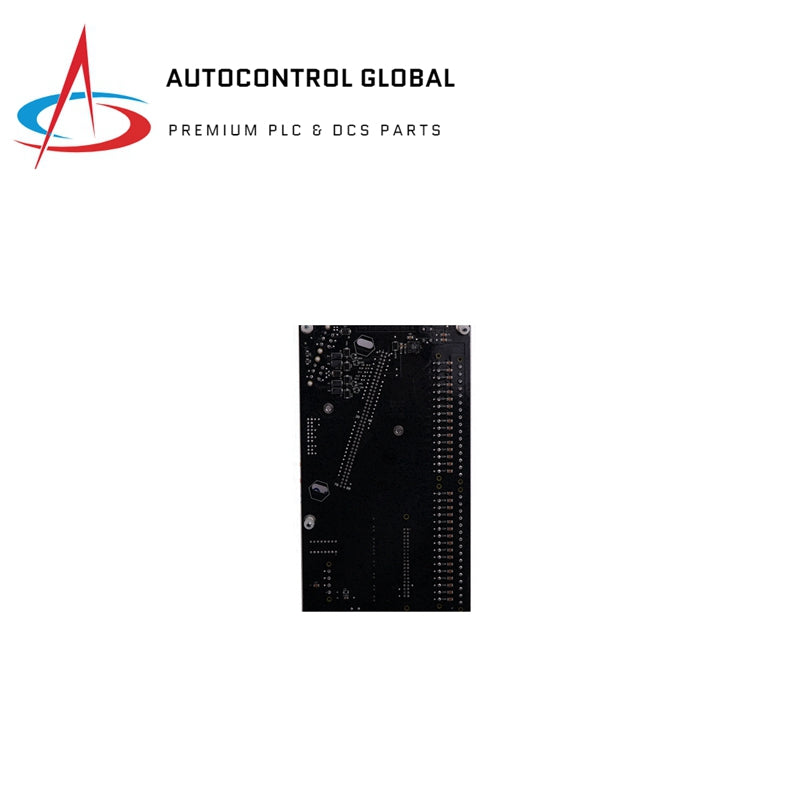

Honeywell 8C-TDODA1 Analog Output Module

Specifications

• Output Channels: 32

• Output Type: Source

• Voltage Rating: 24 VDC

• Module Current Rating: 105mA

• Load Voltage: 30 VDC Maximum

• Module Removal and Insertion Under Power: Supported

• Temperature:
  • Operating: 0 to 60 ℃
  • Storage: -40 to 85 ℃
• Load Current:
  • Short circuit protection for DO channel using series FUSEs in the output channel. One FUSE per eight channels. Total four (4) fuses for 32 channels on DO IOTA.
  • 100mA per channel (Max)
• Galvanic Isolation:
  • 1000 VAC RMS for System-to-Field isolation for user-supplied field power only.
  • No System-to-Field isolation for internal system power used for field sensing.
• On-State Voltage: 24 VDC (typ) (load current @ 0.1A max)

• Off-State Voltage: 0 VDC

• Off-State Leak Current: 5 µA (max)

• Turn-On/Turn-Off Time: 10 ms (max)

• Gap (0 current) of Output to Field on Switchover: None (0 ms) (applies to Redundancy only)
