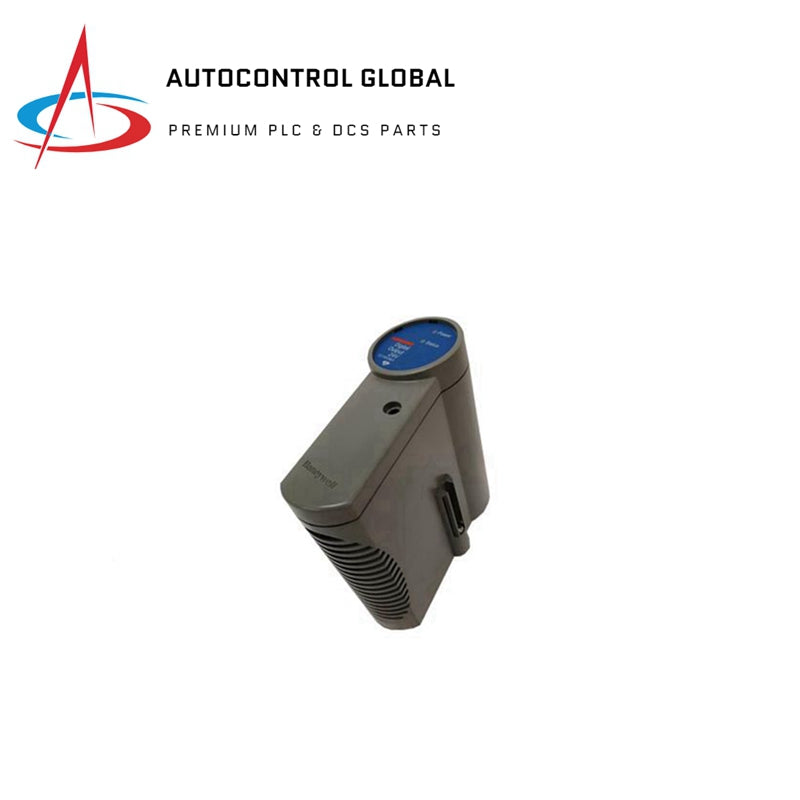

Honeywell CC-PAON01 51410070-175 Analog Output Module

Manufacturer: Honeywell
Part Number: CC-PAON01 51410070-175
Condition：New with Original Package
Product Type: Analog Output Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Specifications

Output Type: 4-20 mA
Output Channels: 16
Output Ripple: < 100 mV peak-to-peak at power line frequency, across 250 Ω load
Output Temperature Drift: 0.005% of Full Scale/°C
Output Readback Accuracy: ±4% of Full Scale
Output Current Linearity: ±0.05% of Full Scale nominal
Resolution: ±0.05% of Full Scale
Calibrated Accuracy: ±0.35% of Full Scale (25°C) including linearity
Directly Settable Output Current Range: 0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC): 800 ohms
Maximum Output Compliant Voltage (24 V supply = 22 VDC through 28 VDC): 16 V
Maximum Open Circuit Voltage: 22 V
Response Time (DAC input code to output): Settles to within 1% of final value within 80 ms

Features

Extensive self-diagnostics
Optional redundancy
Safe-state (FAILOPT) behaviors configurable on a per channel basis
Output read-back and alarm on discrepancy
Non-incendive output
