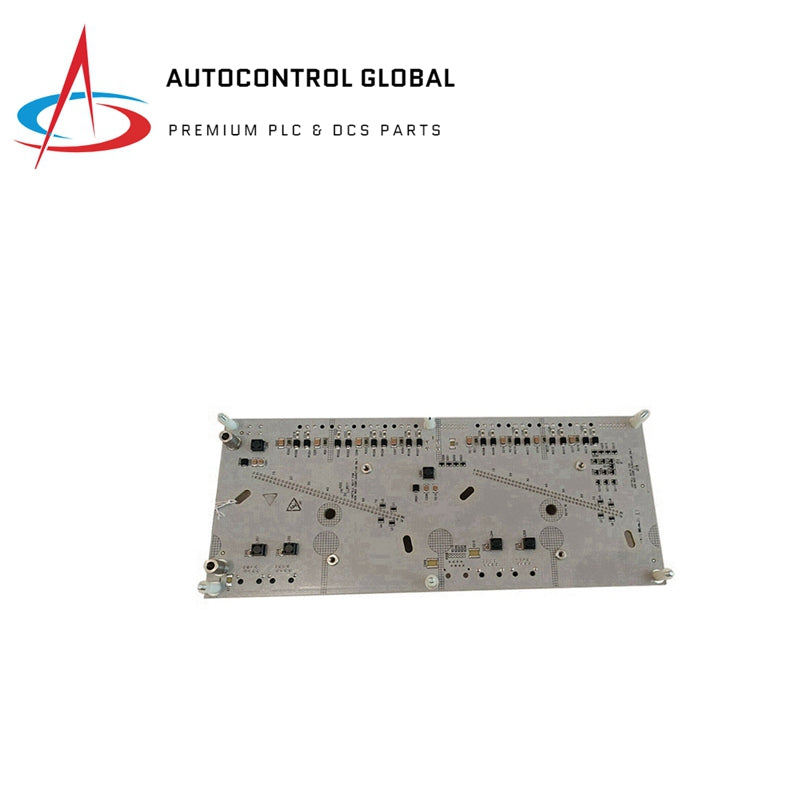

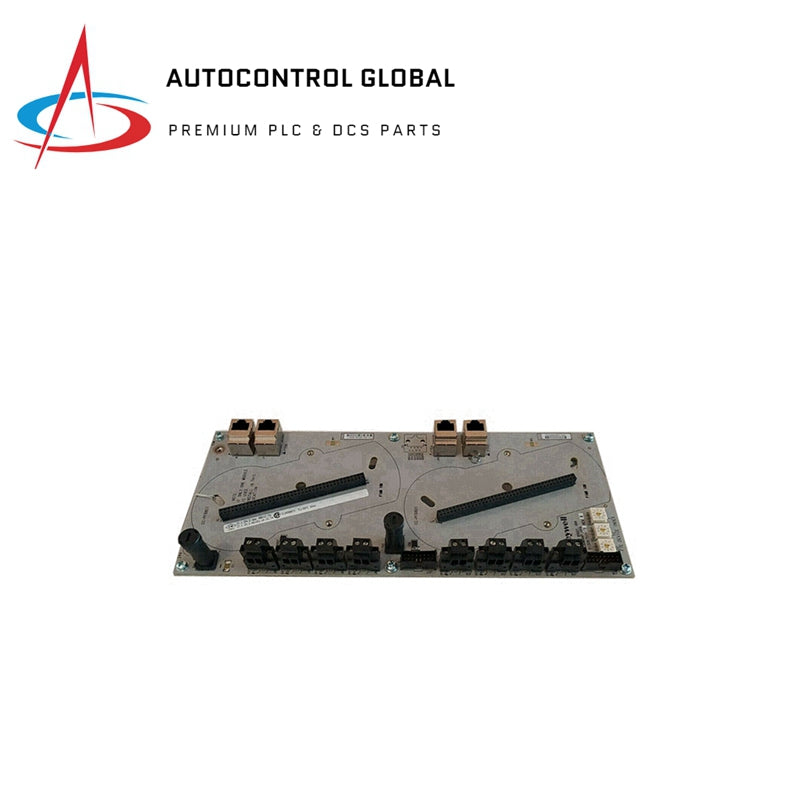

Honeywell CC-PFB801 51410087-176 Fieldbus Interface Module

Description

The CC-PFB801 Fieldbus Interface Module belongs to Honeywell's Experion PKS C300 controller series. The Experion PKS C300 controller serves as the heart of the Experion control system, offering best-in-class process control capabilities and security across various industries. It supports a wide range of process control applications, including continuous and batch processes, and integrates seamlessly with smart field devices. The C300 controller also supports advanced process control and allows users to create custom code for execution within the controller.

Specifications

• Series: C Fieldbus Interface Module (FIM8)
• Model Number: CC-PFB801 (conformally coated)
• Module Type: Series C module
• Physical Interface: H1 FOUNDATION Fieldbus
• Number of H1 Networks per FIM (Each network defined as a FOUNDATION Fieldbus 31.25 kbps H1 network): 8
• Indicators on Module: 24V Power, Module & FTE Status LEDs; Front display panel with module and link state information

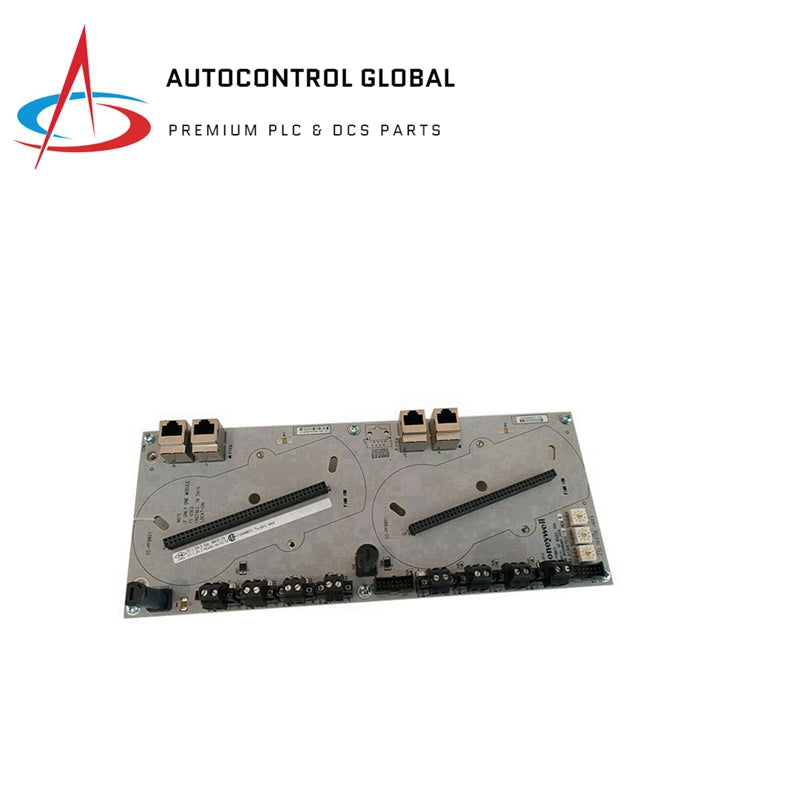

• Indicators on Carrier Board: 8 H1 Link Status LEDs (1 per Link)
• Configurations: Non-redundant or Redundant (side-by-side)
• Maximum Number of Fieldbus Devices per H1 Network: 16
• Available macrocycle periods: 250, 500 ms; 1, 2, 4, 8, 16, and 32 sec
