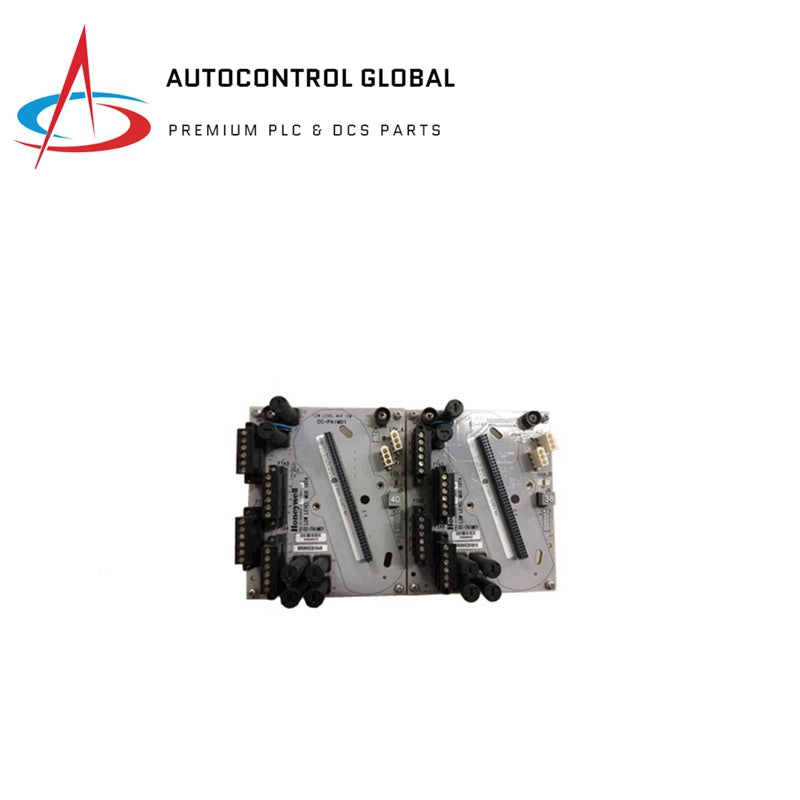

Honeywell CC-TAIM01 51305959-175 Low Level Mux Module

Description

This module is part of Honeywell’s C300 system and is used for processing low-level analog signals, such as those from thermocouples.

Features

• Input Channels: 64 fully-isolated channels.
• Isolation: Offers channel-to-channel, channel-to-PM, and channel-to-power supply common isolation in 16 channel increments.
• Input Scan Rate: Fixed at 1 second by IOM (up to 64 channels/sec max).
• Channel Bandwidth: Ranges from 0 to 4.7 Hz (-3 dB).
• Nominal Input Range (Thermocouple - TC only): -20 to +100 millivolts.
• Maximum Normal Mode Continuous Input (Non-damaging):
  • For any thermocouple type configured: -10 to +10 volts (TC)
  • -1 to +2 Volts @ 100 milliamps (RTD)

Specifications

• Product ID: CC-TAIM01 51305959-175
• Weight: Approximately 0.5 kg
• Origin: USA
