Product Overview

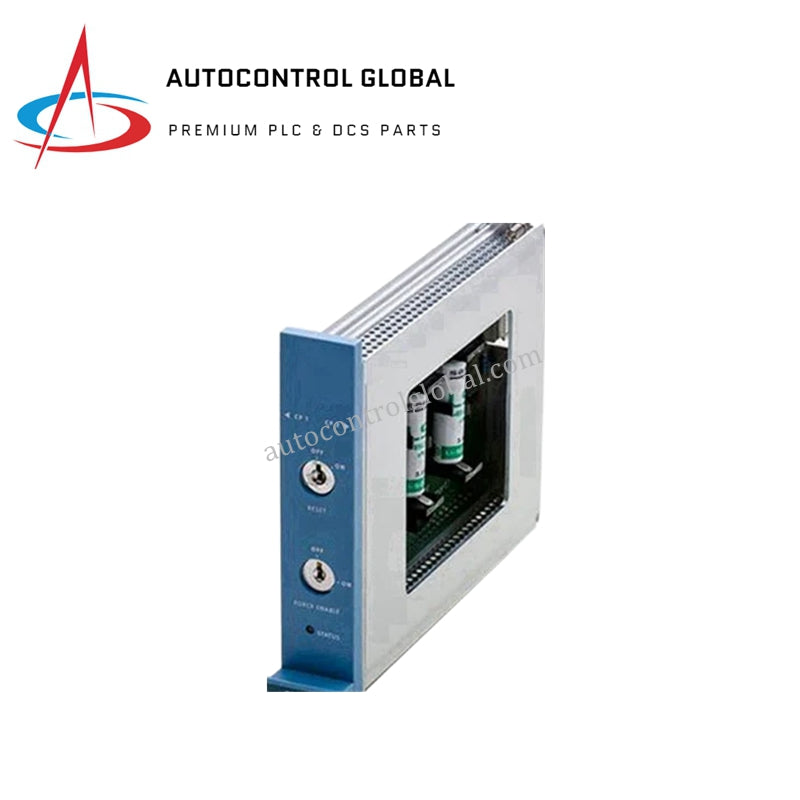

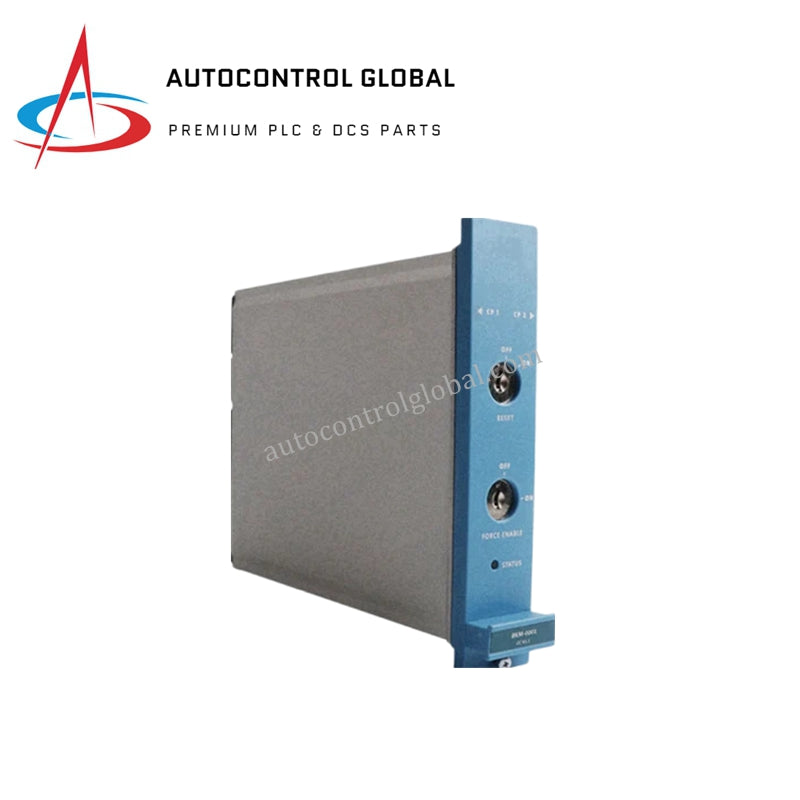

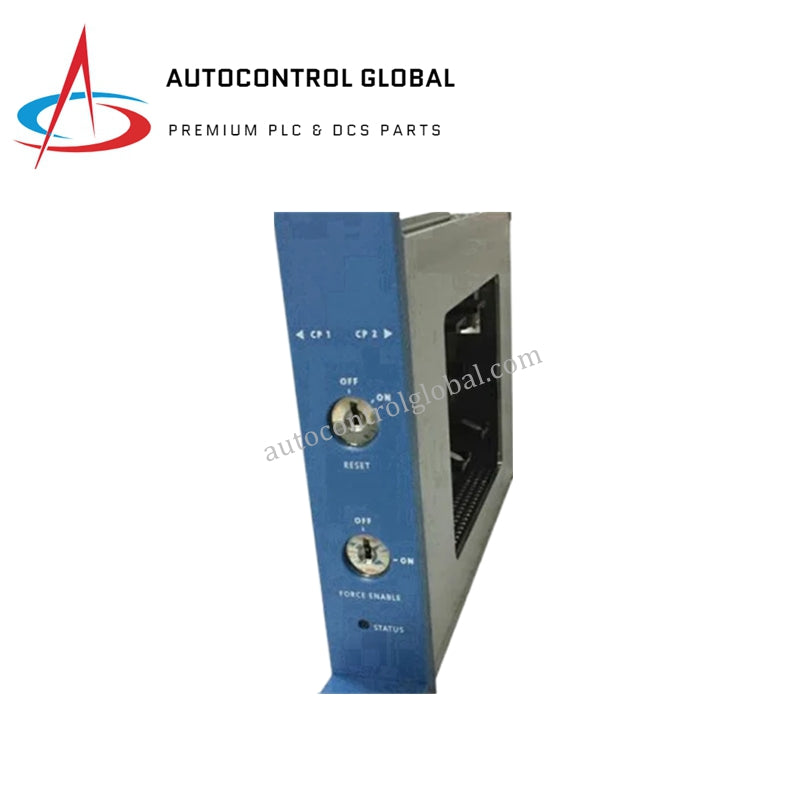

Honeywell FC-BKM-0001
A Battery and Key Switch Module designed for reliable operation in industrial environments. This module provides essential power management and switching functionality, ensuring robust performance across a wide range of temperatures and conditions.

Specification

• Manufacturer: Honeywell
• Product No.: FC-BKM-0001
• Product Type: Battery and Key Switch Module
• Operating Temperature: –5°C—+70°C (+23°F—+158°F)
• Storage Temperature: –40°C—+85°C (–40°F—+185°F)
• Relative Humidity: 10—95% (non-condensing)
• Approvals: CE, TÜV, UL, CSA, FM
• 24 V Supply Voltage: 24 Vdc –15%—+30%
• 24 V Supply Current: max. 20 mA (out of each 24 Vdc), typ. 7 mA (shared load on 24 Vdc)
• 5 VR Supply Voltage: 5 Vdc ± 10%
• 5 VR Supply Current: max. 10 mA
• Output Supply Voltage: 14—31 Vdc
• Output Resistance: approx. 2 × 1.1 kΩ (parallel)
• Short Circuit Proof: Continuous
• Dimensions (H x W x D): 176 × 35.2 × 212 mm
• Weight: 0.5 kg

Feature

• Wide Operating Temperature Range:
  • Operates reliably from –5°C to +70°C, making it suitable for various environmental conditions.
• High Humidity Tolerance:
  • Functions effectively in environments with relative humidity ranging from 10% to 95% (non-condensing).
• Advanced Protection:
  • Equipped with short circuit proof design, ensuring continuous operation even under fault conditions.
• Compact Design:
  • Dimensions of 176 × 35.2 × 212 mm and weight of 0.5 kg make it easy to install and integrate into existing systems.
• Multiple Supply Voltages:
  • Supports both 24 Vdc and 5 Vdc supply voltages with precise current requirements, ensuring compatibility with different systems.
