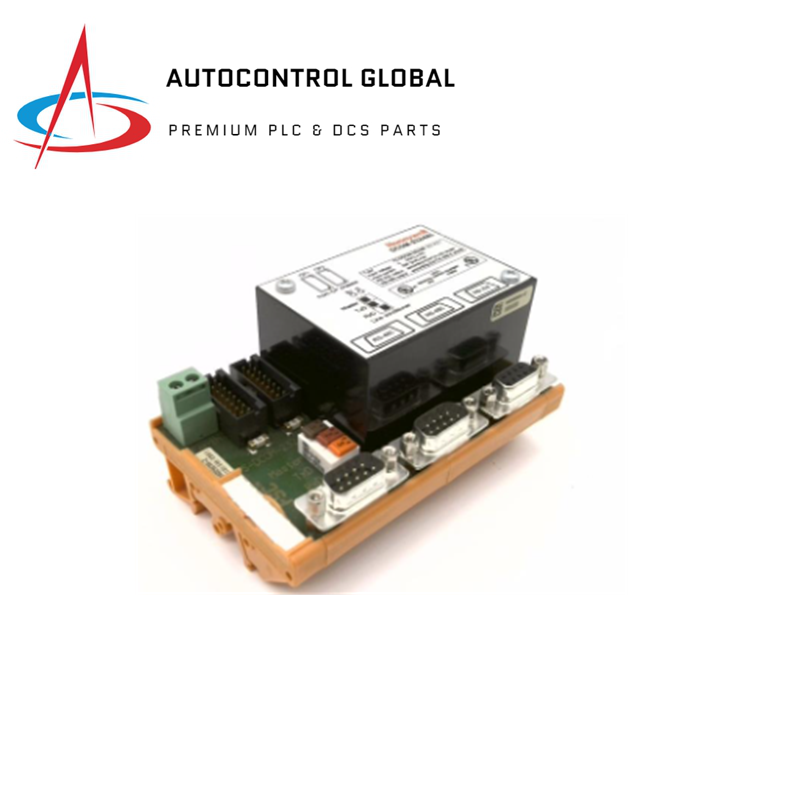

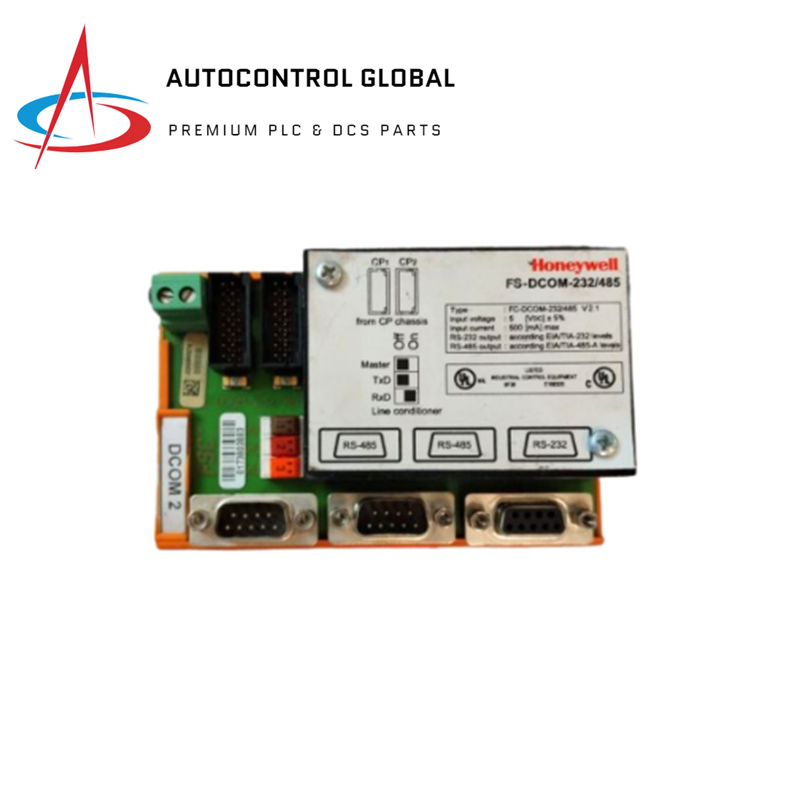

Honeywell FC-DCOM-232/485 Interface Module
Honeywell FC-DCOM-232/485 Interface Module
Honeywell FC-DCOM-232/485 Interface Module
/ 3

Honeywell FC-DCOM-232/485 Interface Module

  • Manufacturer: Honeywell

  • Part Number: FC-DCOM-232/485

  • Condition：New with Original Package

  • Product Type: Interface Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The Honeywell FC-DCOM-232/485 CC V2.1 is a communication interface field termination assembly (FTA) designed for connecting devices using RS232 or RS485 communication protocols. It facilitates the integration of control systems with external communication networks, ensuring reliable and compliant data transmission.

Features

  • Communication Protocols: RS232 and RS485/422
  • DIN Rail Mounting: Compatible with TS32 / TS35 × 7.5 rails
  • Used Rail Length: 11.7 cm (4.6 in)
  • Input Voltage: 5 VDC ±5%
  • Input Current: Max 500 mA (supplied by the Control Processor(s))
  • RS232 Output Levels: According to EIA/TIA-232 standards
  • RS232 Baud Rate: 0—250 kBaud
  • RS485/422 Output Levels: According to EIA/TIA-485-A standards
  • RS485/422 Baud Rate: 0—2 MBaud (supports transparent, FM0, FM1, or Manchester coding)
  • Dimensions (L x W x H): 11 cm x 7 cm x 6.1 cm
  • Shipping Weight: 3 kg
