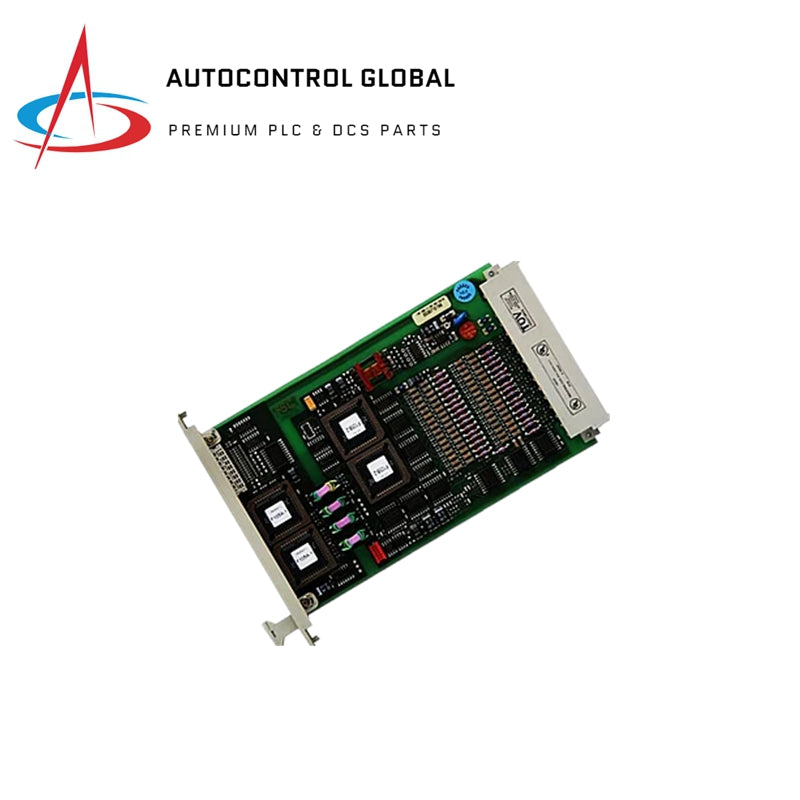

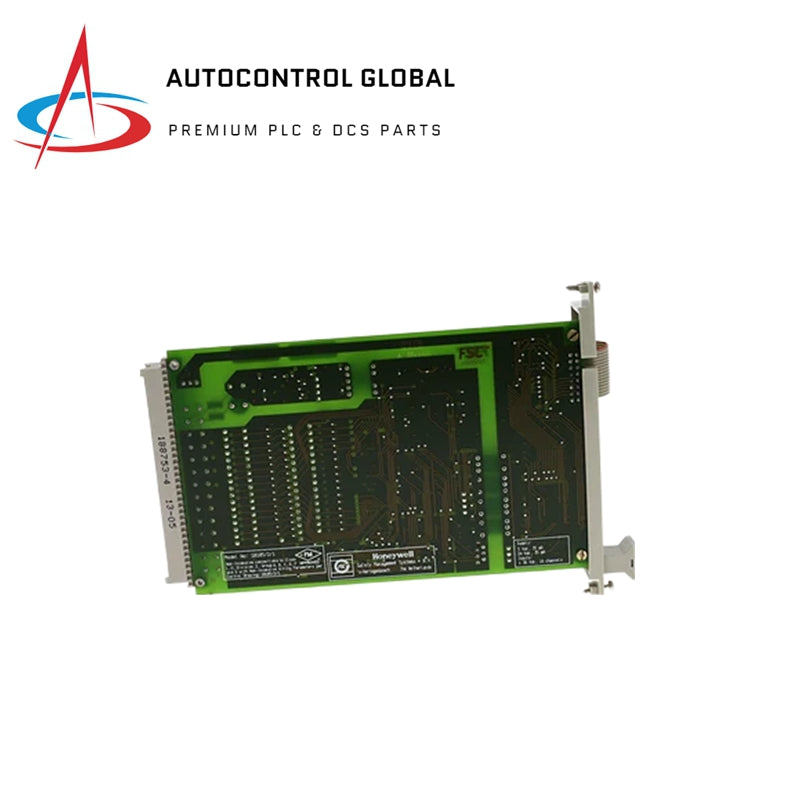

HoneyWell FSC 10105/2/1 Fail Safe High-Density Analog Input Module In Stock

Overview

The Honeywell FSC 10105/2/1 is a high-density analog input module designed with a fail-safe architecture to ensure reliable data acquisition in critical industrial applications. This module stands out for its compact size and wide input range, making it suitable for environments where space is limited but performance requirements are stringent. The fail-safe design adds an extra layer of reliability, ensuring continuous and accurate operation even under fault conditions.

Technical Specifications

• Product Type: Fail-safe high-density analog input module
• Power Requirements:
  • 5 Vdc 35 mA
  • 24 Vdc 35 mA
• Number of Input Channels: 16
• Input Range: 0 to 4.1 V
• Input Resistance: > 1 MΩ
• A/D Converter:
  • Resolution: 12-bit
  • Inaccuracy: ± 1 LSB
• Module Inaccuracy: < 0.25%
• Absolute Max. Input Signal: ± 36 Vdc
• Crosstalk Between Channels: > 60 dB
• External Voltage Readback:
  • Range: 0 to 4.1 V
  • Input Resistance: Typically 1 MΩ
• Dimensions:
  • Height: 1.0" (2.5 cm)
  • Width: 5.0" (12.7 cm)
  • Depth: 8.0" (20.3 cm)
• Weight: 0.2 kg

Features

• High-Density Input Channels: Provides 16 channels in a compact form factor, ideal for systems requiring multiple analog inputs.
• Fail-Safe Design: Ensures reliable operation and data integrity even during faults, crucial for safety-critical applications.
• Wide Input Range: Supports input signals from 0 to 4.1 V, accommodating a variety of sensor outputs.
• High Precision: Equipped with a 12-bit A/D converter and low inaccuracy (< 0.25%), delivering precise measurements.
• Robust Performance: Handles absolute maximum input signals up to ± 36 Vdc, protecting against overvoltage conditions.
• Low Crosstalk: Minimizes interference between channels (> 60 dB), ensuring clean signal acquisition.
• Compact Size: Fits easily into tight spaces without compromising on functionality or performance.
• Reliable External Voltage Readback: Offers a readback range of 0 to 4.1 V with high input resistance, enhancing accuracy.
